Product Details:
|
Material: | Aluminum Alloy | Model: | F6 |
---|---|---|---|
Brand: | Atlas | Inlet Capacity: | 0.36m³/min |
Maximum Working Pressure: | 13 Bar | Rated Power: | 0.22 KW |
Weight: | 30 Kg | Warranty: | 1 Year |
Highlight: | Clean Air Compressed Air Dryers,Safe Production Compressed Air Dryers,30kg Capacity Compressed Air Dryers |

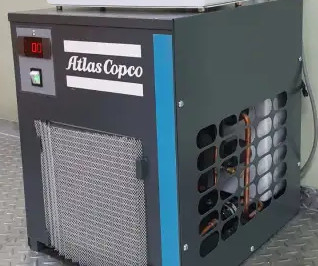

Atlas Cools Compressed Air Dryers F6 Refrigerant Dryer Clean Air
Click to open our catalog:F6-400 wuxi leaflet EN-.pdf
Dry, clean air: reliable, safe production
The Atlas F dryer cools compressed air to remove all moisture:
- Protect your tools
- Safeguard your products
- Minimize maintenance
- Reduce costs
Features & Benefits
Great performance and reliability
• Lower production and product failure rate
• Steady pressure dewpoint
• Quality rotary compressor with low power requirements
• Efficient and reliable 3-1 heat exchanger
• Hot gas bypass valve saves energy
Cost Savings
• Your tools last longer
• Fewer system and tool repairs
• Low maintenance Easy installation and operation
• Plug and play
Easy installation and operation
• Plug and play
• Only one electrical connection
• Digital controller with easy pressure dewpoint display
Environment-Friendly
• Low power consumption
• Low impact R134a/R410a refrigerant
TECHNICAL SPECIFICATIONS
Model | Inlet capacity |
Pressure drop |
Rated Power |
Maximum working pressure |
Dimension(mm) | Weight | Compressed air connections |
||
l/s | bar | kW | bar | L | W | H | kg | ||
F6 | 6 | 0.28 | 0.22 | 13 | 430 | 354 | 463 | 30 | G 3/4" F |
