Product Details:
|
| Material: | Aluminum Alloy | Model: | F-120 |
|---|---|---|---|
| Brand: | Atlas | Inlet Capacity: | 120 L/s |
| Power Consumption@50Hz: | 1125W | Maximum Working Pressure: | 13 Bar |
| High Light: | Atlas Compressed Air Dryers,F120 Compressed Air Dryers,Refrigerant Air Dryers Atlas |
||

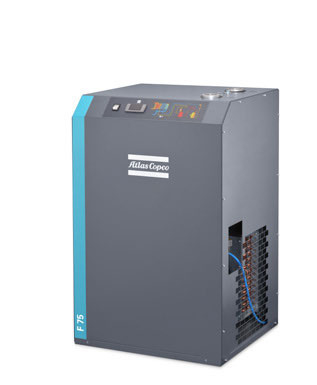

ATLAS COOLS COMPRESSED AIR DRYERS F120 REFRIGERANT DRYER CLEAN AIR
Compressed Air Dryers Cools Refrigerant Dryer F-120
Click to open our catalog:F6-400 wuxi leaflet EN-.pdf
Dry, clean air: reliable, safe production
The Atlas F dryer cools compressed air to remove all moisture:
- Protect your tools
- Safeguard your products
- Minimize maintenance
- Reduce costs
Features & Benefits
Great performance and reliability
• Lower production and product failure rate
• Steady pressure dewpoint
• Quality rotary compressor with low power requirements
• Efficient and reliable 3-1 heat exchanger
• Hot gas bypass valve saves energy
Cost Savings
• Your tools last longer
• Fewer system and tool repairs
• Low maintenance Easy installation and operation
• Plug and play
Easy installation and operation
• Plug and play
• Only one electrical connection
• Digital controller with easy pressure dewpoint display
Environment-Friendly
• Low power consumption
• Low impact R134a/R410a refrigerant
| Model | Inlet capacity |
Pressure drop |
Power consumption @ 50Hz |
Maximum working pressure |
Dimension(mm) | Weight | Compressed air connections |
||
| l/s | bar | W | bar | L | W | H | kg | ||
| F-120 | 120 | 0.10 | 1125 | 13 | 550 | 600 | 980 | 85 | G 2" |
Available in 230V -1 Phase -50Hz and 220V -1 Phase -60Hz versions.
Refrigerant types:
R134a for F 6-35, R410a for F 55-335
Reference conditions:
Ambient temperature: 25 °C
Inlet temperature: 35 °C
Working pressure: 7 bar(g)
Limitations:
Maximum ambient temperature: 45 °C
Minimum ambient temperature: 5 °C
Maximum inlet temperature: 55 °C
Maximum working pressure @ 13 bar
Correction factors:
Correction factors for different ambient temperatures
Ambient temperature °C 25 30 35 40 45
Correction factor 1 0.91 0.81 0.72 0.62
Correction factors for different inlet temperatures
Inlet temperature °C 25 30 35 40 45 50 55
Correction factor 1 1 1 0.82 0.69 0.58 0.45
Correction factors for different inlet pressures
Inlet pressure (bar) 5 6 7 8 9 10
Correction factor 0.9 0.97 1 1.03 1.06 1.08
