Product Details:
|
Material: | Aluminum Alloy | Model: | F-400 |
---|---|---|---|
Inlet Capacity: | 400 | Power@50Hz: | 4200W |
Type: | R134a/ R410a Refrigerant | ||
Highlight: | 4200W Compressed Air Dryers,400l/S Compressed Air Dryers,F400 Atlas Refrigerant Air Dryer |

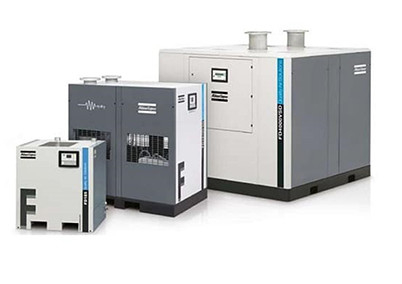

ATLAS COOLS COMPRESSED AIR DRYERS F400 REFRIGERANT DRYER
Compressed Air Dryers Cools Refrigerant Dryer F-400
Click to open our catalog:F6-400 wuxi leaflet EN-.pdf
Dry, clean air: reliable, safe production
The Atlas F dryer cools compressed air to remove all moisture:
- Protect your tools
- Safeguard your products
- Minimize maintenance
- Reduce costs
Features & Benefits
Great performance and reliability
• Lower production and product failure rate
• Steady pressure dewpoint
• Quality rotary compressor with low power requirements
• Efficient and reliable 3-1 heat exchanger
• Hot gas bypass valve saves energy
Cost Savings
• Your tools last longer
• Fewer system and tool repairs
• Low maintenance Easy installation and operation
• Plug and play
Easy installation and operation
• Plug and play
• Only one electrical connection
• Digital controller with easy pressure dewpoint display
Environment-Friendly
• Low power consumption
• Low impact R134a/R410a refrigerant
Model | Inlet capacity |
Pressure drop |
Power consumption @ 50Hz |
Maximum working pressure |
Dimension(mm) | Weight | Compressed air connections |
||
l/s | bar | W | bar | L | W | H | kg | ||
F-400 | 400 | 0.25 | 4200 | 13 | 1025 | 660 | 1120 | 180 | G 2.5" |
Available in 230V -1 Phase -50Hz and 220V -1 Phase -60Hz versions.
Refrigerant types:
R134a for F 6-35, R410a for F 55-335
Reference conditions:
Ambient temperature: 25 °C
Inlet temperature: 35 °C
Working pressure: 7 bar(g)
Limitations:
Maximum ambient temperature: 45 °C
Minimum ambient temperature: 5 °C
Maximum inlet temperature: 55 °C
Maximum working pressure @ 13 bar
