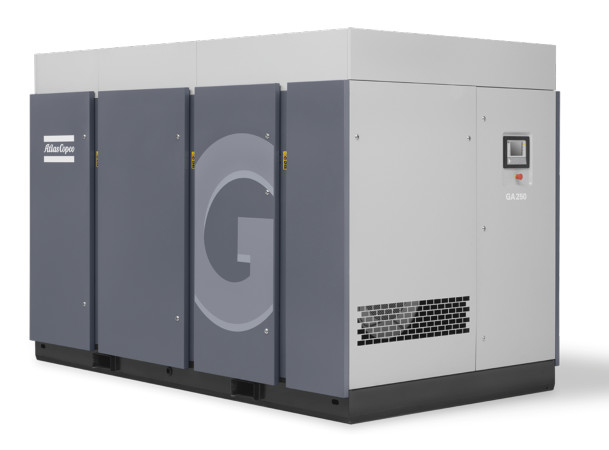

50hz atlas rotary Atlas Screw Air Compressor 200kw Ga200+

I'm Online Chat Now

50hz atlas rotary Atlas Screw Air Compressor 200kw Ga200+

50hz atlas rotary Atlas Screw Air Compressor 200kw Ga200+
50hz atlas rotary Atlas Screw Air Compressor 200kw Ga200+

Large Image :  50hz atlas rotary Atlas Screw Air Compressor 200kw Ga200+

Product Details:
Place of Origin: China
Brand Name: Atlas
Certification: ISO 8573-1 CLASS 0
Model Number: GA+200
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: be negotiated
Packaging Details: Atlas standard packing
Delivery Time: 7~30days
Payment Terms: L/C, T/T, D/A, Western Union, D/P
Supply Ability: 100pcs per month

50hz atlas rotary Atlas Screw Air Compressor 200kw Ga200+

Description
Machine Name: Oil Injected Screw Air Compressor Model: GA200+
Frequency: 50Hz Cooling Module: IP55 Protection
Motor Power: 200kw Working Pressure: 5.5~10 Bar
High Light:

50hz Atlas Rotary Screw Compressor

,

200kw Atlas Rotary Screw Compressor

,

Ga200+ Air Compressor Atlas

OIL-INJECTED ROTARY SCREW ATLAS AIR COMPRESSOR 200KW GA200+ 50HZ

HIGHEST RELIABILITY, LOWEST OPERATING COSTS
The shortest route to maximize your profitability is to minimize your operational cost. As energy consumption is the major factor (up to 70%) of a compressor’s lifecycle cost, the Atlas GA 160 + -250 compressors are designed to help you achieve significant savings. The compressors provide high-quality compressed air to meet your requirements even in the most demanding applications.

Specifications

COMPRESSOR
TYPE
Pressure
variant(bar)
Max. working pressure
WorkPlace
Capacity FAD*Installed motor powerNoise
level**
Weight
WorkPlace
Weight WorkPlace
Full Feature
bar(e)psigl/sm³/mincfmkWdB(A)kgkg
GA 200 +
50Hz
5.55.58074844.8158520078491310831
7.57.510967440.4142820078491310831
8.58.512363237.91339 20078476810512
101014557234.3121220078476810512

Mining industry
• Years of experience with thousands of compressors running around the world.
• High product reliability with maximum uptime even in harsh conditions.
• Strong global support network to provide 24/7 assistance even in remote locations.

Energy industry
• Protect downstream equipment and increase component lifetime.
• Integrated water separator with electronic drain as standard.

Metal industry
• Easy and quick installation, with flexible ducting possibilities.
• A complete, ready-to-use solution including all components and options.
• Low service cost thanks to high accessibility of components and long service intervals.

General industry
• GA compressors are designed for ultimate efficiency in all your industrial applications.
• Ideal for machinery operation, plant maintenance, cleaning, pneumatic tools and controls, sand- and shot-blasting.


Reducing your operating costs
The GA 160 + -250 provide maximum output at the lowest energy consumption. They will reduce your energy bill and your CO 2 emissions. The right core technologies with our experience in design and manufacture combine to produce a solution to match your needs. Generous cooling capacity, low pressure drop and a highly efficient drive train ensure optimum operation over a long lifetime.

50hz atlas rotary Atlas Screw Air Compressor 200kw Ga200+ 0
Ensuring your peace of mind
The GA 160 + -250 optimize uptime by keeping your production running, 24/7. The highly advanced controller ensures optimum operation by controlling all compressor inputs and outputs.

Easy installation and service
Easy to install, the ‘all-in-one’ package includes all necessary equipment. There are no hidden costs, nor any extra devices to install. Ducting is easy for increased flexibility. Service cost is reduced to a minimum: all parts are easily accessible via large opening doors, consumables are long-lasting, and service operations are easy and safe to perform.

Maximizing your profitability
As there is no “one size fits all” concept, we have developed a range of features and options to help you optimize the use of your compressor: from running the machine at high temperatures, to extra safety devices. Our highly skill edengineering team can help you develop a customized
compressor based on your specific needs.


50hz atlas rotary Atlas Screw Air Compressor 200kw Ga200+ 1
High-efficiency motor
• TEFC IP55 motor (Class F insulation B rise) protects against dust and chemicals.
• Continuous operation in ambient temperatures up to 46°C/115°F).


State-of-the-art screw element
• Patented asymmetric rotor profile and meticulous selection of bearings.
• Low wear and tear leads to increased reliability.
• Proven reliability with thousands of installations throughout the world.
Cooling module
• Separated oil and aftercoolers for highest efficiency.
• Axial cooling fans driven by separate TEFC electric motors (IP55 protection).
• Low noise level.
Gear-driven transmission
• Maintenance-free; totally enclosed and protected against dirt and dust.
• Optimal working range of the screw element.
• Bowex coupling to absorb the trust load and increase the reliability.
Service-friendly
• Selection of long lifetime consumables.
• Easy and safe access to all service parts.
• Unique sliding system to access the oil coolers.


Optimized loading/unloading valve
• Ensures constant optimized pressure in the system, resulting in significant energy savings.
• Simple, maintenance-free set-up with few moving parts for highest reliability.
• Accurate control through solenoid valve.
Easy to install
• Oil-containing frame as standard.
• All-in-one package, no hidden costs.
• Flexible ducting possibilities.
Superior air quality
• Integrated water separator with electronic drain removes 100% of condensate.
Superior air intake filter
• Protects the compressor components by removing 99.9% of dirt particles > 3 μm.
• Reduces the dust load in the fine filter, doubling the filter element lifetime without reducing filter efficiency.
Elektronikon ® for advanced monitoring
• Integrated smart algorithms reduce system pressure and energy consumption.
• Monitoring features include warning indications, maintenance scheduling and online visualization of machine’s condition.

50hz atlas rotary Atlas Screw Air Compressor 200kw Ga200+ 2
INCREASE YOUR SAVINGS WITH ENERGY RECOVERY
The Kyoto directives and the continuing depletion of traditional energy sources mean that businesses throughout the world are making commitments to significantly reduce overall energy consumption. Through innovative products and solutions, Atlas helps you achieve your goals in this area. When it comes to compressed air production – where energy costs can constitute 70% of total lifecycle costs–saving energy can also lead to substantial cost savings.
Integrated heat exchanger
Air compression creates heat that is normally wasted in the coolers. Energy recovery systems designed by Atlas enable the recovery of most of this heat. Recovery of energy from the shaft input of the compressor can be up to 94% of the compressor shaft power. The heat is directly usable as a source of energy in the form of hot water (85-90°C/185- 194°F). The main module of the recovery system is built into the compressor. The investment needed to link the hot oil circuit from the compressor to the existing water circuit is relatively modest and the time needed before seeing payback from your investment is generally very short.
Warm air heat recovery
The ducting on your GA compressors also constitutes a simple and smart solution to generate space heating. Ducting simply directs the warmed cooling air to where it is needed – such as workshops, storage warehouses or other facilities. To cope with seasonal changes, louver flaps can be used to vent the warm air to the outside. An installation with motorized and thermostatically controlled louvers is the ideal solution to accurately monitor the temperature with a full control of the flow of heating air.

Applications :
• Heating of facilities, warehouses or workshops.
• Drying air for painting and washing applications.
