Product Details:
|
| Material: | Aluminum Alloy | Model: | JGHQ-10A,JGHQ-20A,JGHQ-30A,JGHQ-50A, |
|---|---|---|---|
| Brand: | YOUQIAO | Flow Capacity: | 1.5 Nm3/min~6.5Nm3/min |
| Compressor Power: | 0.59~1.2KW | Working Pressure: | 6~16 Bar |
| High Light: | Laser Cutting Refrigerated Air Dryer Systems,Skid Mounted Refrigerated Compressed Air Dryer,30bar Refrigerated Compressed Air Dryer |
||

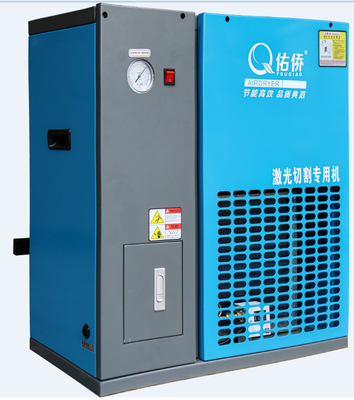

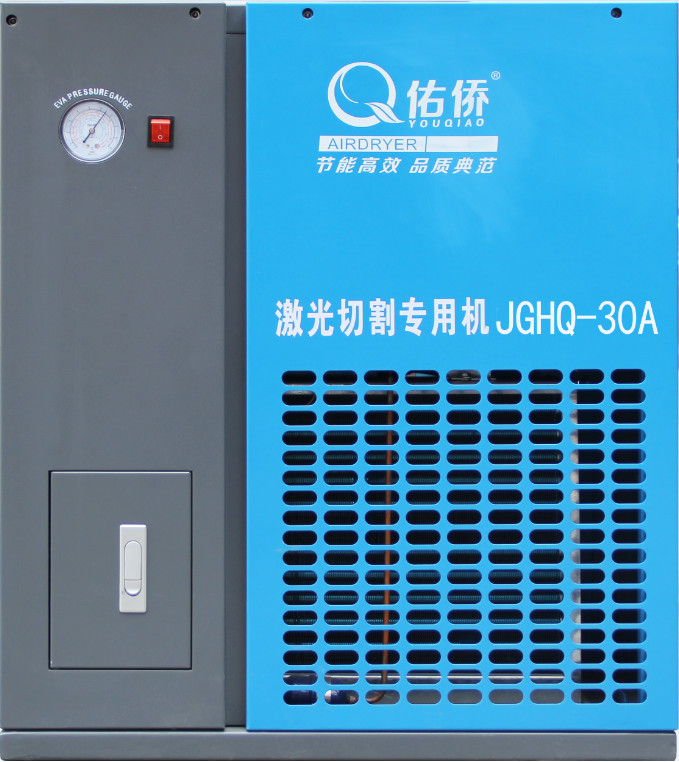

LASER CUTTING SKID MOUNTED REFRIGERATION AIR DRYER 16~30BAR
Dry, clean air: reliable, safe production
- Protect your tools
- Safeguard your products
- Minimize maintenance
- Reduce costs
Features & Benefits
1,The highest inlet pressure can reach 3.0Mpa, completely covering the demand for gas pressure in the laser cutting industry.
2, reserved import and export, pipeline fast docking, plug and play, minimizing installation costs.
3, Stable dew point, high efficiency filtration, strictly ensure the quality of the gas used.
Available in 230V -1 Phase -50Hz and 220V -1 Phase -60Hz versions.
Refrigerant types:
R134a for F 6-35, R410a for F 55-335
Reference conditions:
Ambient temperature: 25 °C
Inlet temperature: 35 °C
Working pressure: 7 bar(g)
Limitations:
Maximum ambient temperature: 45 °C
Minimum ambient temperature: 5 °C
Maximum inlet temperature: 55 °C
Maximum working pressure @ 13 bar
