Product Details:
Place of Origin: China
Brand Name: Atlas
Certification: CE,ISO
Model Number: GA26
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: be negotibled
Packaging Details: Atlas standard packing
Delivery Time: 7-30days
Payment Terms: T/T, Western Union, L/C, D/P, D/A
Supply Ability: 100pcs per month

GA26 Newly Upgraded Monitoring System With Elektronikon Reg Slide Key Screen Controller

Description
Type: Rotary Screw Oil-injected FF Available: Built-in Dry Available
Frequency: 50Hz/60Hz Outlet: G1"
Power Source: Electric Warranty: 1 Year
Material: Aluminium Alloy Cooling System: Air-cooled
Power: 26kw Series: GA Series
Highlight:

Elektronikon reg Slide Key Screen Controller

,

GA26 Monitoring System

,

Newly Upgraded Monitoring System

Oil-injected rotary screw air compressor
GA26

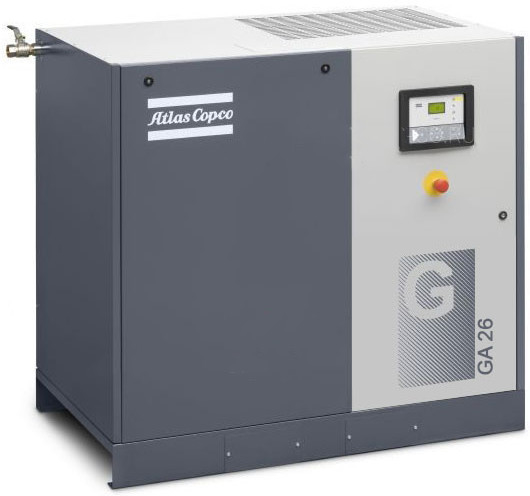

GA 26 Compact economical compressors
• Premium GA quality and optimal serviceability at the lowest initial investment.
• Good-quality, dry air thanks to the integrated dryer.
• Total control and assured efficiency with the Elektronikon® controller.



1.Durable and efficient motor and rotor
- The GA26 features a new rotor and IE2/IE3 high-efficiency motor for durability and efficiency.
- Gear drives are more efficient than belt drives.
- Gear drives are highly reliable and easier to maintain.
GA26 Newly Upgraded Monitoring System With Elektronikon Reg Slide Key Screen Controller 0



2.Newly upgraded monitoring system

- New Elektronikon® Slide Key Screen Controller with built-in intelligent algorithms thatoptimises system pressure and reduces energy consumption.
- Remote start/stop, fault alarm and maintenance reminder.
- Built-in SMARTLINK remote monitoring, mastering the real-time system status.
GA26 Newly Upgraded Monitoring System With Elektronikon Reg Slide Key Screen Controller 1



3.High-tech oil and gas separator

- The new vertical design of the oil-air separator reduces oil residues and avoids oil contamination.
- The optimised volume of the oil/air separator reduces the loss of compressed air during loading and unloading.Compressed air losses during loading and unloading are minimised by the appropriate oil-air separator volume design.
GA26 Newly Upgraded Monitoring System With Elektronikon Reg Slide Key Screen Controller 2



4.Easy Installation

- FF model with built-in dryer, plug and play, avoiding installation trouble.
- Small footprint, easy to install and transport.

5.All-in-one compressed air solution
- Individual cooling fans, high-efficiency coolers and a built-in dryer with a pressure dew point of 5°C.Avoids condensation and corrosion in the pipework.
- The integrated dryer has a non-destructive electronic drain valve to avoid loss of compressed air.
- Optional filters reduce the oil content of compressed air to <0.01ppm.
GA26 Newly Upgraded Monitoring System With Elektronikon Reg Slide Key Screen Controller 3








Options to meet your needs

  GA11-26
Integrated filter Class 1(ONLY FF) ·
Integrated filter Class 2(ONLY FF) ·
High ambient temperature versions(55°C for pack, 50°C for FF) ·
Synthetic oil ·
Elektronik on graphic controller ·
Wooden package ·
Food-grade oil ·
Condensate water separator and auto drain ·
Dryer Bypass -
Field Witness Testing ·
Test report ·
High temperature tropical thermostatic valve ·
 ·:Optional  -:Not available









Technical specifications:



Type Maximum working pressure FAD* Motor power Noise Weight Outlet
Standard FF Standard FF
bar(e) psig bar(e) psig I/s m³/min cfm kW hp dB(A) kg kg
GA26 7.5 7.5 109 7.3 105 72.9 4.37 154.4 26 35 68 500 558 G1"
8.5 8.5 123 8.3 120 68.1 4.09 144.2 26 35 68 500 558 G1"
10.5 105 152 103 149 61.5 3.69 130.3 26 35 68 500 556 G1"
13 13 189 12.8 185 54.7 3.28 115.9 26 35 68 500 554 G1"
16 16 232 15.8 229 49.3 2.96 104.5 26 35 68 500 554 G1"



The pressure dew point of the built-in dryer of GA 26 is: 5°C







Dimenssions:

L: 1225 mm
W: 695 mm
H: 1475 mm


Click to open our catalog:GA 15-26 GA11+-30.pdf
