Product Details:
|
Material: | Aluminum Alloy | Model: | GA 45 |
---|---|---|---|
Power: | 220kw | Brand: | Atlas |
Type: | Oil-injected | System: | SIL Smart Inlet Lock System |
Highlight: | 745kg GA45 Atlas GA Series,745kg 60Hz Atlas GA Series,GA 745kg Atlas GA 45 |

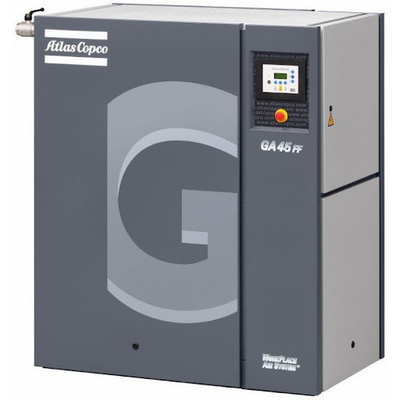

GA 45 60Hz Air Compressor
The ultimate smart solution, driven by efficiency
Atlas ’s GA 30+-90 compressors bring you outstanding sustainability, reliability and performance, while minimizing the total cost of ownership. A choice of three premium compressor types (GA VSD, GA+ and GA) provides you with the compressed air solution that perfectly matches your requirements with clear value propositions. Built to perform even in the harshest environments, these compressors keep your production running efficiently.
GA
Premium compressor
• High performance Free Air Delivery.
• Premium quality at the lowest initial investment. • Integrated refrigerant dryer.
• Standard Elektronikon® controller (optional Touch controller).
GA+
Industry-leading performers
• Industry-leading Free Air Delivery.
• Lowest energy consumption for applications with a stable air demand.
• Low noise emission suitable for workplace installation.
• Integrated refrigerant dryer.
• Smart Elektronikon® Touch controller.
GA VSD
Ultimate energy savers
• On average 35% energy savings.
• Industry-leading operating turndown range.• Wide pressure selection: 4-13 bar.
• Start under system pressure, no blow off.
• Integrated refrigerant dryer.
• In-house designed NEOS inverter.
• Smart Elektronikon® Touch compressor controller serviceability.
A step ahead in monitoring and controls
The new generation Elektronikon® operating system offers a great variety of control and monitoring features that allow you to increase your compressor’s efficiency and reliability. To maximize energy efficiency, the Elektronikon® controls the main drive motor and regulates system pressure within a predefined and narrow pressure band.
SPECIFICATIONS
COMPRESSOR |
Pressure variant |
Max. working pressure |
Capacity FAD* | Installed motor power | Noise level** | Weight WorkPlace |
Weight WorkPlace |
||||||
bar(e) | psig | l/s | m³/min | cfm | kW | hp | dB(A) | kg | lbs | kg | lbs | ||
GA 45 | 100 | 7.4 | 100 | 139 | 8.4 | 295 | 45 | 60 | 745 | 745 | 1639 | 915 | 2013 |
125 | 9.1 | 125 | 130 | 7.8 | 275 | 45 | 60 | 745 | 745 | 1639 | 915 | 2013 | |
150 | 10.8 | 150 | 118 | 7.1 | 250 | 45 | 60 | 745 | 745 | 1639 | 915 | 2013 | |
175 | 12.5 | 175 | 108 | 6.5 | 229 | 45 | 60 | 745 | 745 | 1639 | 915 | 2013 |
