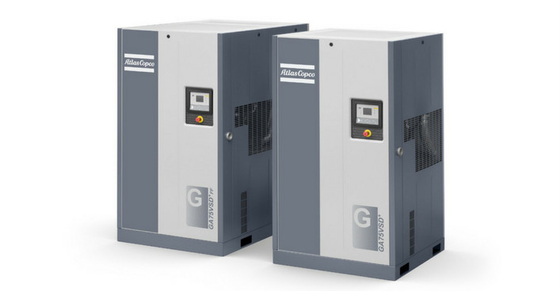

Large Image :  75kW Atlas Screw Air Compressor GA Series GA 75 73dB(A) Noise level ISO 8573-1

Product Details:
Place of Origin: China
Brand Name: Atlas
Certification: ISO 8573-1 CLASS 0
Model Number: GA 75
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: be negotiated
Packaging Details: Atlas standard packing
Delivery Time: 7~30days
Payment Terms: L/C, T/T, D/A, Western Union, D/P
Supply Ability: 100pcs per month

75kW Atlas Screw Air Compressor GA Series GA 75 73dB(A) Noise level ISO 8573-1

Description
Material: Aluminum Alloy Model: GA 75
Power: 220kw Brand: Atlas
Type: Oil-injected System: SIL Smart Inlet Lock System
High Light:

75kW Atlas GA Series

,

GA 75 Atlas GA Series

,

ISO GA 75 Atlas

GA 75 50Hz Air Compressor



The ultimate smart solution, driven by efficiency
Atlas ’s GA 30+-90 compressors bring you outstanding sustainability, reliability and performance, while minimizing the total cost of ownership. A choice of three premium compressor types (GA VSD, GA+ and GA) provides you with the compressed air solution that perfectly matches your requirements with clear value propositions. Built to perform even in the harshest environments, these compressors keep your production running efficiently.
75kW Atlas Screw Air Compressor GA Series GA 75 73dB(A) Noise level ISO 8573-1 0


SPECIFICATIONS

COMPRESSOR

TYPE

Pressure variant

Max. working pressure

WorkPlace

Capacity FAD* Installed motor power Noise level** Weight WorkPlace

Weight WorkPlace

Full Feature

bar(e) psig l/s m³/min cfm kW hp dB(A) kg lbs kg lbs
GA 75 7.5 7.5 109 226 13.6 478 75 100 73 1371 3016 1491 3280
8.5 8.5 123 209 12.5 444 75 100 73 1371 3016 1491 3280
10.5 10.5 145 190 11.4 401 75 100 73 1371 3016 1491 3280
13 13 189 162 9.7 344 75 100 73 1371 3016 1491 3280





Why dry your compressed air?
Untreated compressed air contains moisture, aerosols and dirt particles that can damage your air system and contaminate your end product, resulting in risk of corrosion and compressed air system leaks. Maintenance costs can far exceed air treatment costs. An air dryer is therefore essential to protect your systems and processes. The GA, GA+ and GA VSD compressors have an integrated dryer option to secure your peace of mind.







Integrated dry air
• Optimized sizing for the compressor, avoiding excessive energy consumption. • Fit for your application.
• Controlled and monitored by the Elektronikon®.
• Space-saving all-in-one solution with low installation costs.







WorkPlace:
Compressed air at the point of use

With the industry-leading low noise operation and integration of air and condensate treatment equipment, the GA+ offers complete versatility for your production. The compressor’s integrated design allows it to be placed on the production floor, creating substantial energy savings for
your business.



75kW Atlas Screw Air Compressor GA Series GA 75 73dB(A) Noise level ISO 8573-1 1
