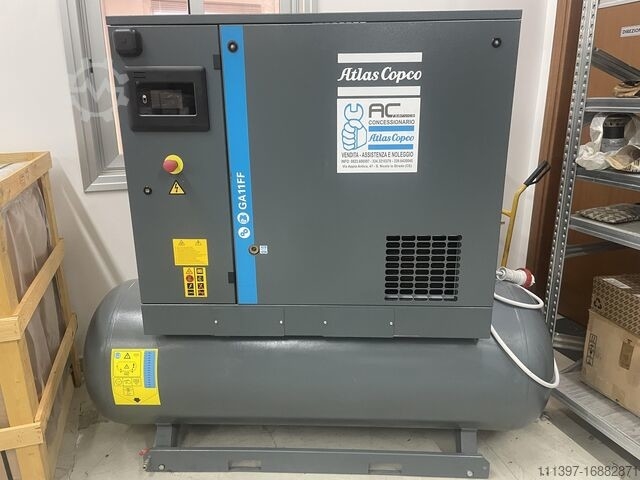

Atlas Copco Air Compressor GA Series GA11

I'm Online Chat Now

Atlas Copco Air Compressor GA Series GA11

Atlas Copco Air Compressor GA Series GA11
Atlas Copco Air Compressor GA Series GA11

Large Image :  Atlas Copco Air Compressor GA Series GA11

Product Details:
Place of Origin: China
Brand Name: Atlas
Certification: CE,ISO
Model Number: GA11
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: be negotibled
Packaging Details: Atlas standard packing
Delivery Time: 7-30days
Payment Terms: T/T, Western Union, L/C, D/P, D/A
Supply Ability: 100pcs per month

Atlas Copco Air Compressor GA Series GA11

Description
Type: Rotary Screw Oil-injected Power: 11kw
Warranty: 1 Year FF Available: Built-in Dry Available
Frequency: 50Hz/60Hz Material: Aluminum Alloy
Cooling System: Air-cooled Outlet: G1"
Highlight:

Atlas Copco Air Compressor

,

Atlas Copco GA11 Air Compressor

,

GA11 Air Compressor

Oil-injected rotary screw air compressor
GA11



Provide stable and reliable compressed air
GA 11: Compact compressed air system
• Low initial investment, high quality and convenient service
• Integrated dryer (FF model) for dry and clean compressed air
• Elektronikon® slider controller for efficient control



1.Durable and efficient motor and rotor
- The GA11-26 features a new rotor and IE2/IE3 high-efficiency motor for durability and efficiency.
- Gear drives are more efficient than belt drives.
- Gear drives are highly reliable and easier to maintain.
Atlas Copco Air Compressor GA Series GA11 0



2.Newly upgraded monitoring system

- New Elektronikon® Slide Key Screen Controller with built-in intelligent algorithms thatoptimises system pressure and reduces energy consumption.
- Remote start/stop, fault alarm and maintenance reminder.
- Built-in SMARTLINK remote monitoring, mastering the real-time system status.
Atlas Copco Air Compressor GA Series GA11 1



3.Easy Installation

- FF model with built-in dryer, plug and play, avoiding installation trouble.
- Small footprint, easy to install and transport.

4.All-in-one compressed air solution
- Individual cooling fans, high-efficiency coolers and a built-in dryer with a pressure dew point of 5°C.Avoids condensation and corrosion in the pipework.
- The integrated dryer has a non-destructive electronic drain valve to avoid loss of compressed air.
- Optional filters reduce the oil content of compressed air to <0.01ppm.
Atlas Copco Air Compressor GA Series GA11 2


5.High-tech oil and gas separator

- The new vertical design of the oil-air separator reduces oil residues and avoids oil contamination.
- The optimised volume of the oil/air separator reduces the loss of compressed air during loading and unloading.Compressed air losses during loading and unloading are minimised by the appropriate oil-air separator volume design.
Atlas Copco Air Compressor GA Series GA11 3







Options to meet your needs

  GA11-26
Integrated filter Class 1(ONLY FF) ·
Integrated filter Class 2(ONLY FF) ·
High ambient temperature versions(55°C for pack, 50°C for FF) ·
Synthetic oil ·
Elektronik on graphic controller ·
Wooden package ·
Food-grade oil ·
Condensate water separator and auto drain ·
Dryer Bypass -
Field Witness Testing ·
Test report ·
High temperature tropical thermostatic valve ·
 ·:Optional  -:Not available









Technical specifications:



Type Maximum working pressure FAD* Motor power Noise Weight Outlet
Standard FF Standard FF
bar(e) psig bar(e) psig I/s m³/min cfm kW hp dB(A) kg kg
GA11 7.5 7.5 109 7.3 105 34.2 2.05 72.4 11 15 68 416 469 G1
8.5 8.5 123 83 120 32.0 1.92 67.8 11 15 68 416 469 G1"
10.5 10.5 152 103 149 25.8 1.55 54.7 11 15 68 416 467 G1"
13 13 189 12.8 185 22.0 1.32 46.6 11 15 68 416 465 G1"
16 16 232 15.8 229 19.2 1.15 40.6 11 15 68 416 497 G1"







Dimenssions:

L: 1225 mm
W: 695 mm
H: 1475 mm


Click to open our catalog:GA 15-26 GA11+-30.pdf
