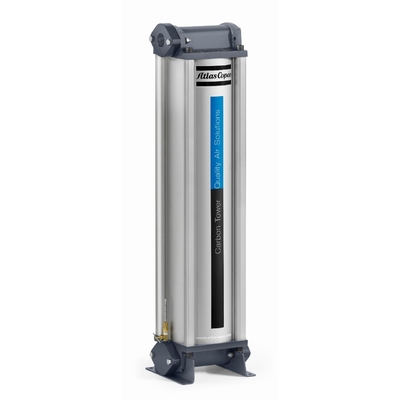

Large Image :  Enhance Your Systems With Atlas Copco S Compressed Air Filters QDT 60

Product Details:
Place of Origin: China
Brand Name: Atlas
Certification: CE,ISO
Model Number: QDT 60
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: be negotiabled
Packaging Details: Atlas standard packing
Delivery Time: 7-30days
Payment Terms: T/T, Western Union, L/C, D/P, D/A
Supply Ability: 100pcs per month

Enhance Your Systems With Atlas Copco S Compressed Air Filters QDT 60

Description
Capacity: 60 L/s Working Pressure: 1-16bar
Connection: Screw Thread Port Size: 1 Inch
Application: Compressor Parts Material: Aluminum
Warranty: 1 Year Bowl Material: Polycarbonate
Highlight:

Atlas Copco Compressed Air Filters

,

Atlas Copco s Compressed Air Filters

,

QDT 60 Compressed Air Filters

Atlas Compressed Air Filters

QDT 60



Click to open our catalog:Filters+antwerp+leaflet+EN+2935093245+20210602.pdf...







Unsurpassed filtration quality


In-house expertise
Because filtration is so important, Atlas Copco’s dedicated engineering team works in close collaboration with universities, regulatory authorities
and premium filter material suppliers. Our scientists and engineers are therefore knowledgeable on the latest advances and innovations in the industry.
Every step of the engineering process is meticulously executed, from basic research to prototype designs and end-of-life analysis.



Engineered and built in Europe
Our entire filter range is designed and produced in Atlas Copco’s European facilities, using state-of-the art production lines and quality controls.
This geographic proximity allows us to keep R&D,engineering, production, and testing close together and streamline their collaboration.



Enhance Your Systems With Atlas Copco S Compressed Air Filters QDT 60 0

Atlas Copco’s filters are certified to meet the following ISO standards:
• ISO 8573-1:2010: Compressed air - Contaminants and purity classes
• ISO 8573-2:2018: Compressed air - Test method for oil aerosol content
• ISO 8573-4:2019: Compressed air - Test method for particles
• ISO 8573-5: 2001: Compressed air - Test method for oil vapor and organic solvent content
• ISO 12500-1:2007: Filters for compressed air - Test methods - Oil aerosols
• ISO 12500-2:2007: Filters for compressed air - Test methods - Oil vapors
• ISO 12500-3:2009: Filters for compressed air - Test methods - Particulates







QDT Series:

Activated carbon towers for optimal oil vapor filtration
The high-efficiency activated carbon tower is capable of removing hydrocarbons, odors and oil vapor from compressed air. The activated carbon will, through adsorption, reduce the residual oil content to lower than 0.003 mg/m³. The pressure drop is low and stays minimal during the filter’s lifetime.



Your benefits:
Low pressure drop - Optimal internal flow path.
High reliability - The QDT’s robust design and rigorous quality control of the activated carbon optimize filter reliability.
Long service intervals - The high volume of activated carbon material ensures a long lifetime, even in very harsh working conditions.

Maximum oil vapor removal - Superb activated carbon material.





Technical Parameters:



Type Working pressure Reference working condition processing flow Maximum temperature (ambient/intake air) Dimensions Weight Inlet/Outlet
A B C
bar I/s m³/min °C mm mm mm kg Inch
QDT60 1-16 60 3.60 66/66 840 223 190 18 G1"





UD+ & QDT: the winning combination

The Atlas Copco UD+ - QDT filter train meets the requirements of air purity class 1 for total oil, according to ISO 8573-1:2010, in a typical compressed air installation:

UD+ QDT
Liquid oil & oil aerosol removal Liquid oil & oil aerosol removal
Guaranteed 0.0009 mg/m³ aerosol and liquid Guaranteed 0.003 mg/m³ vapor
40% pressure drop reduction compared to DD+/PD+ 40% pressure drop reduction compared to DD+/PD+
50% footprint reduction 50% footprint reduction
