Two In One Compressed Air Filters UD+Series Atlas 16 bar Oil Coalescing

Description
Material: Aluminum Alloy Model: UD+ Series
Brand: Atlas Design: Cast Design
Nominal Capacity: 9~8000 L/s Maximum Pressure: 16 Bar
High Light:

16Bar Compressed Air Filters

,

UD+ Compressed Air Filters

,

Two In One Atlas UD+

Atlas Ud+Series Compressed Air Filters High Performance Two-In-One Oil Coalescing Filters



Two-in-one oil coalescing filters with supreme energy savings

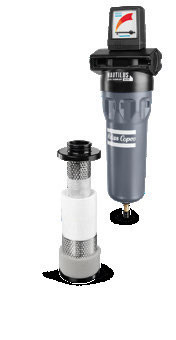

UD+ filters efficiently reduce oil aerosol, wet dust and water drops in your compressed air stream to protect your investment, equipment and processes. The UD+ combines two filtration steps (DD+ and PD+) into one, a unique technology to meet the high-quality requirements of diverse applications and provide ultimate energy savings.

Two In One Compressed Air Filters UD+Series Atlas 16 bar Oil Coalescing 0Two In One Compressed Air Filters UD+Series Atlas 16 bar Oil Coalescing 1Two In One Compressed Air Filters UD+Series Atlas 16 bar Oil Coalescing 2

YOUR BENEFITS

40% energy savings
A 40% lower pressure drop than the conventional filter combination results in 40% higher energy efficiency.
Pure air
Air purity is equal to that obtained using two filters in line, thanks to the thick filter package of UD+ filters.
Save space
The two-in-one filtration concept reduces installation space and complexity, making UD+ filters particularly suitable for applications where space is at a premium.
Save money
Install UD+ filters to enjoy significant cost savings compared

Two In One Compressed Air Filters UD+Series Atlas 16 bar Oil Coalescing 3



Performance

                                                                       UD+
Contaminant                                          Oil aerosol/wet dust
Test method                                ISO 8573-2:2007, ISO 12500-1:2007
Maximum oil carry-over (mg/m³)*                 0.0009
Wet pressure drop (mbar)                               245
Element service                         After 4,000 operating hours or 1 year
Precede with                                         Water separation


* Inlet oil concentration = 10 mg/m³. Oil = oil aerosol and liquid.



Two In One Compressed Air Filters UD+Series Atlas 16 bar Oil Coalescing 4

Two In One Compressed Air Filters UD+Series Atlas 16 bar Oil Coalescing 5

Correction factors  Two In One Compressed Air Filters UD+Series Atlas 16 bar Oil Coalescing 6
Inlet pressure (bar)  1 2 3 4 5 6 7 8 10 12 14 16
Inlet pressure (psig) 15 29 44 58 72.5 87 102 116 145 174 203 232
Correction factor     0.38 0.53 0.65 0.75 0.83 0.92 1.00 1.06 1.20 1.31 1.41 1.50

Example
• Working pressure 3 bar(g), compressed air flow 35 l/s.
• Multiply the nominal capacity of the selected filter with the corresponding correction factor at the required working pressure to obtain the capacity at working pressure:
- Size 45+: 45 l/s * 0.65 = 29 l/s => the 45+ filter size is not large enough.
- Size 60+: 60 l/s * 0.65 = 39 l/s => the 60+ filter size is the size to select.



Options
• Filter connection kit for easy mounting in series (9-550 l/s).
• Wall mounting kit simplifies installation (9-550 l/s).
• Quick coupling connects the filter with a drain or oil/water separator.
• Voltage-free contact mounted in the differential pressure gauge, to give remote indication of cartridge replacement.
• EWD electronic drain with no loss of compressed air and an alarm function (EWD is optional on size 9 + - 550 + , 850 + T and 1100 + T; standard on size 550 + F and larger).


Certification
• ISO 8573-2:2007
• ISO 12500-1:2007
