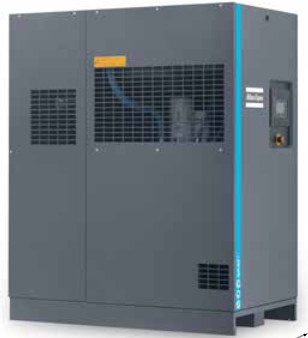

Atlas Copco Air Compressor GA11+-30 Series The Best Choice For Fixed Frequency Air Compressors

Atlas Copco Air Compressor GA11+-30 Series The Best Choice For Fixed Frequency Air Compressors
Atlas Copco Air Compressor GA11+-30 Series The Best Choice For Fixed Frequency Air Compressors
Atlas Copco Air Compressor GA11+-30 Series The Best Choice For Fixed Frequency Air Compressors Atlas Copco Air Compressor GA11+-30 Series The Best Choice For Fixed Frequency Air Compressors Atlas Copco Air Compressor GA11+-30 Series The Best Choice For Fixed Frequency Air Compressors Atlas Copco Air Compressor GA11+-30 Series The Best Choice For Fixed Frequency Air Compressors

Large Image :  Atlas Copco Air Compressor GA11+-30 Series The Best Choice For Fixed Frequency Air Compressors

Product Details:
Place of Origin: China
Brand Name: Atlas
Certification: CE,ISO
Model Number: GA 11+-30
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: be negotibled
Packaging Details: Atlas standard packing
Delivery Time: 7-30days
Payment Terms: T/T, Western Union, L/C, D/P, D/A
Supply Ability: 100pcs per month
Contact Now

Atlas Copco Air Compressor GA11+-30 Series The Best Choice For Fixed Frequency Air Compressors

Description
Noise Level: 67-70 DB Warranty: 1 Year
Power: 11-30kw Capacity: 1.45-5.6 M³/min
Model: GA 11+-30 Outlet: G1"
Type: Rotary Screw Oil-injected FF Available: Built-in Dry Available
Highlight:

GA11+-30 Atlas Copco air compressor

,

Fixed Frequency Atlas Copco air compressor

Oil-injected rotary screw air compressor
GA11+-30


Reliable Fixed Frequency Air Compressor
With outstanding efficiency, high performance, high reliability and advanced monitoring system, the newly upgraded GA11+-30 series is the best among fixed frequency air compressors.
In addition, the GA11+-30 is available with a variety of options to customise the model to your specific needs, meeting all your fixed frequency air compressor requirements.

1.Efficient motors and drive systems
- With Atlas Copco's core drive chain and high-efficiency gearboxes, they can be Highly reliable
- Equipped with high efficiency IE3/IE4 motors and motor bearings lubricated with grease for life. Newly upgraded, the exhaust capacity is greatly improved.
- Newly upgraded, the exhaust capacity is greatly improved, basically meeting the GB19153-2019 Grade 1 energy efficiency*.

Atlas Copco Air Compressor GA11+-30 Series The Best Choice For Fixed Frequency Air Compressors 0



2.The new design of longer life of the electronic control cabinet
- Electronic control cabinet forced cooling to further reduce the temperature in the cabinet, thus improving the electrical components life.
3.Newly upgraded touch screen monitoring system
- The new Elektronikon® touch screen with built-in intelligent algorithms for optimising system pressure and reduced energy consumption.
- Remote start/stop, alarm output, maintenance schedule, network diagnostics.
- Built-in SMARTLINK remote monitoring for real-time system status.
- Option to control multiple machines (2, 4, 6)
Atlas Copco Air Compressor GA11+-30 Series The Best Choice For Fixed Frequency Air Compressors 1

4.Complete compressed air solutions
- Built-in dryer with counter-flow heat exchanger, built-in water separator and the ability to the dryer can be regulated according to the compressor load.
- Individual cooling fans, high-efficiency coolers, and built-in dryer with 3°C pressure dew point, prevent condensate in the network and corrosion in the pipework.
- The water separator in the aftercooler allows for basic water removal, and an electronic drain valve is fitted as standard for automatic drainage and reduced compressed air losses.
- Optionally available filters reduce the oil content of the compressed air to <0.01ppm.
Atlas Copco Air Compressor GA11+-30 Series The Best Choice For Fixed Frequency Air Compressors 2
5.Innovative fan
- New technological innovation to reduce fan power consumption and effectively control noise





Options to meet your needs



  GA11+-30
Integrated filter Class 1(ONLY FF) ·
Integrated filter Class 2(ONLY FF) ·
High ambient temperature versions(55°C for pack, 50°C for FF) ·
Synthetic oil ·
Elektronik on graphic controller √
Wooden package ·
Food-grade oil ·
Condensate water separator and auto drain √
Dryer Bypass ·
Field Witness Testing ·
Test report ·
High temperature tropical thermostatic valve -
IE4 motor(For GA11+ to GA18+) ·

Optional for GA 30

√:Standard ·:Optional -:Not available







Technical specifications



Type Maximum working pressure FAD* Motor power Noise Weight Outlet
Standard FF Standard FF
bar(e) psig bar(e) psig l/s m*/min cfm kW hp dB(A) kg kg
GA11+ 7.5 7.5 109 7.3 105 37.2 2.23 78.8 11 15 68 467 507 G1"
8.5 8.5 123 8.3 120 34.2 2.05 72.4 11 15 68 467 507 G1"
10.5 10.5 152 10.3 149 29.3 1.76 622 11 15 68 467 507 G1"
13 13 189 12.8 185 24.2 1.45 51.2 11 15 68 467 507 G1"
GA15+ 7.5 7.5 109 7.3 105 47.3 2.84 100.3 15 20 69 478 534 G1"
8.5 8.5 123 8.3 120 44.7 2.68 94.6 15 20 69 478 534 G1"
10.5 10.5 152 10.3 149 38.0 2.28 80.5 15 20 69 478 534 G1"
13 13 189 12.8 185 32.7 1.96 69.2 15 20 69 478 534 G1"
GA18+ 7.5 7.5 109 7.3 105 57.2 3.43 121.1 18.5 25 69 480 536 G1"
8.5 8.5 123 8.3 120 52.3 3.14 110.9 18.5 25 69 480 536 G1"
10.5 10.5 152 10.3 149 47.0 2.82 99.6 18.5 25 69 480 536 G1"
13 13 189 12.8 185 38.5 2.31 81.6 18.5 25 69 480 536 G1"
GA22+ 7.5 7.5 109 7.3 105 73.5 4.41 155.7 22 30 67 539 597 G1"
8.5 8.5 123 8.3 120 69.3 4.16 146.9 22 30 67 539 597 G1"
10.5 10.5 152 10.3 149 61.5 3.69 130.3 22 30 67 539 597 G1"
13 13 189 12.8 185 54.2 3.25 114.8 22 30 67 539 597 G1"
GA26+ 7.5 7.5 109 7.3 105 85.7 5.14 181.5 26 35 68 571 629 G1"
8.5 8.5 123 8.3 120 820 4.92 173.7 26 35 68 571 629 G1"
10.5 10.5 152 10.3 149 76.5 4.59 162.0 26 35 68 571 629 G1"
13 13 189 12.8 185 664 3.98 140.6 26 35 68 571 629 G1"
GA30+ 7.5 7.5 109 7.3 105 93.3 5.60 197.8 30 40 70 579 634 G1"
8.5 8.5 123 8.3 120 88.0 5.28 186.5 30 40 70 579 634 G1"
10.5 10.5 152 10.3 149 81.0 4.86 171.6 30 40 70 579 634 G1"
13 13 189 12.8 185 65.5 3.93 138.8 30 40 70 579 634 G1"







Deminssions:

H: 1590 mm
L: 1267 mm
W: 790 mm
