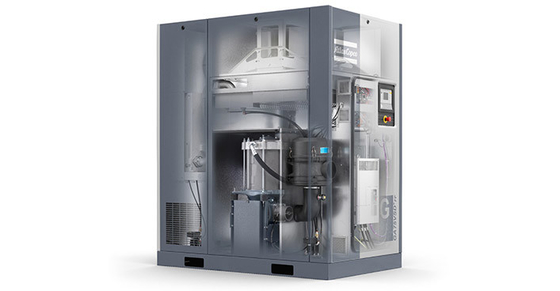

Atlas Screw Air Compressor GA Series 75 The Best Choice for Your Compressed Air System

I'm Online Chat Now

Atlas Screw Air Compressor GA Series 75 The Best Choice for Your Compressed Air System

Atlas Screw Air Compressor GA Series 75  The Best Choice for Your Compressed Air System
Atlas Screw Air Compressor GA Series 75  The Best Choice for Your Compressed Air System

Large Image :  Atlas Screw Air Compressor GA Series 75 The Best Choice for Your Compressed Air System

Product Details:
Place of Origin: China
Brand Name: Atlas
Certification: ISO 8573-1 CLASS 0
Model Number: GA 75
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: be negotiated
Packaging Details: Atlas standard packing
Delivery Time: 7~30days
Payment Terms: L/C, T/T, D/A, Western Union, D/P
Supply Ability: 100pcs per month

Atlas Screw Air Compressor GA Series 75 The Best Choice for Your Compressed Air System

Description
Material: Aluminum Alloy Model: GA 75
Power: 220kw Brand: Atlas
Type: Oil-injected System: SIL Smart Inlet Lock System
High Light:

GA 75 Atlas GA Series

,

60Hz Atlas GA Series

,

75kW Atlas GA 75



GA 75 60Hz Air Compressor




Why dry your compressed air?
Untreated compressed air contains moisture, aerosols and dirt particles that can damage your air system and contaminate your end product, resulting in risk of corrosion and compressed air system leaks. Maintenance costs can far exceed air treatment costs. An air dryer is therefore essential to protect your systems and processes. The GA, GA+ and GA VSD compressors have an integrated dryer option to secure your peace of mind.



Atlas Screw Air Compressor GA Series 75  The Best Choice for Your Compressed Air System 0





Integrated dry air
• Optimized sizing for the compressor, avoiding excessive energy consumption.

• Fit for your application.
• Controlled and monitored by the Elektronikon®.
• Space-saving all-in-one solution with low installation costs.





Lowest lifecycle costs and peace of mind
• No extra installation costs.
• Saving floor space.
• Use of energy-efficient, environmentally friendly refrigerant R410Areduces operating costs and stands for zero ozone depletion.

• Heat exchanger cross-flow technology with low pressure drop,saving energy and costs.
• Zero waste of compressed air thanks to no-loss condensate drain.
• Advanced control functions ensure dry air under all circumstances and prevent freezing at low load.
• Pressure dew point of 3°C (100% relative humidity at 20°C).





SPECIFICATIONS

COMPRESSOR
TYPE
Pressure variant Max. working pressure
WorkPlace
Capacity FAD* Installed motor power Noise level** Weight WorkPlace Weight WorkPlace
Full Feature
bar(e) psig l/s m³/min cfm kW hp dB(A) kg lbs kg lbs
GA 75 100 7.4 100 224 13.4 475 75 100 73 1371 3016 1491 3280
125 9.1 125 200 12.0 424 75 100 73 1371 3016 1491 3280
150 10.8 150 189 11.3 400 75 100 73 1371 3016 1491 3280
175 12.5 175 169 10.1 358 75 100 73 1371 3016 1491 3280
