Product Details:
|
| Material: | Aluminum Alloy | Model: | GA 37 |
|---|---|---|---|
| Power: | 220kw | Brand: | Atlas |
| Type: | Oil-injected | System: | SIL Smart Inlet Lock System |
| Highlight: | 37kW Atlas GA37,Oil Injected Atlas GA37,Atlas GA 37 Air Compressor |
||

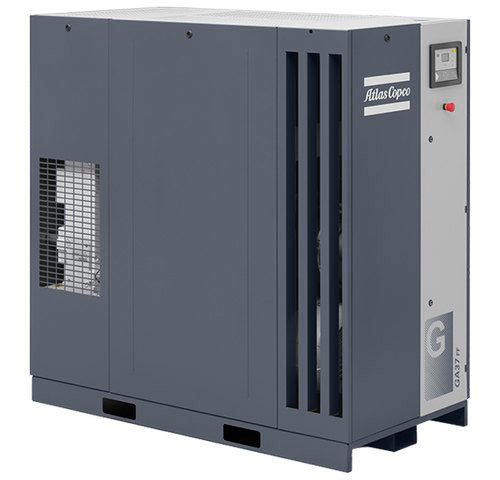

GA 37 50Hz Air Compressor
High reliability and smart energy
GA 30+ & GA 37/45
1. Maintenance-free drive system
• 100% maintenance-free; totally enclosed and protected against dirt and dust.
• Suitable for harsh environments.
• High-efficiency drive arrangement; no coupling or slippage losses.
• Standard up to 46°C/115°F and for high ambient version 55°C/131°F.
2. IE3 Premium Efficiency electrical motors
• IP55, insulation Class F, B rise.
• Non-drive side bearing greased for life.
• Oil lubricated drive side bearings.
3. Robust spin-on oil filter
• High-efficiency, removing 300% smaller particles than a conventional filter.
• Integrated bypass valve with the oil filter.
4. Separate oversized oil cooler and aftercooler
• Low element outlet temperatures, ensuring long oil lifetime:• Removal of nearly 100% condensate by mechanical separator.
• No consumables.
• Eliminates possibility of thermal shocks in coolers.
5. Advanced control & monitoring via Elektronikon®
• Integrated smart algorithms reduce system pressure and energy consumption.
• Monitoring features include warning indications,maintenance scheduling and online visualization of machine’s condition.
6. Heavy-duty air intake filter
• Protects the compressor components by removing99.9% of dirt particles down to 3 microns.
• Differential inlet pressure for proactive maintenance while minimizing pressure drop.
7. Electronic no-loss water drain(optional)
• Ensures constant removal of condensate.
• Manual integrated bypass for effective condensate removal in case of power failure.
• Integrated with compressor’s Elektronikon® with warning/alarm features.
8. Radial fan
• Low noise level.
• High flows.
• Compact design.
9. Integrated highly efficient R410A dryer
• Excellence in air quality.
• 50% reduction in energy consumption compared to traditional dryers.
• Zero ozone depletion.
• Incorporates optional UD+ filter according to Class 1.4.2.
SPECIFICATIONS
|
COMPRESSOR TYPE |
Pressure variant |
Max. working pressure WorkPlace |
Capacity FAD* | Installed motor power | Noise level** | Weight WorkPlace |
Weight WorkPlace Full Feature |
||||||
| bar(e) | psig | l/s | m³/min | cfm | kW | hp | dB(A) | kg | lbs | kg | lbs | ||
| GA 37 | 7.5 | 7.5 | 109 | 116 | 6.9 | 243 | 37 | 50 | 67 | 683 | 1503 | 853 | 1877 |
| 8.5 | 8.5 | 123 | 108 | 6.5 | 226 | 37 | 50 | 67 | 683 | 1503 | 853 | 1877 | |
| 10.5 | 10.5 | 152 | 100 | 6.0 | 210 | 37 | 50 | 67 | 683 | 1503 | 853 | 1877 | |
| 13 | 13 | 189 | 88 | 5.3 | 185 | 37 | 50 | 67 | 683 | 1503 | 853 | 1877 | |
