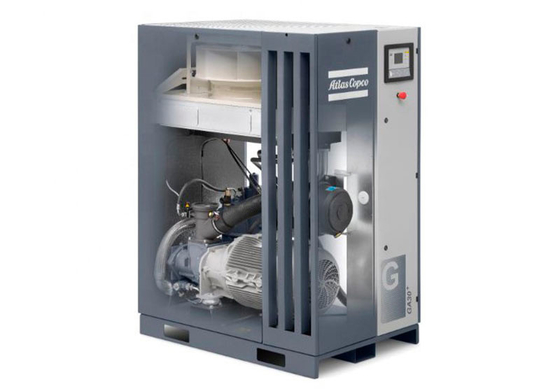

30kW GA30+ Atlas Screw Air Compressor GA Series 7.5bar 8.5bar working pressure

I'm Online Chat Now

30kW GA30+ Atlas Screw Air Compressor GA Series 7.5bar 8.5bar working pressure

30kW GA30+ Atlas Screw Air Compressor GA Series 7.5bar 8.5bar working pressure
30kW GA30+ Atlas Screw Air Compressor GA Series 7.5bar 8.5bar working pressure
30kW GA30+ Atlas Screw Air Compressor GA Series 7.5bar 8.5bar working pressure 30kW GA30+ Atlas Screw Air Compressor GA Series 7.5bar 8.5bar working pressure

Large Image :  30kW GA30+ Atlas Screw Air Compressor GA Series 7.5bar 8.5bar working pressure

Product Details:
Place of Origin: China
Brand Name: Atlas
Certification: ISO 8573-1 CLASS 0
Model Number: GA 30+
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: be negotiated
Packaging Details: Atlas standard packing
Delivery Time: 7~30days
Payment Terms: L/C, T/T, D/A, Western Union, D/P
Supply Ability: 100pcs per month

30kW GA30+ Atlas Screw Air Compressor GA Series 7.5bar 8.5bar working pressure

Description
Material: Aluminum Alloy Model: GA 30+
Power: 220kw Brand: Atlas
Type: Oil-injected System: SIL Smart Inlet Lock System
Highlight:

30kW Atlas GA Series

,

7.5bar Atlas GA Series

,

8.5bar Atlas GA30+





GA30+ 50Hz Air Compressor


The ultimate smart solution, driven by efficiency
Atlas ’s GA 30+-90 compressors bring you outstanding sustainability, reliability and performance, while minimizing the total cost of ownership. A choice of three premium compressor types (GA VSD, GA+ and GA) provides you with the compressed air solution that perfectly matches your requirements with clear value propositions. Built to perform even in the harshest environments, these compressors keep your production running efficiently.
 30kW GA30+ Atlas Screw Air Compressor GA Series 7.5bar 8.5bar working pressure 0




A step ahead in monitoring and controls
The new generation Elektronikon® operating system offers a great variety of control and monitoring features that allow you to increase your compressor’s efficiency and reliability. To maximize energy efficiency, the Elektronikon® controls the main drive motor and regulates system pressure within a predefined and narrow pressure band.

 30kW GA30+ Atlas Screw Air Compressor GA Series 7.5bar 8.5bar working pressure 1




Elektronikon® Swipe
• Improved ease of use: intuitive navigation system with clear pictograms and extra 4th LED indicator for service.
• Visualization through web browser using a simple Ethernet connection.
• Easy to upgrade.



Key features:
• Automatic restart after voltage failure.
• Delayed Second Stop function.
• Dual pressure set point.
• Built-in SMARTLINK online monitoring.
• Option to upgrade to the advanced Elektronikon® Touch controller



Advanced Elektronikon® Touch controller
• Improved user-friendliness: 4.3-inch high-definition color display with clear pictograms and service indicator.
• Internet-based compressor visualization using a simple Ethernet connection.
• Increased reliability: new, user-friendly, multilingual user interface.





Key features:
• Automatic restart after voltage failure.
• Built-in SMARTLINK online monitoring.
• Dual pressure set point.
• More flexibility: four different week schedules that can be programmed for a period of 10 consecutive weeks.
• On-screen Delayed Second Stop function and VSD savings indication.
• Graphical service plan indication.• Remote control and connectivity functions.
• Software upgrade available to control up to 6 compressors by installing the optional integrated compressor controller.



SPECIFICATIONS

COMPRESSOR

TYPE

Pressure variant

Max. working pressure

WorkPlace

Capacity FAD* Installed motor power Noise level** Weight WorkPlace

Weight WorkPlace

Full Feature

bar(e) psig l/s m³/min cfm kW hp dB(A) kg lbs kg lbs
GA 30+ 7.5 7.5 109 102 6.1 213 30 40 66 626 1377 796 1751
8.5 8.5 123 97 5.8 203 30 40 66 626 1377 796 1751
10.5 10.5 152 83 5.0 173 30 40 66 626 1377 796 1751
13 13 189 76 4.6 159 30 40 66 626 1377 796 1751
