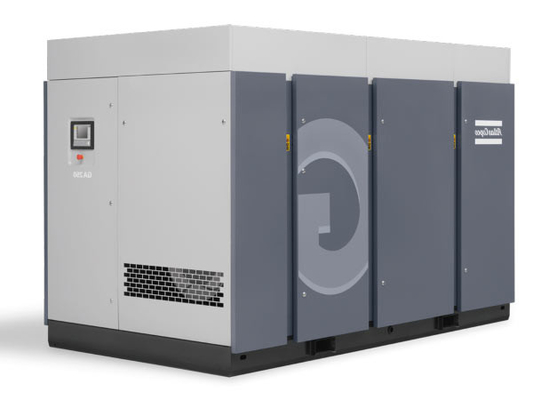

Meeting Demanding Air Requirements with GA Series GA220+ 50Hz Atlas Screw Air Compressor

I'm Online Chat Now

Meeting Demanding Air Requirements with GA Series GA220+ 50Hz Atlas Screw Air Compressor

Meeting Demanding Air Requirements with GA Series GA220+ 50Hz Atlas Screw Air Compressor
Meeting Demanding Air Requirements with GA Series GA220+ 50Hz Atlas Screw Air Compressor

Large Image :  Meeting Demanding Air Requirements with GA Series GA220+ 50Hz Atlas Screw Air Compressor

Product Details:
Place of Origin: China
Brand Name: Atlas
Certification: ISO 8573-1 CLASS 0
Model Number: GA 220 - 5.5 bar
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: be negotiated
Packaging Details: Atlas standard packing
Delivery Time: 7~30days
Payment Terms: L/C, T/T, D/A, Western Union, D/P
Supply Ability: 100pcs per month

Meeting Demanding Air Requirements with GA Series GA220+ 50Hz Atlas Screw Air Compressor

Description
Material: Aluminum Alloy Model: GA 220 - 5.5 Bar
Power: 220kw Brand: Atlas
Type: Oil-injected System: SIL Smart Inlet Lock System
High Light:

GA220+ Atlas GA Series

,

50Hz Atlas GA Series

,

5.5 Bar GA Atlas


GA220+50Hz Air Compressor



HIGHEST RELIABILITY, LOWEST OPERATING COSTS
The shortest route to maximize your profitability is to minimize your operational cost. As energy consumption is the major factor (up to 70%) of a compressor’s lifecycle cost, the Atlas GA 160+-250 compressors are designed to help you achieve significant savings. The compressors provide high-quality compressed air to meet your requirements even in the most demanding applications.







SPECIFICATIONS

TYPE Working pressure Capacity FAD (1)

Installed

motor power

Noise level (2) Weight
Standard Standard Standard
bar(e) psig l/s m³/min cfm kW dB(A) kg lb
GA 220+ - 5.5 bar 5.5 80 837 50.2 1773 220 78 5099 11241
GA 220+ - 7.5 bar 7.5 109 744 44.7 1576 5099 11241
GA 220+ - 8.5 bar 8.5 123 671 40.2 1421 5099 11241
GA 220+ - 10 bar 10 145 612 36.7 1296 4954 10922
GA 220+ - 14 bar 14 203 492 29.6 1042 4954 10922







INCREASE YOUR SAVINGS WITH ENERGY RECOVERY
The Kyoto directives and the continuing depletion of traditional energy sources mean that businesses throughout the world are making commitments to significantly reduce overall energy consumption. Through innovative products and solutions, Atlas helps you achieve your goals in this area. When it comes to compressed air production – where energy costs can constitute 70% of total lifecycle costs
– saving energy can also lead to substantial cost savings.




Integrated heat exchanger
Air compression creates heat that is normally wasted in the coolers. Energy recovery systems designed by Atlas enable the recovery of most of this heat. Recovery of energy from the shaft input of the compressor can be up to 94% of the compressor shaft power. The heat is directly usable as a source of energy in the form of hot water (85-90°C/185- 194°F). The main module of the recovery system is built into the compressor. The investment needed to link the hot oil circuit from the compressor to the existingwater circuit is relatively modest and the time needed before seeing payback from your investment is generally very short.





Meeting Demanding Air Requirements with GA Series GA220+ 50Hz Atlas Screw Air Compressor 0
