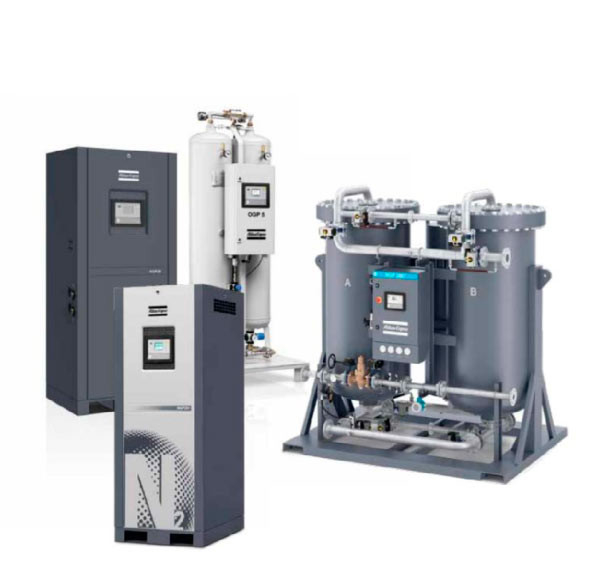

NGP900 N2 Generator Atlas 97.6x99.2x124.4inch Dimensions

I'm Online Chat Now

NGP900 N2 Generator Atlas 97.6x99.2x124.4inch Dimensions

NGP900 N2 Generator Atlas 97.6x99.2x124.4inch Dimensions
NGP900 N2 Generator Atlas 97.6x99.2x124.4inch Dimensions

Large Image :  NGP900 N2 Generator Atlas 97.6x99.2x124.4inch Dimensions

Product Details:
Place of Origin: China
Brand Name: Atlas
Certification: ISO 8573-1 CLASS 0
Model Number: NGP900
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: be negotiated
Packaging Details: Atlas standard packing
Delivery Time: 7~30days
Payment Terms: L/C, T/T, D/A, Western Union, D/P
Supply Ability: 100pcs per month

NGP900 N2 Generator Atlas 97.6x99.2x124.4inch Dimensions

Description
Material: Aluminum Alloy Model: NGP900
Brand: Atlas Nitrogen Purity: 95-99.9%
Air Factor: 2.6~3.5 Type: NITROGEN PSA
High Light:

124.4inch N2 Generator Atlas

,

99.2inch N2 Generator Atlas

,

97.6inch Atlas N2 Generator



Atlas PSA Nitrogen Generator all in one NGP 900

Specifications

TYPE   Nitrogen purity FND (Free Nitrogen Delivery) Dimensions (W x D x H) Weight
    95% 97% 98% 99% 99.5% 99.90% 99.95% 99.99% 99.999% mm in kg lbs
NGP 900 FND scfm 1167.2 868.0 748.3 628.4 538.6 347.1 257.3 179.6 73.1 2480 x 2520 x 3160 97.6 x 99.2 x 124.4

8400



18519



FND Nm³/h 1983.9 1475.2 1271.7 1068.2 915.6 590.1 534.1 305.2 124.1



NGP900 N2 Generator Atlas 97.6x99.2x124.4inch Dimensions 0









Membrane: Compact all-in-one N 2 supply
Atlas NGM/NGM + /NGMs nitrogen generators utilize proprietary membrane separation technology. The membrane separates compressed air into two streams: one is 95-99.9% pure nitrogen, and the other is oxygen enriched with carbon dioxide and other gases.
NGP900 N2 Generator Atlas 97.6x99.2x124.4inch Dimensions 1
Instant supply of nitrogen between 95% and 99.9%
The generator separates air into component gases by passing inexpensive compressed air through semi-permeable membranes consisting of bundles of individual hollow fibers. Each fiber has a perfectly circular cross-section and a uniform bore through its center. Because the fibers are so small, a large amount of fibers can be packed into a limited space, providing an extremely large membrane surface area that can produce a relatively high volume product stream.
NGP900 N2 Generator Atlas 97.6x99.2x124.4inch Dimensions 2

Wide Range of Applications
• Food & beverage (storage & packaging). • Pharmaceutical applications.
• Plastic injection molding. • Electronics.
• Laser cutting. • Semiconductor manufacturing.
• Chemical applications. • Metal heat treatment.
• Cable & optical fiber industries. • Glass industries.
• Fire prevention. • Aquaculture.

NGP900 N2 Generator Atlas 97.6x99.2x124.4inch Dimensions 3NGP900 N2 Generator Atlas 97.6x99.2x124.4inch Dimensions 4
Membrane: Compact all-in-one N 2 supply
Atlas NGM/NGM + /NGMs nitrogen generators utilize proprietary membrane separation technology. The membrane separates compressed air into two streams: one is 95-99.9% pure nitrogen, and the other is oxygen enriched with carbon dioxide and other gases.





PSA: Reliable and proven
Based on Pressure Swing Adsorption (PSA) technology, Atlas ’s NGP/NGP + nitrogen generators and OGP oxygen generators provide a continuous flow of nitrogen and oxygen at desired purity.



High purity nitrogen supply up to 99.999%
Atlas ’s NGP/NGP + nitrogen generators use Pressure Swing Adsorption technology to isolate nitrogen molecules from other molecules
in compressed air. Oxygen, CO 2 , water vapor and other gases are adsorbed. The result is virtually pure nitrogen at the outlet of the generator. The NGP/NGP + Series is a very cost-efficient source of nitrogen used in various industries like food and beverage, metal processing, electronics, and many others.



Advanced monitoring, control & connectivity
Do you operate a smart factory or Industry 4.0 production environment? Atlas ’s nitrogen and oxygen generators will fit right in. Their advanced monitoring, control and connectivity features allow you to optimize performance and efficiency.










FND: Free Nitrogen Delivery Reference conditions
Compressed air effective inlet pressure: 8 bar(g)/116 psi(g).
Nitrogen outlet pressure: 6.5 bar(g)/94 psi(g).
Ambient air temperature: 20°C/68°F.
Pressure dewpoint inlet air: 3°C/37°F.
Pressure dewpoint nitrogen: -50°C/-58°F.
Minimum refrigerant dryer required to precondition inlet air.
Typical nitrogen quality 1.2.1 according to ISO 8573-1:2010.


Operating limits
Minimum ambient temperature: 5°C/41°F.
Maximum ambient temperature: 50°C/122°F.
Maximum compressed inlet air pressure 13 bar(g)/189 psi(g).


NGMs performance
is based on 20°C/7 bar at membrane (1000Mbar) + /-5%.
