NGM5+ PSA Nitrogen Generator Atlas 820x772x2090mm Dimension

I'm Online Chat Now

NGM5+ PSA Nitrogen Generator Atlas 820x772x2090mm Dimension

NGM5+ PSA Nitrogen Generator Atlas 820x772x2090mm Dimension
NGM5+ PSA Nitrogen Generator Atlas 820x772x2090mm Dimension

Large Image :  NGM5+ PSA Nitrogen Generator Atlas 820x772x2090mm Dimension

Product Details:
Place of Origin: China
Brand Name: Atlas
Certification: ISO 8573-1 CLASS 0
Model Number: NGM5+
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: be negotiated
Packaging Details: Atlas standard packing
Delivery Time: 7~30days
Payment Terms: L/C, T/T, D/A, Western Union, D/P
Supply Ability: 100pcs per month

NGM5+ PSA Nitrogen Generator Atlas 820x772x2090mm Dimension

Material: Aluminum Alloy Model: NGM5+
Brand: Atlas Nitrogen Purity: 95-99.9%
Air Factor: 2.6~3.5 Type: NITROGEN PSA
High Light:

772mm PSA Nitrogen Generator


820mm PSA Nitrogen Generator


2090mm Nitrogen Generator Atlas



Type Nitrogen Purity Dimension Weight
  95% 96% 97% mm in kg ibs
NGM 5 FND Nm³/h 145.8 99.0 51.0 820 x 772 x 2090 32.3 x 30.4 x 82.3 497kg 1096
FND scfm 84.8 57.6 29.7
Air factor 2.2 2.7 4.2

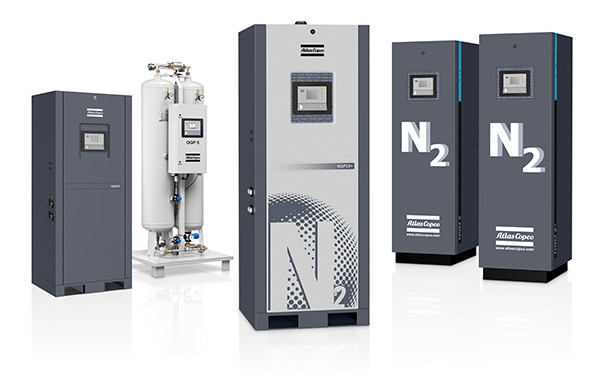

PSA nitrogen and oxygen generators

Atlas ’s NGP, NGP+ and OGP nitrogen and oxygen generators are easy to install and use.They offer the required purity with a high flow capacity, making them suitable for a range of applications.
High flow capacity
The wide product range and gas flows exceeding 3,000 Nm³/h
(NGP/NGP+) make these generators ideal for a variety of demanding applications.
Ready to use
• Only requires a supply of dry compressed air.
• Plug-and-play.
• No specialist installation or commissioning.
• Fully automated and monitored including oxygen sensor as standard.
• Service-friendly.
NGM5+ PSA Nitrogen Generator Atlas 820x772x2090mm Dimension 0
Desired purity
• NGP/NGP+: nitrogen concentrations from 95% to 99.999%.
• OGP: oxygen concentrations from 90% to 95%.
Exceptional reliability
• Robust design.
• Continuous availability (24 hours a day, 7 days a week).
• Potential risk of production breakdown due to gas running out is eliminated.
Cost savings
• Low operating expenses.
• No additional costs such as order processing,refills and delivery charges.
• Limited maintenance costs.
Membrane: Compact all-in-one N 2 supply
Atlas NGM/NGM + /NGMs nitrogen generators utilize proprietary membrane separation technology. The membrane separates compressed air into two streams: one is 95-99.9% pure nitrogen, and the other is oxygen enriched with carbon dioxide and other gases.
NGM5+ PSA Nitrogen Generator Atlas 820x772x2090mm Dimension 1
Instant supply of nitrogen between 95% and 99.9%
The generator separates air into component gases by passing inexpensive compressed air through semi-permeable membranes consisting of bundles of individual hollow fibers. Each fiber has a perfectly circular cross-section and a uniform bore through its center. Because the fibers are so small, a large amount of fibers can be packed into a limited space, providing an extremely large membrane surface area that can produce a relatively high volume product stream.
NGM5+ PSA Nitrogen Generator Atlas 820x772x2090mm Dimension 2
Outstandingly dry nitrogen
Compressed air is introduced into the center of the fibers at one end of the module and contacts the membrane as it flows through the fiber bores. Oxygen, water vapor and other trace gases easily permeate the membrane fiber and are discharged through a permeate port while the nitrogen is contained within the membrane and flows through the outlet port. Since water vapor permeates through the membrane as well, the nitrogen gas stream is very dry, with dewpoints as low as -50°C (-58°F).
NGM5+ PSA Nitrogen Generator Atlas 820x772x2090mm Dimension 3
PSA: Reliable and proven
Based on Pressure Swing Adsorption (PSA) technology, Atlas ’s NGP/NGP + nitrogen generators and OGP oxygen generators provide a continuous flow of nitrogen and oxygen at desired purity.
High purity nitrogen supply up to 99.999%
Atlas ’s NGP/NGP + nitrogen generators use Pressure Swing Adsorption technology to isolate nitrogen molecules from other molecules
in compressed air. Oxygen, CO 2 , water vapor and other gases are adsorbed. The result is virtually pure nitrogen at the outlet of the generator. The NGP/NGP + Series is a very cost-efficient source of nitrogen used in various industries like food and beverage, metal processing, electronics, and many others.
Advanced monitoring, control & connectivity
Do you operate a smart factory or Industry 4.0 production environment? Atlas ’s nitrogen and oxygen generators will fit right in. Their advanced monitoring, control and connectivity features allow you to optimize performance and efficiency.
Always at your service
Atlas is a truly global organization with support available in more than 160 countries. As a result, one of our 4850 field service engineers is
never far away. We pride ourselves on the swift assistance that keeps your Atlas nitrogen and oxygen system performing reliably and
Service plan
Our service plans keep your Atlas nitrogen and oxygen system in excellent shape.
Stand-by solutions
Atlas help is available 24/7. We keep spare parts in stock so you are up and running again as quickly as possible.
Our specialty rental services meet your temporary compressed air needs. With Customer Centers strategically located around the globe, Atlas Rental can provide a solution for virtually any application.

FND: Free Nitrogen Delivery Reference conditions
Compressed air effective inlet pressure: 8 bar(g)/116 psi(g).
Nitrogen outlet pressure: 6.5 bar(g)/94 psi(g).
Ambient air temperature: 20°C/68°F.
Pressure dewpoint inlet air: 3°C/37°F.
Pressure dewpoint nitrogen: -50°C/-58°F.
Minimum refrigerant dryer required to precondition inlet air.
Typical nitrogen quality 1.2.1 according to ISO 8573-1:2010.

Operating limits
Minimum ambient temperature: 5°C/41°F.
Maximum ambient temperature: 50°C/122°F.
Maximum compressed inlet air pressure 13 bar(g)/189 psi(g).


NGMs performance
is based on 20°C/7 bar at membrane (1000Mbar) + /-5%.
