Product Details:
|
| Material: | Aluminum Alloy | Model: | NGP100 |
|---|---|---|---|
| Brand: | Atlas | Nitrogen Purity: | 95-99.9% |
| Air Factor: | 2.6~3.5 | Type: | NITROGEN PSA |
| Highlight: | 3.5 Air Factor PSA Nitrogen Generator,All In One PSA Nitrogen Generator,NGP100 Atlas NGP |
||

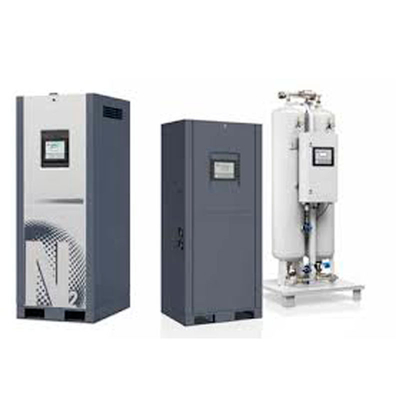

PSA nitrogen and oxygen generators
(NGP, NGP+, OGP)
Atlas ’s NGP, NGP+ and OGP nitrogen and oxygen generators are easy to install and use.They offer the required purity with a high flow capacity, making them suitable for a range of applications.
High flow capacity
The wide product range and gas flows exceeding 3,000 Nm³/h
(NGP/NGP+) make these generators ideal for a variety of demanding applications.
Ready to use
• Only requires a supply of dry compressed air.
• Plug-and-play.
• No specialist installation or commissioning.
• Fully automated and monitored including oxygen sensor as standard.
• Service-friendly.
PSA: Reliable and proven
Based on Pressure Swing Adsorption (PSA) technology, Atlas ’s NGP/NGP + nitrogen generators and OGP oxygen generators provide a continuous flow of nitrogen and oxygen at desired purity.
High purity nitrogen supply up to 99.999%
Atlas ’s NGP/NGP + nitrogen generators use Pressure Swing Adsorption technology to isolate nitrogen molecules from other molecules
in compressed air. Oxygen, CO 2 , water vapor and other gases are adsorbed. The result is virtually pure nitrogen at the outlet of the generator. The NGP/NGP + Series is a very cost-efficient source of nitrogen used in various industries like food and beverage, metal processing, electronics, and many others.
Advanced monitoring, control & connectivity
Do you operate a smart factory or Industry 4.0 production environment? Atlas ’s nitrogen and oxygen generators will fit right in. Their advanced monitoring, control and connectivity features allow you to optimize performance and efficiency.
Always at your service
Atlas is a truly global organization with support available in more than 160 countries. As a result, one of our 4850 field service engineers is
never far away. We pride ourselves on the swift assistance that keeps your Atlas nitrogen and oxygen system performing reliably and
efficiently.
Service plan
Our service plans keep your Atlas nitrogen and oxygen system in excellent shape.
Stand-by solutions
Atlas help is available 24/7. We keep spare parts in stock so you are up and running again as quickly as possible.
Rental
Our specialty rental services meet your temporary compressed air needs. With Customer Centers strategically located around the globe, Atlas Rental can provide a solution for virtually any application.
Specifications
| TYPE | Nitrogen purity FND (Free Nitrogen Delivery) | Dimensions (W x D x H) | Weight | ||||||||||||
| 95% | 97% | 98% | 99% | 99.5% | 99.90% | 99.95% | 99.99% | 99.999% | mm | in | kg | lbs | |||
| NGP 100 | FND scfm | - | - | 73.9 | 62.6 | 50.5 | 32.8 | 23.4 | 16.6 | 10.2 | 798 x 840 x 2022 | 31.4 x 33.1 x 79.6 |
1191
|
2626
|
|
| FND Nm³/h | - | - | 138.1 | 108.8 | 91.2 | 59.1 | 46.5 | 34.0 | 20.5 | ||||||
