Product Details:
|
| Material: | Aluminum Alloy | Model: | NGP70 |
|---|---|---|---|
| Brand: | Atlas | Nitrogen Purity: | 95-99.9% |
| Air Factor: | 2.6~3.5 | Type: | NITROGEN PSA |
| High Light: | NGP70 PSA Nitrogen Generator,805kg PSA Nitrogen Generator,Ngp Atlas Nitrogen Generator |
||

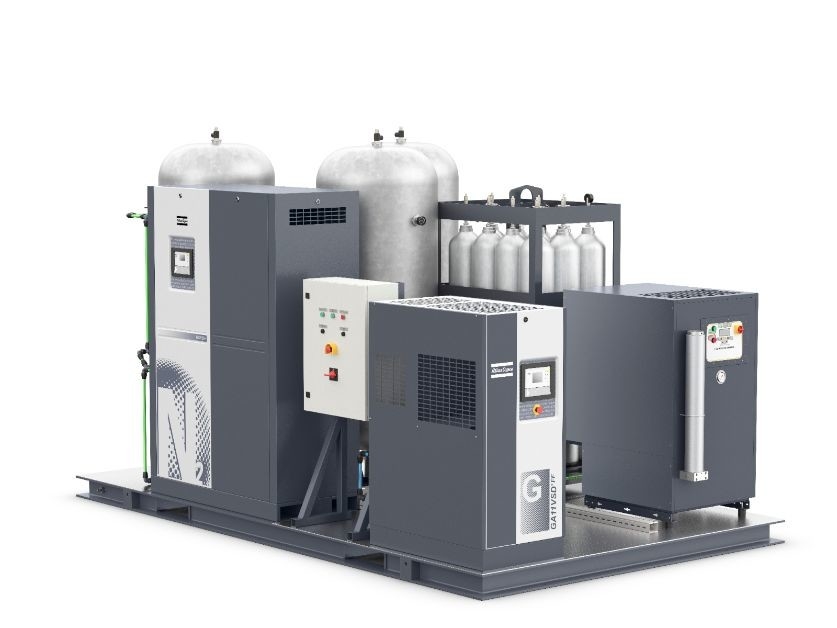

PSA nitrogen and oxygen generators
(NGP, NGP+, OGP)
Atlas ’s NGP, NGP+ and OGP nitrogen and oxygen generators are easy to install and use.They offer the required purity with a high flow capacity, making them suitable for a range of applications.
High flow capacity
The wide product range and gas flows exceeding 3,000 Nm³/h
(NGP/NGP+) make these generators ideal for a variety of demanding applications.
Ready to use
• Only requires a supply of dry compressed air.
• Plug-and-play.
• No specialist installation or commissioning.
• Fully automated and monitored including oxygen sensor as standard.
• Service-friendly.
Desired purity
• NGP/NGP+: nitrogen concentrations from 95% to 99.999%.
• OGP: oxygen concentrations from 90% to 95%.
Exceptional reliability
• Robust design.
• Continuous availability (24 hours a day, 7 days a week).
• Potential risk of production breakdown due to gas running out is eliminated.
Cost savings
• Low operating expenses.
• No additional costs such as order processing,refills and delivery charges.
• Limited maintenance costs.
Specifications
| TYPE | Nitrogen purity FND (Free Nitrogen Delivery) | Dimensions (W x D x H) | Weight | ||||||||||||
| 95% | 97% | 98% | 99% | 99.5% | 99.90% | 99.95% | 99.99% | 99.999% | mm | in | kg | lbs | |||
| NGP 70 | FND scfm | 93.9 | 71.3 | 60.4 | 51.2 | 41.3 | 26.8 | 19.1 | 13.6 | 8.3 | 798 x 840 x 2022 | 31.4 x 33.1 x 79.6 |
805
|
1775
|
|
| FND Nm³/h | 159.7 | 121.2 | 102.7 | 87.0 | 70.2 | 45.6 | 32.5 | 23.1 | 14.2 | ||||||
FND: Free Nitrogen Delivery Reference conditions
Compressed air effective inlet pressure: 8 bar(g)/116 psi(g).
Nitrogen outlet pressure: 6.5 bar(g)/94 psi(g).
Ambient air temperature: 20°C/68°F.
Pressure dewpoint inlet air: 3°C/37°F.
Pressure dewpoint nitrogen: -50°C/-58°F.
Minimum refrigerant dryer required to precondition inlet air.
Typical nitrogen quality 1.2.1 according to ISO 8573-1:2010.
Operating limits
Minimum ambient temperature: 5°C/41°F.
Maximum ambient temperature: 50°C/122°F.
Maximum compressed inlet air pressure 13 bar(g)/189 psi(g).
NGMs performance
is based on 20°C/7 bar at membrane (1000Mbar) + /-5%.
