Product Details:
|
| Material: | Aluminum Alloy | Model: | NGP40 |
|---|---|---|---|
| Brand: | Atlas | Nitrogen Purity: | 95-99.9% |
| Air Factor: | 2.6~3.5 | Type: | NITROGEN PSA |

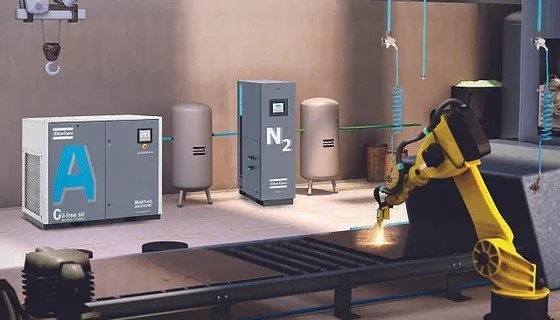

Whether your company is specialized in chemical manufacturing, electronics, laser cutting or food and beverage, a dependable supply of industrial gas is crucial. Compared to the on-demand delivery of gas bottles or tanks, on-site production of gas offers a wealth of advantages ranging from cost savings to continuous availability. Atlas ’s advanced nitrogen and oxygen generators offer you the ultimate solution: flexible on-site production of industrial gas at the lowest possible cost.
Atlas ’s latest membrane and PSA generators extend the advantages of the current range. Total lifecycle cost consists of the initial investment cost of the on-site installation, the service cost, and the energy cost. The NGP/NGM range has the lowest investment cost. However, with increasing running time, you are better advised to switch to the NGP + /NGM + range to reduce energy costs.
With an air factor* of 1.8 (at 95%) to 5.5 (at 99.999%) and a special cycle time modulation algorithm, the running cost of the new NGP + can be reduced by 50%, compared to other N 2 generators.
Desired purity
• NGP/NGP+: nitrogen concentrations from 95% to 99.999%.
• OGP: oxygen concentrations from 90% to 95%.
Exceptional reliability
• Robust design.
• Continuous availability (24 hours a day, 7 days a week).
• Potential risk of production breakdown due to gas running out is eliminated.
Cost savings
• Low operating expenses.
• No additional costs such as order processing,refills and delivery charges.
• Limited maintenance costs.
Specifications
| TYPE | Nitrogen purity FND (Free Nitrogen Delivery) | Dimensions (W x D x H) | Weight | ||||||||||||
| 95% | 97% | 98% | 99% | 99.5% | 99.90% | 99.95% | 99.99% | 99.999% | mm | in | kg | lbs | |||
| NGP 40 | FND scfm | 62.0 | 48.4 | 40.6 | 31.3 | 25.2 | 16.4 | 12.3 | 8.9 | 5.1 | 798 x 840 x 2022 | 31.4 x 33.1 x 79.6 |
627
|
1382
|
|
| FND Nm³/h | 105.5 | 82.3 | 69.1 | 53.2 | 42.9 | 27.9 | 20.9 | 15.2 | 8.7 | ||||||
FND: Free Nitrogen Delivery Reference conditions
Compressed air effective inlet pressure: 8 bar(g)/116 psi(g).
Nitrogen outlet pressure: 6.5 bar(g)/94 psi(g).
Ambient air temperature: 20°C/68°F.
Pressure dewpoint inlet air: 3°C/37°F.
Pressure dewpoint nitrogen: -50°C/-58°F.
Minimum refrigerant dryer required to precondition inlet air.
Typical nitrogen quality 1.2.1 according to ISO 8573-1:2010.
Operating limits
Minimum ambient temperature: 5°C/41°F.
Maximum ambient temperature: 50°C/122°F.
Maximum compressed inlet air pressure 13 bar(g)/189 psi(g).
NGMs performance
is based on 20°C/7 bar at membrane (1000Mbar) + /-5%.
