Industrial On Site Nitrogen Generator NGM7 820x772x2090mm Dimension

I'm Online Chat Now

Industrial On Site Nitrogen Generator NGM7 820x772x2090mm Dimension

Industrial On Site Nitrogen Generator NGM7   820x772x2090mm Dimension
Industrial On Site Nitrogen Generator NGM7   820x772x2090mm Dimension

Large Image :  Industrial On Site Nitrogen Generator NGM7 820x772x2090mm Dimension

Product Details:
Place of Origin: China
Brand Name: Atlas
Certification: ISO 8573-1 CLASS 0
Model Number: NGM7
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: be negotiated
Packaging Details: Atlas standard packing
Delivery Time: 7~30days
Payment Terms: L/C, T/T, D/A, Western Union, D/P
Supply Ability: 100pcs per month

Industrial On Site Nitrogen Generator NGM7 820x772x2090mm Dimension

Material: Aluminum Alloy Model: NGM7
Brand: Atlas Nitrogen Purity: 95-99.9%
Air Factor: 2.6~3.5 Type: NITROGEN PSA
High Light:

820mm On Site Nitrogen Generator


772mm On Site Nitrogen Generator


2090mm Nitrogen Generator Industrial



Type Nitrogen Purity Dimension Weight
  95% 96% 97% mm in kg ibs
NGM 7 FND Nm³/h 209.9 173.2 136.4 820 x 772 x 2090 32.3 x 30.4 x 82.3 571 1259
FND scfm 122.4 101.0 79.6
Air factor 2.6 3 3.5

A secure supply

of nitrogen and oxygen

Whether your company is specialized in chemical manufacturing, electronics, laser cutting or food and
beverage, a dependable supply of industrial gas is crucial. Compared to the on-demand delivery of gas bottles
or tanks, on-site production of gas offers a wealth of advantages ranging from cost savings to continuous
availability. Atlas ’s advanced nitrogen and oxygen generators offer you the ultimate solution: flexible
on-site production of industrial gas at the lowest possible cost.

Industrial On Site Nitrogen Generator NGM7   820x772x2090mm Dimension 0


All-in-one high pressure nitrogen skid

The latest addition to Atlas ’s specially developed equipment is the all-in-one high pressure nitrogen
skid, a true alternative for liquid nitrogen or bottles. Combining a small footprint, easy installation, high reliability and supreme energy efficiency, this unique nitrogen skid truly stands out.

Industrial On Site Nitrogen Generator NGM7   820x772x2090mm Dimension 1



PSA: Reliable and proven
Based on Pressure Swing Adsorption (PSA) technology, Atlas ’s NGP/NGP + nitrogen generators and OGP oxygen generators provide a continuous flow of nitrogen and oxygen at desired purity.

High purity nitrogen supply up to 99.999%
Atlas ’s NGP/NGP + nitrogen generators use Pressure Swing Adsorption technology to isolate nitrogen molecules from other molecules
in compressed air. Oxygen, CO 2 , water vapor and other gases are adsorbed. The result is virtually pure nitrogen at the outlet of the generator. The NGP/NGP + Series is a very cost-efficient source of nitrogen used in various industries like food and beverage, metal processing, electronics, and many others.

Advanced monitoring, control & connectivity
Do you operate a smart factory or Industry 4.0 production environment? Atlas ’s nitrogen and oxygen generators will fit right in. Their advanced monitoring, control and connectivity features allow you to optimize performance and efficiency.

Always at your service
Atlas is a truly global organization with support available in more than 160 countries. As a result, one of our 4850 field service engineers is
never far away. We pride ourselves on the swift assistance that keeps your Atlas nitrogen and oxygen system performing reliably and
Service plan
Our service plans keep your Atlas nitrogen and oxygen system in excellent shape.
Stand-by solutions
Atlas help is available 24/7. We keep spare parts in stock so you are up and running again as quickly as possible.
Our specialty rental services meet your temporary compressed air needs. With Customer Centers strategically located around the globe, Atlas Rental can provide a solution for virtually any application.

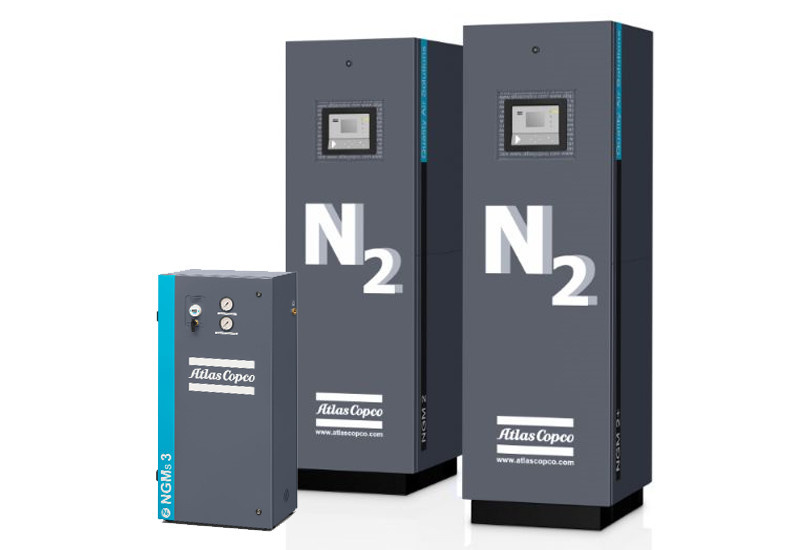

Membrane nitrogen generators (NGM, NGM + , NGMs)
Based on innovative membrane technology, Atlas ’s membrane nitrogen generators are flexible enough to adapt to your specific applications. And with low operating costs they offer an excellent return on investment.


Ready to use
• Requires only a supply of dry compressed air.
• No specialist installation or commissioning.
• Fitted with pre-filtration, pressure gauges and flow meter to ensure accurate system monitoring at all times.

Cost savings
• Low operating expenses.
• No additional costs such as order processing, refills and delivery charges.
• Limited maintenance costs.

Exceptional convenience
• Continuous availability (24 hours a day, 7 days a week).
• Risk of production breakdown dueto gas running out is eliminated.
Desired purity
• Nitrogen supply according to your need: from 5% to 0.1% oxygen content.
• Very easy to set up the device for other purity levels.
• Fully integrated package.
• Filters and oxygen sensor as standard.
High flow capacity
Ideal for applications such as fire prevention, tire inflation, oil & gas, marine, packaging and many more.
Long lifetime
• No aging.
• No heater.
• Lasting performance.

NGMs: efficiency in low flow nitrogen generation
If you don’t need a generator with a high nitrogen flow and purity, the NGMs is your perfect solution. It meets your specific requirements with Atlas quality, high efficiency, little maintenance and zero operational costs.




FND: Free Nitrogen Delivery Reference conditions
Compressed air effective inlet pressure: 8 bar(g)/116 psi(g).
Nitrogen outlet pressure: 6.5 bar(g)/94 psi(g).
Ambient air temperature: 20°C/68°F.
Pressure dewpoint inlet air: 3°C/37°F.
Pressure dewpoint nitrogen: -50°C/-58°F.
Minimum refrigerant dryer required to precondition inlet air.
Typical nitrogen quality 1.2.1 according to ISO 8573-1:2010.

Operating limits
Minimum ambient temperature: 5°C/41°F.
Maximum ambient temperature: 50°C/122°F.
Maximum compressed inlet air pressure 13 bar(g)/189 psi(g).

NGMs performance
is based on 20°C/7 bar at membrane (1000Mbar) + /-5%.
