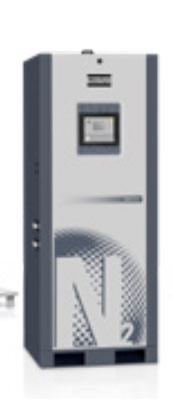

Product Details:
|
| Material: | Aluminum Alloy | Model: | NGMs 2 |
|---|---|---|---|
| Brand: | Atlas | Nitrogen Purity: | 95-99.9% |
| Air Factor: | 2.6~3.5 | Type: | NITROGEN PSA |
| High Light: | 59kg Atlas N2 Generator,Aluminum Atlas N2 Generator,Alloy N2 Generator Atlas |
||
| Type | Nitrogen Purity | Dimension | Weight | |||||
| 95% | 96% | 97% | mm | in | kg | ibs | ||
| NGMs 2 | FND Nm³/h | 9.6 | 7.9 | 6.5 | 560 x 285 x 1150 | 22 x 11 x 45 | 59 | 130 |
| FND scfm | 5.7 | 4.7 | 3.9 | |||||
| SCFH | 345 | 284 | 233.5 | |||||
| Air factor | 2 | 2.2 | 4.2 | |||||
FND: Free Nitrogen Delivery Reference conditions
Compressed air effective inlet pressure: 8 bar(g)/116 psi(g).
Nitrogen outlet pressure: 6.5 bar(g)/94 psi(g).
Ambient air temperature: 20°C/68°F.
Pressure dewpoint inlet air: 3°C/37°F.
Pressure dewpoint nitrogen: -50°C/-58°F.
Minimum refrigerant dryer required to precondition inlet air.
Typical nitrogen quality 1.2.1 according to ISO 8573-1:2010.
Operating limits
Minimum ambient temperature: 5°C/41°F.
Maximum ambient temperature: 50°C/122°F.
Maximum compressed inlet air pressure 13 bar(g)/189 psi(g).
NGMs performance
is based on 20°C/7 bar at membrane (1000Mbar) + /-5%.
