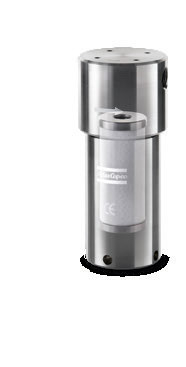

Atlas Compressed Air Filters H Series Guaranteed Air Purity Up To 350 Bar

Atlas H Series Compressed Air Filters Guaranteed Air Purity Up To 350 Bar

Guaranteed air purity up to 350 bar

High pressure filters efficiently reduce oil aerosol, dust and wet dust, particulates, water droplets and oil vapor in your compressed air stream to protect your investment, equipment and processes. Our innovative high pressure filtration solutions are engineered to cost effectively provide the best air purity and meet today’s increasing quality demands up to working pressures of 350 bar. All high pressure filter housings are hydraulically tested to ensure safe and reliable operation at all times. A pressure test certificate accompanies each filter.

YOUR BENEFITS

Maximum contaminant removal (dry & wet dust, particulates, oil aerosol and water droplets)

High-efficient glass fiber and fleece media.

Significant energy savings & limited system operation cost

Optimal design and filter media allow for low pressure losses.

High reliability

High-performance stainless steel cores, double O-rings, epoxy sealed caps and anti-corrosive coated filter housing.

Applications

• Chemical

• Food & beverage

• Manufacturing

• Military

• Oil & gas

Example

• Working pressure 300 bar(g), compressed air flow 500 m³/h.

• Multiply the nominal capacity of the selected filter with the corresponding correction factor at the required working pressure to obtain the capacity at working pressure:

- Size 510+: 510 m³/h * 0.96 = 490 m³/h => the 510+ filter size is not large enough.

- Size 750+: 750 m³/h * 0.96 = 720 m³/h => the 750+ filter size is the size to select.
