Product Details:
|
| Frequency: | 50HZ | Starting System: | Electric Starter |
|---|---|---|---|
| Weight: | 950 Kg | Mater Lifting: | Electric Lifting |
| Type: | Open Type | Warranty: | 1 Year |
| Voltage: | 400V | Noise Level: | 65 DB |
| Highlight: | Intelligent Parallel Control Power Generator,Efficiency Power Generator,QES30 Power Generator |
||

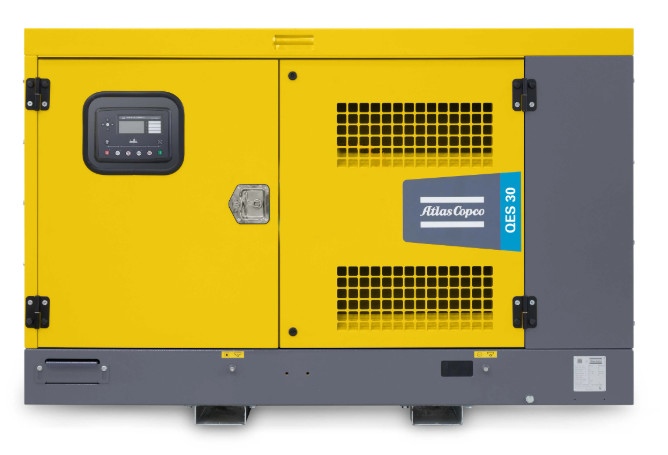

The versatile QES generators
QES 30
A standby generator is an essential part of any company’s performance network. It needs to be ready and able to provide power in the event of an electrical supply interruption.You need to be sure that the generator will sense the urgent need and provide an instant response, with guaranteed performance, at exactly the moment it’s needed.
We have extended our QES range with the new models up to 1250 kVA PRP to ensure we offer the generator that’s right for your business. Built to our time-tested design principles,used across our entire generator portfolio, the QES range offers you modular capabilities and room for upgrading and expansion; along with being designed for simple installation and exceptional reliability.
Standard Features
Integrated control and power cabinet:
• Qc series control system (multi-language interface including Chinese and English)
• Integrated SCADA function, suitable for RS485 communication port
• 4-pole circuit breaker
• Multiple control system models are available, and can be upgraded to intelligent parallel control system
• Integrated control and power output system, more convenient operation
Transport efficiency:
• Built-in single-point lifting beam (optional), strong structure and easy transportation
• Built-in integrated forklift slot
• Hot-dip galvanized forklift slot process can effectively avoid scratches caused by transportation, and the overall structure is more stable
Superior accessibility:
• Large service doors and panels for optimal serviceability
• Access to alternator (AVR and diode bridge)
• Full engine access
• Direct access to radiator panel for cleaning
• Access to external drain points
Installation efficiency:
• Plug-and-play cable wiring busbars
• Reasonable cable wiring position and natural cable bending
• Protection of high-temperature components, fans and belts
• Anti-spill base frame with sensor alarm function
Excellent performance:
• Sturdy maintenance door structure
• Double-layer powder coating process for galvanized box, C3M corrosion protection grade
• Unique sound-absorbing cotton, better flame retardant and noise reduction effect
• "Bump lock" design, reducing failure rate and improving safety
• Vertical muffler design, better heat dissipation and noise reduction
• Auxiliary winding of AC generator, higher safety
• Electronic speed governor engine
Maintenance efficiency
• Overall structure makes maintenance easier
• High quality and low maintenance of key components
• Maintenance intervals up to 500 hours
Technical data
| Electrical data | QES 30 | |
| Rated frequency | Hz | 50 |
| Rated voltage | V | 400 |
| Prime power(PRP) | kVA/kW | 30/24 |
| Rated standby power(ESP) | kVA/kW | 33/26 |
| Power factor cos φ | 0.8 | |
| Rated current | A | 43 |
| Working environment temperature (minimum/maximum | ℃ | 10/50 |
| Fuel consumption | ||
| Standard fuel tank capacity | L | 73 |
| Fuel consumption at 75% load | L/H | 5.6 |
| 75% load continuous running time | H | 13 |
| Control System | ||
| Brand | Atlascopco | |
| Model-standard | Qc2011 | |
| Powertrain | ||
| Brand | Kubota | |
| Model | RPM | V3300DO-E2BG |
| Speed | KW | 1500 |
| Rated net power | 28 | |
| Speed control | Electronic speed control | |
| Number of cylinders | 4 | |
| Coolant | water-cooled | |
| Power System | ||
| Brand | Atlascopco | |
| Model | ACA180E | |
| Rated output power | KVA | 32 |
| Protection level | IP | 23 |
| Insulation class | H | |
| Noise Level | ||
| Sound pressure level at 7 meters (LpA) | dB(A) | 65 |
| Dimensions and weight | ||
| Length x width | mm | 1900*971*1260 |
| Net weight (standard) | kg | 950 |
