OIL-INJECTED ROTARY SCREW AIR COMPRESSORS ATLAS G30
Click to open our catalog:G2-90 wuxi leaflet EN 2935081343.pdf
Atlas Copco worldwide
Atlas Copco. based in Stockholm. Sweden and founded in 1873. is an industrial group with a world-leading position in compressors.construction and mining equipment. power tools and assembly systems. Atlas Copco provides optimized compressed air solutions through sustainable productivity.

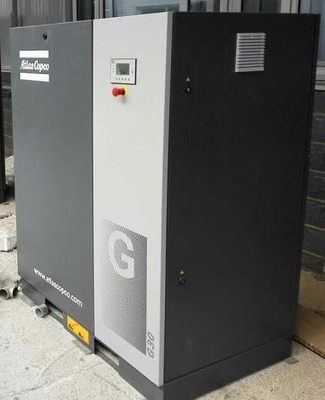

Brand new G series Durable screw compressor
Atlas Copco's new G 2-90 series adheres to Atlas Copco's consistent customer commitment and provides powerful and highly reliable oil-injected screw air compressors for small and medium-sized users.
Strong and durable, with many choices
Atlas Copco's G series air compressors provide you with superior sustainability, reliability and performance while saving investment costs. This series of products is designed to provide you with a cost-effective compressed air solution that meets the most basic needs, can operate normally under harsh working conditions, and protect your production.
Mature drive system
• Inherited mature rotor design, high reliability
• High-quality V-belt drive, high efficiency and long life (applicable to G 2-22)
• High-efficiency gear drive, no coupling efficiency loss (applicable to G 30-90)
• Standard model maximum operating ambient temperature 46˚C
Reliable motor
• Motor efficiency level IE3
• Protection level IP55, insulation level F, temperature rise level B
• Suitable for continuous operation in harsh environments
Simple control
• Simple operation interface, durable buttons
• Integrated control and protection, high reliability
• Elektronikon® touch screen controller, visualizing compressor status (option)
Sturdy spin-on oil filter
• Efficiently filters impurities in the oil and extends the service life of parts
• Oil filter with bypass valve
High-efficiency oil separation system
• High-quality vertical oil separation tank design, good separation effect, low oil content
• Refined design of oil separation tank to reduce compressed air loss during loading/unloading cycle
Easy to install
• Easy and quick maintenance
• Easy to move by forklift
• Compact and takes up little space
Specifications:
| compressor type |
Maximum pressure |
Air Capacity |
Motor power |
Noise |
Weight(without gas tank) |
Weight(with gas tank) |
Outlet |
| Standard |
Full Performance |
Standard |
Full Performance |
| Bar(e) |
psl |
l/s |
m³/min |
cfm |
Kw |
hp |
dB(A) |
P(kg) |
FF(kg) |
P(kg) |
FF(kg) |
| G30 |
7.5 |
109 |
90 |
5.4 |
191 |
30 |
40 |
72 |
674 |
/ |
/ |
/ |
G1 1/2" |
| 8.5 |
123 |
86 |
5.18 |
183 |
30 |
40 |
72 |
674 |
/ |
/ |
/ |
| 10 |
145 |
80 |
4.79 |
169 |
30 |
40 |
72 |
674 |
/ |
/ |
/ |
* Unit performance measured according to ISO 1217, Annex C, Edition 4:2009.
Reference conditions:
• Absolute inlet pressure 1 bar (14.5 psi)
• Intake air temperature 20°C, 68°F
FAD is measured at the following working pressures:
• 7.5 bar versions at 7 bar
• 8.5 bar versions at 8 bar
• 10 bar versions at 9.5 bar
• 10.5 bar serion at 10 bar
• 13 bar versions at 12.5 bar
