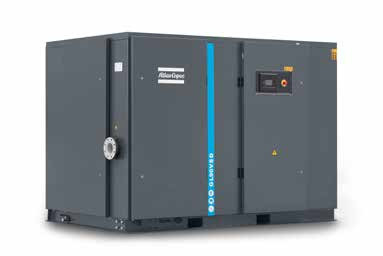

Atlas Copco Air Compressor GL55-90 - High-efficiency IE3 Motor With F-class Insulation And B-class Temperature Rise

Large Image : Atlas Copco Air Compressor GL55-90 - High-efficiency IE3 Motor With F-class Insulation And B-class Temperature Rise

Product Details:

Place of Origin:	China
Brand Name:	Atlas
Certification:	CE,ISO
Model Number:	GL 55-90

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	be negotiabled
Packaging Details:	Atlas standard packing
Delivery Time:	7-30days
Payment Terms:	T/T, Western Union, L/C, D/P, D/A
Supply Ability:	100pcs per month

Contact Now

Atlas Copco Air Compressor GL55-90 - High-efficiency IE3 Motor With F-class Insulation And B-class Temperature Rise

Description

Maximun Working Pressure:	5.5 Bar	Motor Power:	55-90kw
Warrantly:	1 Year	Type:	Rotary Screw Oil-injected
Dimensions:	284517501930 Mm	Frequency:	50Hz
Motor Efficiency:	IE3	FF Available:	Built-in Dry Available
Highlight:	B-class air compressor , Atlas Copco air compressor , IE3 air compressor

Oil-injected screw air compressor

GL 55-90

The Smart Choice for Highly Reliable, Energy Efficient Applications

1.Advanced low-pressure screw mainframe

- Advanced asymmetric rotor profile design, large air volume, low energy consumption.

- Equal diameter design of rotor, close rigidity of yin and yang screws, better overall strength.

- Specially designed for low-pressure head, no over-compression, more energy-saving.

2.High efficiency motor

- High-efficiency IE3 motor, F-class insulation, B-class temperature rise, can ensure normal operation in harsh environments.

- SKF bearings ensure long motor life

- Equipped with phase sequence protector as standard, effectively preventing the motor from reversing.

3.Enlarged high-efficiency oil and gas separation system

- Reduced system pressure drop, effectively reducing energy consumption

- Oil content less than 2PPM, low oil consumption, lower maintenance costs, longer service life.

4.Pre-filter

- Air inlet filtration, effective protection of internal components, prolonging the life of the product

- Easy to disassemble and reuse

5.Heavy Duty Filter

- Removes 99.9% of coarse dust particles and protects compressor components.

- Extra large dust capacity for longer maintenance intervals.

6.Enlarged design of oil cooler and aftercooler

- Longer oil life due to lower rotor outlet temperature

- Elimination of thermal shock in the heat exchanger

- Elimination of thermal shocks in the heat exchanger Reduced system pressure drop and lower energy consumption

7.Elektronikon® touch screen controller

- Built-in intelligent algorithms to optimise system pressure and reduce overall energy consumption

- Remote control, alarm outputs, maintenance scheduling and network diagnostics.

- Built-in Smartlink remote monitoring to keep track of the system status.

Flow chart

Technical parameters

Type	Maximum working pressure		FAD*			Motor power		Noise	Weight	Outlet
Type	bar(e)	psig	I/s	m³/min	cfm	kW	hp	dB(A)	kg	Outlet
GL 55	5.5	80	215.7	12.94	457	55	75	77	2600	DN100
GL 75	5.5	80	298.7	17.92	632.9	75	100	77	2900	DN100
GL 90	5.5	80	378	22.68	800.9	90	120	77	3040	DN100

Dimension:

L*W*H:2845*1750*1930mm
