Product Details:
|
| Warranty: | 1 Year | Type: | Dry Screw Vacuum Pump |
|---|---|---|---|
| Weight: | 532kg | Dimensions: | 23 X 10.5 X 13.1 Inches |
| Power Source: | Electric | Motor Power: | 12kw |

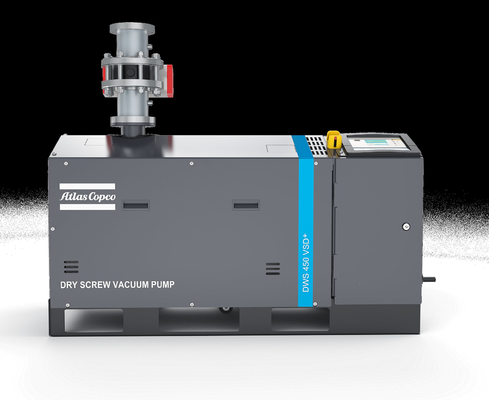

| Model: | DWS 450 VSD+ | Voltage: | 110V/220V |
| High Light: | Harsh Environments Dry Screw Vacuum Pump,Industrial Dry Screw Vacuum Pump |
||
1.Higher operating performance and stable vacuum level
| Metric | Inch | ||||
| Performance | Peak pumping speed | m³h⁻¹ | 450 | CFM | 265 |
| Ultimate pressure | mbar | <0.01 | Torr | <0.008 | |
| Full load motor power | At ultimate vacuum | KW | 6 | throttle | 8 |
| At maximum load | KW | 12 | throttle | 16 | |
| Vacuum connection | Inlet connection | ISO 100 | ISO 100 | ||
| Exhaust connection | NW50 | NW50 | |||
| Cooling water | Connection | G3/8"internal thread | G1/2"internal thread | ||
| Flow rate | l·min⁻¹ | 10 | gal-min-1 | 2.6 | |
| Supply pressure(max) | bar | 6.9 | psig | 100 | |
| Pressure drop(min) | bar | 1 | psig | 14.5 | |
| Temperature | ℃ | 5-40 | °F | 41-104 | |
| Purging gas | Connection | G1/2"internal thread | G1/2"internal thread | ||
| Pressure | bar | 2.5-6.9 | psig | 43.5-100 | |
| Purging gas flow rate | l·min⁻¹ | 12 | l·min⁻¹ | 12 | |
| Gas ballast flow | l·min⁻¹ | 0-128 | l·min⁻¹ | 0-128 | |
| Dperating parameters | Noise | dB(A) | <64 | dB(A) | <75 |
| Operating temperature | ℃ | 5-40 | °F | 41-104 | |
| Exhaust back pressure (upper limit) | mbar | 1200 | psia | 17.4 | |
| Lubricating grease (as supplied) | PFPE Drynert 25/ 6 | PFPE Drynert 25/ 6 | |||
Dimensions
