Product Details:
Place of Origin: China
Brand Name: Atlas
Certification: CE,ISO
Model Number: GVD 18
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: be negotibled
Packaging Details: Atlas standard packing
Delivery Time: 7-30days
Payment Terms: T/T, Western Union, L/C, D/P, D/A
Supply Ability: 100pcs per month

Flexible Coupling AC Vacuum Pump GVD 18 For Single Or Three Phase Motor

Description
Inlet Port Size: KF25 Warranty: 1 Year
Frequency: 50,60Hz Voltage: 220V
Weight: 39KG Model: GVD 18
Power Source: Electric Oil Capacity: 0.75-1.05L
High Light:

Three Phase Motor AC Vacuum Pump

,

Single Phase Motor AC Vacuum Pump

,

Flexible Coupling AC Vacuum Pump

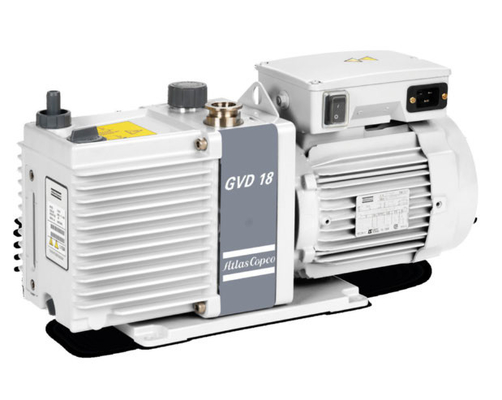

2 STAGE OIL-SEALED ROTARY VANE VACUUM PUMPS

GVD 18





FEATURES AND BENEFITS

• The pump is designed for reliable, long-term operation.
• Thermal overload device prevents overheating(single phase only).
• The pump is a free-standing unit.
• The drive is provided through a flexible coupling by a single-phase or three-phase (four pole) motor.
• The motors are totally enclosed and are cooled by the motor-cooling fan.
• Easy to use controls.
• Pressure die cast oil box with integral oil seals prevents oil leaks.
• Gas ballast valve for large water vapour handling capacity.
• Externally approved to EN61010, CSA, C22.2 and UL61010.
• Oil distribution valve.
• Pumping chambers are air-tight.
• Oil sight-glass, two oil drain-plugs, inlet-port and outlet nozzle all fitted as standard.


TECHNICAL SPECIFICATIONS
Flexible Coupling AC Vacuum Pump GVD 18 For Single Or Three Phase Motor 0



PERFORMANCE CURVES
Flexible Coupling AC Vacuum Pump GVD 18 For Single Or Three Phase Motor 1Flexible Coupling AC Vacuum Pump GVD 18 For Single Or Three Phase Motor 2
