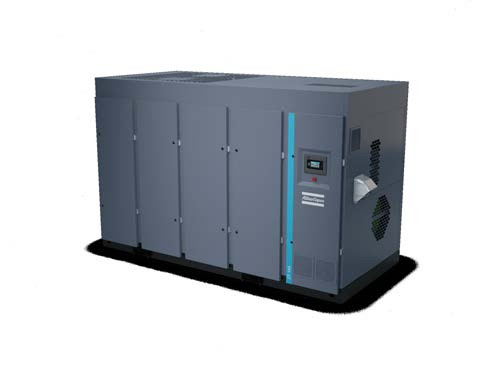

ZT90-160(VSD) Atlas Copco Oil Free Screw Air Compressor For Critical Industries

Oil-free rotary screw compressor

ZT90-160(VSD)

Class 0: the industry standard

Class 0: oil-free air

Oil-free air is used in all kinds of industries where air quality is paramount for the end product and production process. These applications include food and beverage processing, pharmaceutical manufacturing and packaging, chemical and petrochemical processing, semiconductor and electronics manufacturing, the medical sector, automotive paint spraying, textile manufacturing and many more. In these critical environments, contamination by even the smallest quantities of oil can result in costly production downtime and product spoilage.

First in oil-free air technology

Over the past sixty years Atlas Copco has pioneered the development of oil free air technology, resulting in a range of air compressors and blowers that provide 100% pure, clean air. Through continuous research and development, Atlas Copco achieved a new milestone, setting the standard for air purity as the first manufacturer to be awarded ISO 8573-1 CLASS 0 certification.

Eliminating any risk

As the industry leader committed to meeting the needs of the most demanding customers, Atlas Copco requested the renowned TÜV institute to type-test its range of oil-free compressors and blowers.Using the most rigorous testing methodologies available, all possible oil forms were measured across a range of temperatures and pressures. The TÜV found no traces of oil at all in the output air stream. Thus Atlas Copco is not only the first compressor and blower manufacturer to receive CLASS 0 certification, but also exceeds ISO 8573-1 CLASS 0 specifications.

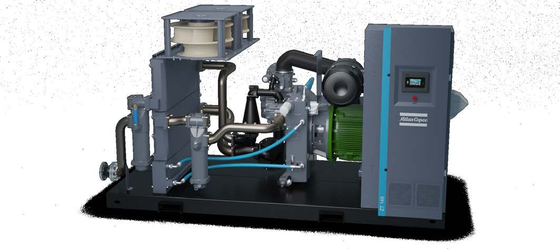

Proven Z technology: ZT (air-cooled) version

High efficiency motor

• IP 55 TEFC motor protects against dust, chemicals and humidity.
• Continuous operation under severe ambient temperature conditions.

Efficient intake air filtration
• 2-stage dust removal system (99,9% for 3 micron).
• Efficient protection of the compressor.
• Minimum intake losses and low pressure drop.

High efficiency coolers
• Compact and efficient design with low air approach temperature and low pressure drop.
• Water separator to efficiently separate the condensate from the compressed air.
• Low moisture carry-over protects downstream equipment.

100% oil-free air (Class 0)

• Unique Z seal design guarantees 100% certified oil-free air.
• Superior rotor coating for high efficiency and durability.
• Cooling jackets to ensure world class compression in different conditions.

Complete plug-and-play package

• All-in-one solution: fault-free installation, easy commissioning and quick start-up.
• Includes internal piping, coolers, motor, drive, lubrication and control system.

Reliable load/unload regulation

• No external air supply required.
• Mechanical interlock of inlet and blow-off valve.
• Low unload power.

Sound proof design

• Silenced canopy ensures optimal working conditions for everyone in the immediate environment.
• Optimized internal ducting and integrated pulsation damper to reduce the noise level.

Ease of maintenance

• Minimal service time with service parts grouped together for ease of access.
• All components are designed for serviceability and long lasting lifetime.
• Optional service plans available to extend the warranty.

Advanced touch screen monitoring system

• User-friendly Elektronikon® Touch, with enhanced connectivity potential.
• Integrated smart algorithms to optimize system pressure and maximize energy efficiency.
• Included warning indications, maintenance scheduling and online visualization of the machine’s condition.

Optimize your system
With the ZT, Atlas Copco provides an all-in-one standard package incorporating the latest technology in a built-to-last design. To further optimize your ZT’s performance or to simply tailor it to your specific production environment, optional features are available.

Flowchart ZT
Process flow, oil flow and cooling flow - step by step

Technical specifications
ZT 90-160 (FF)

ZT 90-160 VSD (FF)

Dimensions:
