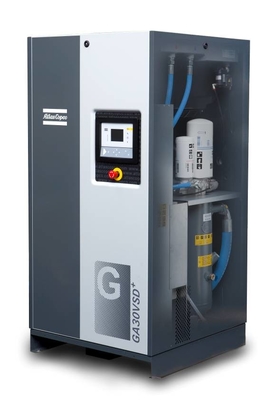

7-37kw VSD Plus GA7-37VSD+ Atlas Screw Air Compressor

Oil-injected rotary screw compressors
GA 7-37 VSD+ (7-37 kW/10-50 hp)

Click to open our catalog:GA 7-37 VSD+ Leaflet English 2935 0981 45.pdf

A new standard in compressed air performance and efficiency
Atlas Copco’s GA 7-37 VSD+ is a true game changer for your operational environment. It reduces energy consumption by on average 50% and assures performance even in the harshest conditions. The GA 7-37 VSD+ comes with Variable Speed Drive as standard, our in-house designed iPM motor technology, and advanced connectivity. The result is a compact compressor that fits in the smallest room and that sets a new standard in efficiency and performance for years to come.

Small Models, Great Wisdom

• Innovative
Atlas Copco has revolutionized compressor build and performance. Instead of the normal space-taking horizontal design, the new GA 7-37 VSD+
has an upright, compact layout. This saves valuable floor and work space, eases maintenance access, and reduces the total cost of ownership for all customers.

• Efficient
1) Reduced energy consumption by 50% on average compared to the current idling models.
2) Free Air Delivery (FAD) increase of up to 12%.

• Reliable
1) Low maintenance: fewer components,increased uptime.
2) Based on the unique combination of proven technologies and existing components,optimally brought together by Atlas Copco’s experience and know-how.

• Smart
1) Easy monitoring and maintenance thanks to the Elektronikon® Touch controller.
2) Maintenance notifications and machine status are available via SMARTLINK e-mail or text messages.
3) Customized reports on the energy performance of your machine, in compliance with ISO 50001.

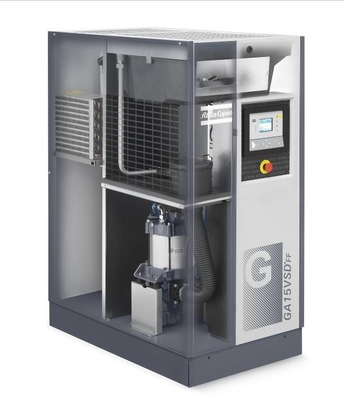

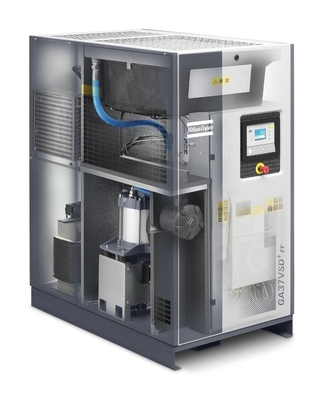

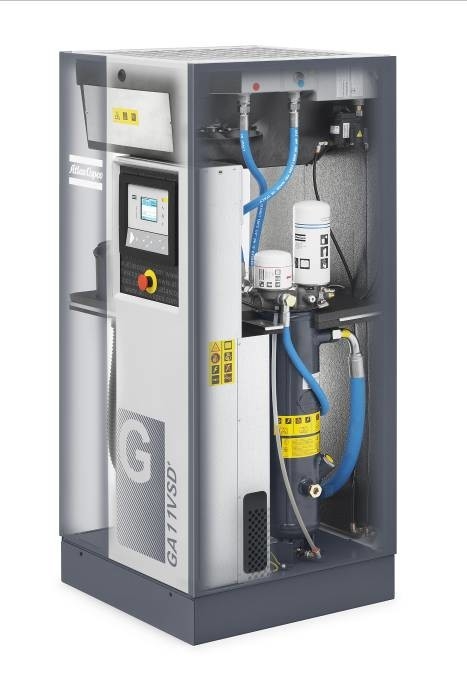

Inside the innovative GA7-37 VSD+

1.Interior Permanent Magnet (iPM) motor
• Compact, customized design for optimal cooling by oil.
• Designed in-house in Belgium.
• IP66 protection rating.
• No cooling air flow required.
• Oil-lubricated motor bearing:no (re)grease(ing), increased uptime.

2.Element
• Made by Atlas Copco.
• Robust and silent.

3.Direct drive
• Vertical design, fewer parts.
• Oil-cooled, pressure-tight.
• No gears or belts, no shaft seal.
• Compact: footprint down 60%.

4.Innovative fan
• Based on the newest technologies.
• In compliance with ERP2015 efficiency.
• Low noise levels.

5.Robust oil filter/separator
• Integrated bypass valve with the oil filter.
• Easy maintenance.

6.Electronic no-loss water drain
• Included as standard.
• Efficient removal of condensate without loss of compressed air.
• Manual integrated bypass for effective condensate removal in case of power failure.

7.Elektronikon® Touch controller
• High-tech controller with warning indications, compressor shut-down and maintenance scheduling.
• Easy to use and designed to perform in the toughest conditions.
• Standard SMARTLINK remote monitoring to maximize air system performance and energy savings.
• Optional multiple compressor control (2, 4 or 6 compressors).

8.Sentinel valve
• No inlet arrestor.
• No blow-off or pressure drop losses.
• Maintenance-free.

9.VSD+ cubicle
• VSD+ is superior to idling machines.
• Electrical components remain cool,enhancing their lifetime.
• Dedicated drive for iPM technology motors.
• 5% DC choke as standard.
• Heat dissipation of inverter in separate compartment.

Why Atlas Copco Variable Speed Drive+ technology?
• On average 50% energy savings with an extensive flow range (20-100%).
• Integrated Elektronikon® Touch controller controls the motor speed and high-efficiency frequency inverter.
• No wasted idling times or blow-off losses during operation.
• Compressor can start/stop under full system pressure without the need to unload.
• Eliminates peak current penalty during start-up.
• Minimizes system leakage due to a lower system pressure.
• EMC compliance to directives (2004/108/EG).
*Compared to fixed speed compressors, based on measurement performed by an independent energy audit agency.

Technical specifications GA 7-37 VSD+
