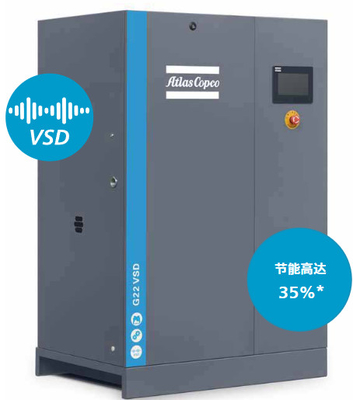

Low Operating Costs With G 7-22 VSD Technology And Oil Injected Rotary Atlas Screw Air Compressor

I'm Online Chat Now

Low Operating Costs With G 7-22 VSD Technology And Oil Injected Rotary Atlas Screw Air Compressor

Low Operating Costs With G 7-22 VSD Technology And Oil Injected Rotary Atlas Screw Air Compressor
Low Operating Costs With G 7-22 VSD Technology And Oil Injected Rotary Atlas Screw Air Compressor

Large Image :  Low Operating Costs With G 7-22 VSD Technology And Oil Injected Rotary Atlas Screw Air Compressor

Product Details:
Place of Origin: China
Brand Name: Atlas
Certification: CE,ISO
Model Number: G7-22VSD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: be negotibled
Packaging Details: Atlas standard packing
Delivery Time: 7-30days
Payment Terms: T/T, Western Union, L/C, D/P, D/A
Supply Ability: 100pcs per month

Low Operating Costs With G 7-22 VSD Technology And Oil Injected Rotary Atlas Screw Air Compressor

Description
Application: Atlas Air Compressor Power Source: Electric
Core Components: Motor, Other Lubrication Style: Lubricated
Oil Type: Synthetic Warrantly: 1 Year
Machine Type: Oil Injected Screw Air Compressor Material: Aluminum Alloy
Motor Power: 15~26kw Working Pressure: 4-10 Bar
High Light:

Atlas screw air compressor

,

Oil Injected screw air compressor

Oil-injected rotary screw compressors

G 2-7 VSD(1-7KW/3-10hp)



Small model, big energy saving

Even small businesses have an urgent need to save energy when it comes to compressed air. The G 7-22 VSD gives you the best performance of Atlas Copco while keeping your production running smoothly and reliably for many years. On the other hand, its VSD technology ensures energy savings of up to 35% *, while low installation and maintenance requirements keep operating costs down for you.





1.Top performance

1).Built for continuous use.

2).Reliable operation in up to 46℃/115°F

3).Less stress on key components and lower starting currents.

4).Standard high temperature thermostat valve.

2.Low operating costs

1).VSD technology enables up to 35% energy savings.

2).IE4 High Efficiency Oil Cooled Permanent Magnet (IPM) Motor.

3).Advanced components deliver more air with greater efficiency.

3.Easy to install and maintain

1).Floor or tank mount versions are available.

2).The smaller footprint ensures flexibility of installation.

3).The main components, oil separators and filters are easy to maintain.







Variable frequency drive

Low Operating Costs With G 7-22 VSD Technology And Oil Injected Rotary Atlas Screw Air Compressor 0

1. Efficient drive system
●Drive system with high efficiency permanent magnet motor (IPM), according to IE4 standard.
●Reasonable, delicate design, can achieve excellent oil cooling effect.

●IP54 protection.



2. W-fin cold hoops system
● W fin design ensures reliable operation in harsh conditions.
●Axial fans enhance cooling performance.



3. Electrical cabinet
● Advanced touch screen controller.
● Frequency converter, designed for air compressors, can achieve excellent self-regulating control in abnormal conditions.


4. Durable oil filter / oil separator
●Lubrication oil filter with integrated bypass valve.
●Service is quick and easy.







Why do you need VSD?
The G7-22VSD's variable speed drive technology enables the motor speed of the press to match your air needs. This results in energy savings of up to 35% * compared to conventional loading / unloading machines. In addition, G VSD's oil-cooled permanent magnet motors can be started and stopped at full system pressure without offloading. It also eliminates peak current shocks during start-up.







G 7-22 VSD Technical parameters:

(Reference condition:

Absolute intake pressure: 1 bar,

Air intake temperature: 20 °C)

Compressor type Working pressure Capacity FAD Installed motor power Noise Weight
bar(e) psig I/s m²/min cfm kW hp dB(A) kg
50Hz VERSION
G7VSD 4 58 6.38-19.35 0.38-1.16 13.52-41.00 7.5 10 67 175
7 102 6.06-18.94 0.36-1.14 12.85-40.13 7.5 10 67 175
10 146 5.74-15.60 0.34-0.94 12.17-33.05 7.5 10 67 175
G11VSD 4 58 7.83-29.04 0.47-1.74 16.59-61.53 11 15 67 175
7 102 7.68-28.32 0.46-1.70 1626-60.01 11 15 67 175
10 146 6.92-23.86 0.42-1.43 14.67-50.56 11 15 67 175
G15VSD 4 58 8.11-35.10 0.49-2.11 17.18-7437 15 20 67 175
7 102 8.08-34.56 0.48-2.07 17.12-73.23 15 20 67 175
10 146 7.42-28.51 0.45-1.71 15.72-60.41 15 20 67 175
G18VSD 4 58 10.32-55.93 0.62-3.36 21.86-118.50 18.5 25 72 276
7 102 10.19-54.93 0.61-3.30 21.59-116.40 18.5 25 72 276
10 146 9.67-46.42 0.58-2.79 20.49-98.36 18.5 25 72 276
G22VSD 4 58 9.63-65.39 0.58-3.92 20.4-138.60 22 30 72 276
7 102 9.28-64.41 0.56-3.86 19.67-136.50 22 30 72 276
10 146 9.64-55.39 0.58-3.32 20.43-117.40 22 30 72 276







Dimensions:

Model Standard model
Length(mm) Width(mm) Height(mm) Outlet
G 7-15VSD Standard type 770 620 970 G3/4"
G 7-15VSD Tank type 1520 620 1470 G3/4"
G 18-22VSD Standard type 978 695 1473 G1"





Options:

●RXD oil

●Food-grade oil

●Integrated water separator and drainage valve

●Emc wave filter

●Remote Operation / Alarm

●Test report

●Eyewitness test

●Wooden case packing
