Product Details:
|
| Noise Leval: | 72±2 DB(A) | Standard: | CE/ISO/SGS |
|---|---|---|---|
| Oduct Name: | Screw Air Compressor | Start Method: | VARIABLE FREQUENCY STARTING |
| After Warranty Service: | Online Support | Exhaust Pressure: | Accurate |
| Core Components: | Motor, Airend |

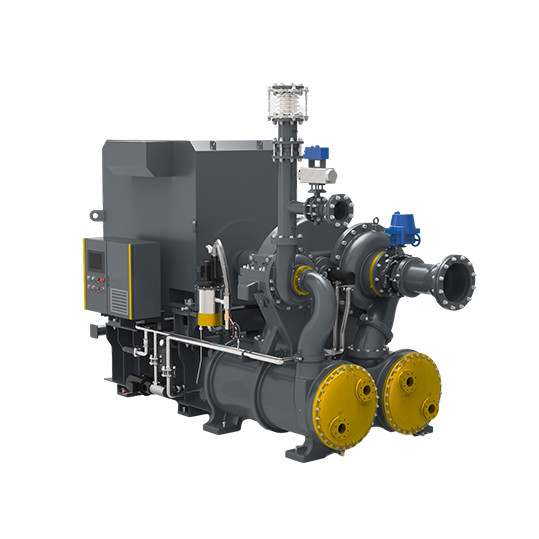

Product description:
1.100% oil free, according to ISO CLASS 0.
2.High performance impeller, using titanium alloy or stainless steel, large flow coefficient inlet guide valve (IGV) control, wide adjustment range, constant pressure.
3.One piece casting body, stable and reliable structure.
4.American aviation grade gear, precision AGMA13, ultra-long life.
5.Horizontal split design, maintenance simple.
6.Intelligent control, unattended.
ATB series parameters:
| Model | Pressure(Mpa) | Air capacity(m³/min) | Power(KW) | Dimension(mm) | Weight(KG) |
| ATB 300 | 0.06-0.9 | 24-48 | 132-263 | 2750×1550×1820 | 3800 |
| ATB 600 | 0.06-1.2 | 45-82 | 248-450 | 3280x1850×2200 | 6300 |
| ATB 900 | 0.06-1.2 | 76-122 | 400-640 | 3800×2000×2250 | 8160 |
| ATB 1200 | 0.06-1.2 | 118-150 | 630-800 | 4200×2150×2350 | 11500 |
| ATB 1500 | 0.06-1.6 | 118-228 | 760-1300 | 4200×2150×2350 | 12000 |
| ATB 2000 | 0.06-1.6 | 186-310 | 980-1600 | 4600×2200×2500 | 17200 |
| ATB 3000 | 0.06-1.6 | 268-438 | 1380-2250 | 5300×2300×2970 | 21500 |
