Product Details:
|
| Power Source: | Electric | Bearing: | Sweden SKF |
|---|---|---|---|
| Efficiency: | High | Configuration: | Stationary |
| Power: | 380V/3Phase/50Hz | Port: | Shenzhen Or Shanghai Or Other Main Port |
| Electricity: | Three Phase 380/60 Or 440/60 (V//Hz) | Cooling Method: | Air |
| Condition: | New | Application: | Industrial |
| High Light: | AET Series piston-pressure booster compressor,Oil Free Piston pressure Booster Compressor |
||

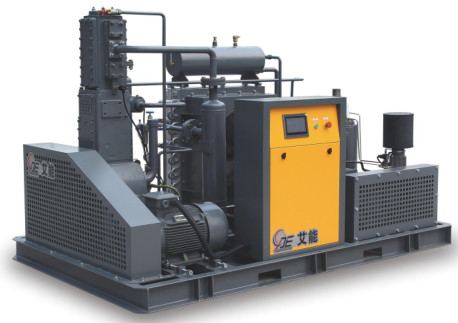

Medium-pressure series of air compressor
Gas displacement:1.0~4.0m/min
Discharge pressure: 1.5~4.0Mpa
Installed power:11~45KW
Product features:
·Primary screw discharge pressure 10.0~12.0MPa
·Smaller inter-stage compression ratio, more energy-efficient
·High-efficiency cooling system, air-cooling and water-cooling combined Originally creative built-in circulation cooling tank makes the cylinder and ·stuffing cooled through water pipe without external connect with cooling tower
Technical Parameters:
| Model | POWER(KW) | Shaft Power(KW) | FAD(m) | Pressure(kg/cm²) | speed(rpm) | Piping Size | Weight(kg) | externaldimensions(mm) | water consumption(T/h) | |
| Outlet Size | The cooling waterinlet and outlet size | |||||||||
| AET-2.0/30(Z) | 22.5 | 19 | 2.0 | 30 | 520 | Rc1" | N/A | 1500 | 2150*1200*1200 | N/A |
| AET-4.0/30(Z) | 45 | 40 | 4.0 | 30 | 520 | Rc1" | N/A | 2000 | 2700*1600*1650 | N/A |
| AET-2.0/4(Z) | 22.5 | 20 | 2.0 | 40 | 520 | Rc1" | N/A | 1500 | 2150*1200*1200 | N/A |
| AET-4.0/40(Z) | 45 | 42 | 4.0 | 40 | 520 | Rc1" | N/A | 2000 | 2700*1600*1650 | N/A |
