Product Details:
|
Power Source: | Electric | Operating Temperature: | 5-45 Degrees Celsius |
---|---|---|---|
Efficiency: | Up To 90% | Warranty: | 1-5 Years |
Lubrication Styletype: | Lubricated | Coolinh: | W-fin Cooling System |
Control System: | Electronic | Cooling Method: | Air/Water |
Highlight: | Enhanced Cold System Screw Air Compressor,High Temperature Environments Screw Air Compressor |

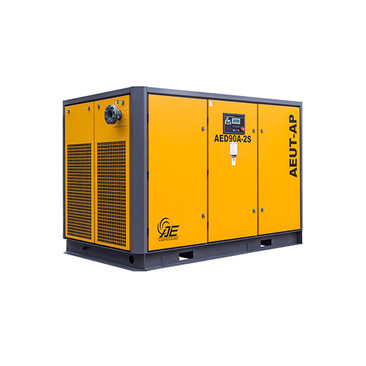

AED-2S AEDV-2S series double stage screw compressor
they adopts parallel double stage compression form; Compared with the single stage compressor, it has the advantages of large capacity, high compression efficiency, and can significantly reduce energy consumption. The whole machine adopts box-type structure, highlighting humanized design, reserving spacious maintenance space, and facilitating equipment maintenance; Reliable and durable with efficient NEMA motors and quality parts.
Product introduction:
1.The main engine adopts two-stage parallel rotor to reduce compression ratio, high compression efficiency and large exhaust volume.
2.Two-stage compression approaches isothermal compression, enabling up to 15% energy savings compared to single-stage compression.
3.Low speed design, bearing load is small, more durable, low noise.
4.SKF top class B-10 heavy-duty wear-resistant bearings with a design life of up to 100,000 h.
5.Enhanced cold system, adapt to 45 C high temperature environment.
6.Large capacity fuel and vapor separator, three-stage separation system, can achieve oil content below 3ppm, reduce operating costs, protect the downstream equipment.
7.Intelligent control system, reserved RS485 interface, complete functions, clear instructions, easy to operate.
8.AEDV frequency conversion series selection of frequency conversion using cutting-edge vector control technology, a wide range of adjustment.
