Product Details:
|
| Coolinh: | W-fin Cooling System | Lubrication Styletype: | Lubricated |
|---|---|---|---|
| Control System: | Elektronikon | Core Components: | Gearbox |
| Warranty: | 1 Year | Power Source: | Electric |
| Cooling Method: | Air Cooled | Compressor Type: | Oil-injected |
| High Light: | Oil Cooled Screw Air Compressor,Screw Air Compressor Energy Efficiency |
||
APM (S) Oil Cooled Series New Available. Energy efficiency goes beyond the national level. Compared with APM permanent magnet variable frequency motor, oil-cooled permanent magnet frequency conversion motor can further reduce energy consumption by 7%, save energy significantly, greatly reduce the total cost of compressor life cycle and improve production efficiency.
APM / APM-2S series integrated AE permanent magnet frequency conversion technology, through automatic adjustment of motor speed to make compressed air supply and demand match, accurate control of pressure, avoid unnecessary fluctuations, save energy consumption, reduce the use of costs.
Product introduction:
1.Super I Energy Efficiency Standard
2.Coaxial integrated structure, no transmission loss
3.Efficient and sensitive variable frequency control logic
4.High efficiency IPM permanent magnet brushless motor, IP65 protection level; The use of NdFeB magnetic materials, excellent magnetic properties, 180 °C working conditions without loss of magnetic permanent magnet
5.Shutdown can start immediately
6.Stable and reliable, 24 hours unattended

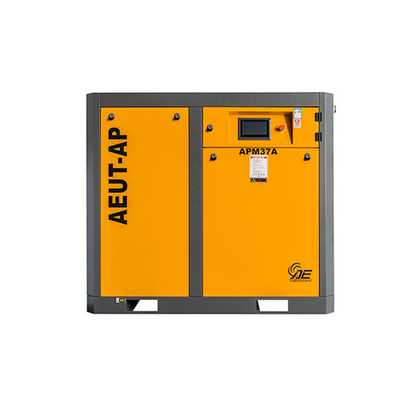

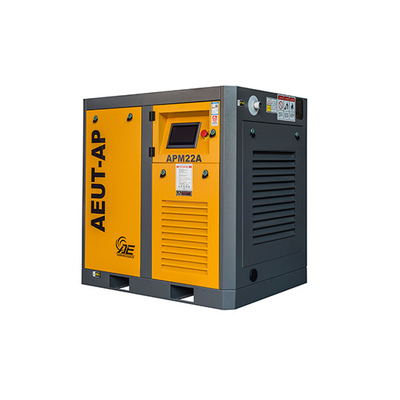

APM (S) Oil Cooled (Super Level 1 Efficiency) Series Parameters:
| Model | Pressure(Mpa) | Air capacity(m/min) | power(KW) | Outline Dimension(mm) | Weight(kg) | Outlet Dimension(mm) |
| APM15A-S | 0.7 | 2.4 | 15 | 1120×880×1120 | 460 | G1" |
| 0.8 | 2.3 | 15 | ||||
| APM22A-S | 0.7 | 3.7 | 22 | 1120×880×1120 | 500 | R1" |
| 0.8 | 3.6 | 22 | ||||
| APM37A-S | 0.7 | 6.43 | 37 | 1240×950×1260 | 800 | G1-1/2" |
| 0.8 | 6.33 | 37 |
