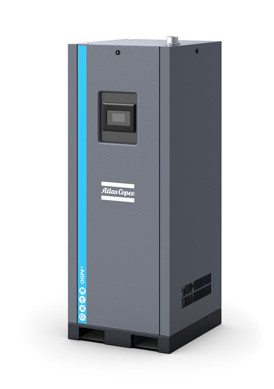

Product Details:
|
| Material: | Aluminum Alloy | Model No: | OGP+3~12 |
|---|---|---|---|
| Brand: | Atlas | Type: | PSA Generators |
| Oxygen Purity: | >95% | Advantage: | 30% Less Feed Air Than Traditional Generator |
| Highlight: | PSA Oxygen Generator Atlas,High Purity Oxygen Generator Atlas,Intelligent PSA Oxygen Generator |
||
Specifications
| Type | Oxygen FOD | Dimension | Weight | |||
| 90% | 93% | 95% | mm | kg | ||
| OGP3+ | FOD Nm³/h | 3.3 | 3.0 | 3.5 | 796X240X2015 | 318 |
| FOD Scfm | 1.9 | 1.8 | 1.5 | |||
| OGP6+ | FOD Nm³/h | 6.6 | 6.0 | 5.1 | 796X240X2015 | 400 |
| FOD Scfm | 3.9 | 3.6 | 3.0 | |||
| OGP9+ | FOD Nm³/h | 10.0 | 9.4 | 8.3 | 1421X840X2015 | 624 |
| FOD Scfm | 5.9 | 5.5 | 4.9 | |||
| OGP12+ | FOD Nm³/h | 13.3 | 12.5 | 11.1 | 1421X840X2015 | 706 |
| FOD Scfm | 7.8 | 7.4 | 6.5 | |||
FOD: Free Oxygen Delivery
Reference conditions:
- Compressed air effective inlet pressure: 6 bar(g)/87 psi(g)
- Ambient air temperature: 20°C/68°F
- Inlet air quality [1:4:1] according to ISO 8573-1:2010
- Outlet oxygen quality [1:2:1] according to ISO 8573-1:2010
Options
- Low ambient temperature settings (-10ºC/14ºF)
- Oxygen quality (PDP) monitoring
- Room oxygen alarm (wall mount)
Advanced features, superior benefits

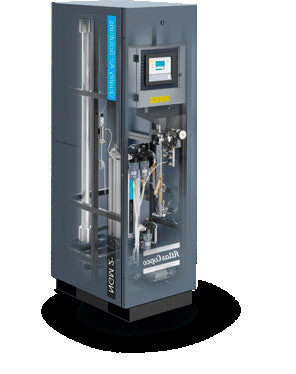

• Complete machine with O 2 sensor, digital flow meter, and pressure regulator included as standard.
• Small footprint thanks to:
- Best-in-class usage of zeolite molecular sieve (ZMS) adsorbent material.
- Intelligent-design and approval-friendly aluminum extrusions.
• Advanced controller with large HD color touchscreen offers easy gas purity selection, purity alerts, and connectivity options.
• Automatic start-up allows for plug-and-play installation.
• Feed air monitoring and interception.
• Oxygen purity monitoring and interception.
The zirconia oxygen sensor’s long lifetime reduces service intervention needs and costs.
A Secure Supply of Oxygen&On-Site Industrial Gases Oxygen Generator OGP84
Whether your company is specialized in chemical manufacturing, electronics, laser cutting or food and beverage, a dependable supply of industrial gas is crucial. Compared to the on-demand delivery of gas bottles or tanks, on-site production of gas offers a wealth of advantages ranging from cost savings to continuous availability. Atlas ’s advanced nitrogen and oxygen generators offer you the ultimate solution: flexible. on-site production of industrial gas at the lowest possible cost.
New generation membrane & PSA generators will change the market. Atlas ’s latest membrane and PSA generators extend the advantages of the current range. Total lifecycle cost consists of the initial investment cost of the on-site installation, the service cost, and the energy cost.
Wide range of applications
• Food & beverage • Pharmaceutical applications.
(storage & packaging)
• Plastic injection molding. • Electronics.
• Laser cutting. • Semiconductor manufacturing.
• Chemical applications. • Metal heat treatment.
• Cable & optical fiber. • Glass industries.
• Fire prevention. • Aquaculture.
The OGP oxygen generator works in a similar way, using Pressure Swing Adsorption technology to isolate oxygen molecules from other molecules in compressed air to leave high purity oxygen at the outlet of the generator. The OGP Series provides cost-efficient oxygen for applications such as waste water treatment, ozone production, health care, and the glass industry.
