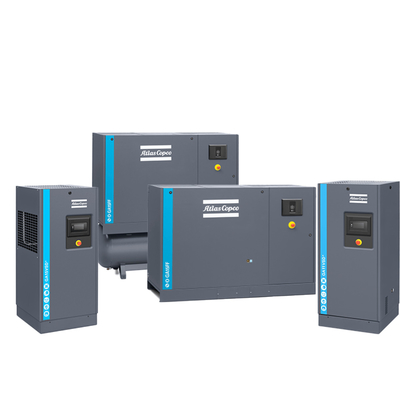

Oil Injected Atlas Screw Air Compressor Vsd Plus Ga37-110 Vsd+ 37-110kw Power

I'm Online Chat Now

Oil Injected Atlas Screw Air Compressor Vsd Plus Ga37-110 Vsd+ 37-110kw Power

Oil Injected Atlas Screw Air Compressor Vsd Plus Ga37-110 Vsd+ 37-110kw Power
Oil Injected Atlas Screw Air Compressor Vsd Plus Ga37-110 Vsd+ 37-110kw Power
Oil Injected Atlas Screw Air Compressor Vsd Plus Ga37-110 Vsd+ 37-110kw Power Oil Injected Atlas Screw Air Compressor Vsd Plus Ga37-110 Vsd+ 37-110kw Power

Large Image :  Oil Injected Atlas Screw Air Compressor Vsd Plus Ga37-110 Vsd+ 37-110kw Power

Product Details:
Place of Origin: China
Brand Name: Atlas
Certification: ISO 8573-1 CLASS 0
Model Number: VSD+ GA37~110
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: be negotiated
Packaging Details: Atlas standard packing
Delivery Time: 7~30days
Payment Terms: L/C, T/T, D/A, Western Union, D/P
Supply Ability: 100pcs per month

Oil Injected Atlas Screw Air Compressor Vsd Plus Ga37-110 Vsd+ 37-110kw Power

Description
Material: Aluminum Alloy Model: VSD+ GA37~110
Type: Frequency Conversion Power: 37~110kw
Motor: Interior Permanent Magnet (iPM)
High Light:

Oil Injected Atlas Vsd Plus

,

110kw Atlas Vsd Plus

,

37kw Atlas Ga 37 Vsd+

ATLAS  VSD PLUS SERIES GA37L~110 VSD+ OIL-INJECTED ROTARY SCREW AIR COMPRESSOR

GA37-110 VSD+.pdf

Innovative
Atlas has revolutionized compressor build and performance. Instead of the normalspace-taking horizontal design, the new
GA 37-110 VSD + has an upright, compact layout. This saves valuable floor and work space, eases maintenance access, and reduces the total cost of ownership for all customers.

Oil Injected Atlas Screw Air Compressor Vsd Plus Ga37-110 Vsd+ 37-110kw Power 0

Reliable
• Our Neos inverter, developed in-house to maximize compressor reliability, is built to provide extra protection against dust and other particles.
• Completely enclosed frequency drive and drive train ensure performance even in the harshest environments.
• Based on the unique combination of proven technologies and existing components, optimally brought together by Atlas ’s experience and know-how.



Smart
• Easy monitoring and maintenance thanks to the Elektronikon ® Touch controller.
• Maintenance notifications and machine status are available via SMARTLINK e-mail or text messages.
• Customized reports on the energy performance of your machine, in compliance with ISO 50001.

Oil Injected Atlas Screw Air Compressor Vsd Plus Ga37-110 Vsd+ 37-110kw Power 1Oil Injected Atlas Screw Air Compressor Vsd Plus Ga37-110 Vsd+ 37-110kw Power 2

1

Interior Permanent Magnet (iPM) motor
• Oil-cooled motor.
• Optimal cooling for all speeds and ambient conditions.
• Designed in-house in Belgium.
• Oil-lubricated motor bearing: no (re)grease(ing), increased
uptime.
• IP66: pressure tight.
• Permanent magnets.
2
New compressor element
• New improved rotor profile.
• Reduced pressure losses.
• Optimized in and outlet portals.
3
Direct drive
• Vertical design, less parts.
• Oil-cooled, pressure-tight.
• No gears or belts, no shaft seal.

4

Inlet filter
• Heavy duty.
• Maintenance every 4,000 hours.
• Pressure drop indicator.

5

Radial fan
• Compact.
• Low noise level.
• High capacity for optimized cooling.





specifications

Compressor type Max. working pressure Capacity FAD* (min-max) Installed motor power Noise level** Weight WorkPlace Weight WorkPlace Full Feature
bar(e) psig l/s m³/h cfm kW hp dB(A) kg kg
GA 37 VSD+ 4 58 15-116 55-419 32-246 37 50 67 376 500
7 102 15-115 55-419 31-243 37 50 67 376 500
9.5 138 17-102 62-368 36-216 37 50 67 376 500
12.5 181 16-87 59-312 35-183 37 50 67 376 500
GA 37L VSD+ 4 58 26-133 94-479 55-282 37 50 67 860 1060
7 102 26-132 93-475 55-279 37 50 67 860 1060
9.5 138 25-116 89-418 53-246 37 50 67 860 1060
12.5 181 38-99 138-355 81-209 37 50 67 860 1060
GA 45 VSD+ 4 58 26-159 94-573 55-337 45 60 67 860 1060
7 102 26-157 93-565 55-332 45 60 67 860 1060
9.5 138 25-137 89-494 53-291 45 60 67 860 1060
12.5 181 38-115 138-359 81-211 45 60 67 860 1060



GA 55 VSD+

4 58 26-189 93-680 55-400 55 75 67 900 1100
7 102 26-188 94-677 55-399 55 75 67 900 1100
9.5 138 26-166 93-598 55-352 55 75 67 900 1100
12.5 181 40-140 145-504 85-297 55 75 67 900 1100
GA 75 VSD+ 4 58 26-226 93-815 55-480 75 100 70 920 1120
7 102 27-225 97-809 57-476 75 100 70 920 1120
9.5 138 27-198 96-712 57-419 75 100 70 920 1120
12.5 181 42-167 150-600 88-353 75 100 70 920 1120
GA 75L VSD+ 4 58 47-269 169-967 100-569 75 100 73 1207 1496
7 102 48-266 172-957 101-563 75 100 73 1207 1496
9.5 138 58-235 210-847 124-498 75 100 73 1207 1496
12.5 181 70-194 252-699 149-411 75 100 73 1207 1495
GA 90 VSD+ 4 58 48-311 174-1121 102-660 90 125 74 1213 1503
7 102 49-306 176-1101 104-648 90 125 74 1213 1503
9.5 138 60-269 215-969 127-570 90 125 74 1213 1503
12.5 181 71-218 255-784 150-461 90 125 74 1213 1503
GA 110 VSD+ 4 58 47-348 170-1251 100-736 110 150 76 122 1573
77 102 49-345 175-1241 103-731 110 150 76 122 1573
9.5 138 59-309 211-1111 124-654 110 150 76 122 1573
12.5 181 71-268 254-965 150-568 110 150 76 122 1573
