Product Details:
|
| Material: | Aluminum Alloy | Model: | BMO WF-200~BMO WF-2500 |
|---|---|---|---|
| Brand: | Beacon Medaes | Oxygen Flowrate: | 8~60m3/h |
| Oxygen Purity: | 93% | Type: | PSA Generators |
| Highlight: | 93% Beacon Medaes Oxygen Generator,60m3/H Beacon Medaes Oxygen Generator,8m3/H PSA Oxygen Generator |
||
Psa Oxygen Generator Series Beacon Medaes 93% Oxygen Purity Bmo Wf-200~Wf-2500
Specifications
| Type | Oxygen Flowrate (m3/h) |
Oxygen Purity (%) |
Oxygen Pressure (MPa) |
Noise level dB(A) | Size(L*W*H) mm |
Weight(Kg) | Power Supply | Power(W) |
| WF-200 | 8 | 93±50% | ≥0.45 | ≤75 | 530*860*1780 | 310 |
AC220V 50Hz AC110V 60Hz |
≤48 |
| WF-300 | 10 | 430 | ||||||
| WF-600 | 15 | 160*860*1780 | 480 | |||||
| WF-700 | 20 | 980*860*1780 | 650 | |||||
| WF-800 | 25 | 1200*860*1780 | 756 | |||||
| WF-900 | 30 | 1420*860*1780 | 920 | |||||
| WF-1000 | 35 | 1120*1380*1820 | 1160 | |||||
| WF-1200 | 40 | 1400*1380*1820 | 1200 | |||||
| WF-1500 | 45 | 1320 | ||||||
| WF-2000 | 50 | 1650*1380*1820 | 1480 | |||||
| WF-2500 | 60 | 1610 |

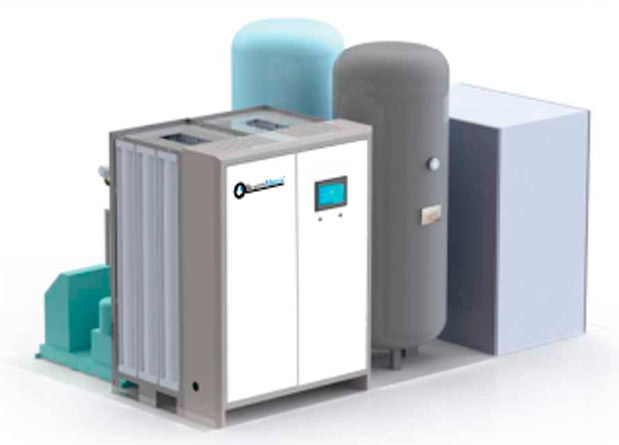

PSA Integrated Oxygen Generator (Modular Design)
PSA is the most economical, efficient as well as the safest way for oxygen generation. The PSA technology has been added in many nation’s pharmacopoeia, and has become one of the most popular approaches to supply oxygen to the hospitals. Applying the pressure swing adsorption principle. The PSA oxygen generation system separates oxygen from the other gases in the air. The purity of the output oxygen satisfies the international standards and regulations including ISO 10083 YY/T 0298-1998. WSI-XG-008-2012.
MD System peocess Chart
On-site assembly
Ready for existing piping system
Multi filtration;Comprehensive minitoring and alarming
Dual/Multi-unit with backup manifold
Smart Control System
Data acquistion,intelligent analysis,optimised oxygen output.
Central Control.
Controlling multiple units even with warious models and different generation capacity.
Dynamic back-up,blanced usage.
