Product Details:
|
| Material: | Aluminum Alloy | Model No: | OGP 200 |
|---|---|---|---|
| Type: | PSA Generators | Oxygen Purity: | >95% |
| Oxygen Flow: | 56.9% At 95% Purity, 64.1% At 93% Purity | ||
| High Light: | Atlas PSA Nitrogen Generator,4000mm Atlas PSA Nitrogen Generator,3300mm Nitrogen Generator Atlas |
||

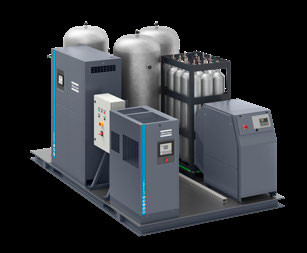

ATLAS OGP200 OXYGEN GENERATOR
A Secure Supply of Oxygen&On-Site Industrial Gases Oxygen Generator OGP65
Whether your company is specialized in chemical manufacturing, electronics, laser cutting or food and beverage, a dependable supply of industrial gas is crucial. Compared to the on-demand delivery of gas bottles or tanks, on-site production of gas offers a wealth of advantages ranging from cost savings to continuous availability. Atlas ’s advanced nitrogen and oxygen generators offer you the ultimate solution: flexible. on-site production of industrial gas at the lowest possible cost.
New generation membrane & PSA generators will change the market. Atlas ’s latest membrane and PSA generators extend the advantages of the current range. Total lifecycle cost consists of the initial investment cost of the on-site installation, the service cost, and the energy cost.
Wide range of applications
• Food & beverage • Pharmaceutical applications.
(storage & packaging)
• Plastic injection molding. • Electronics.
• Laser cutting. • Semiconductor manufacturing.
• Chemical applications. • Metal heat treatment.
• Cable & optical fiber. • Glass industries.
• Fire prevention. • Aquaculture.
Specifications
| Type | Nitrogen Purity | Dimensions (W x D x H) | ||||||
| 90% | 93% | 95% | mm | in | kg | Ibs | ||
| OGP 200 | FND Nm³/h | 203.8 | 188.3 | 175.0 | 4000 x 4000 x 3300 | 157.5 x 157.5 x 130.0 | 9400 | 20723 |
| FND scfm | 119.9 | 110.8 | 102.9 | |||||
FOD: Free Oxygen Delivery
Reference conditions
Compressed air effective inlet pressure: 7.5 bar(g)/108 psi(g).
Oxygen outlet pressure: 5 bar(g)/72 psi(g).
Ambient air temperature: 20°C/68°F.
Pressure dewpoint inlet air: 3°C/37°F.
Pressure dewpoint oxygen: -50°C/-58°F.
Unit inlet air quality 1.4.1 according to ISO 8573-1:2010.
Minimum refrigerant dryer required to precondition inlet air.
Typical oxygen quality 1.2.1 according to ISO 8573-1:2010.
The OGP oxygen generator works in a similar way, using Pressure Swing Adsorption technology to isolate oxygen molecules from other molecules in compressed air to leave high purity oxygen at the outlet of the generator. The OGP Series provides cost-efficient oxygen for applications such as waste water treatment, ozone production, health care, and the glass industry.
Total solutions from Atlas
With a full range of nitrogen and oxygen generators to choose from, Atlas brings you the right supply of nitrogen and oxygen to meet your specific needs and optimize your production process at the same time.
High quality compressed air
On-site nitrogen and oxygen generation requires the most reliable and efficient compressed air solution. Drawing on our vast experience, Atlas has been leading the industry in compressed air technology for decades.
Oil-injected Compressors
Integrated onto the production floor, Atlas ’s oil-injected compressors provide a dependable flow of compressed air directly to the point of use. The GA range even comes with integrated dryer for high quality air. Built to perform in harsh environments, Atlas compressors
keep your production running smoothly and reliably: a very economical solution in combination with nitrogen and oxygen generators.
Air treatment
Atlas has developed and improved air compression and drying techniques. Whatever your installation, application or quality requirements, Atlas can offer the right air treatment solution, including dryers (desiccant, refrigerant, membrane) and filters (coalescing, particle, active carbon).
Advanced Monitoring,Control &Connectivity
The Elektronikon ® operating system gives you numerous control and monitoring options to optimize compressor performance.
High Flow Capacity
The wide product range and gas flows exceeding 3,000 Nm³/h (NGP/NGP + ) make these generators ideal for a variety of demanding applications.
Ready to Use
• Only requires a supply of dry compressed air.
• Plug-and-play.
• No specialist installation or commissioning.
• Fully automated and monitored including oxygen sensor as standard.
• Service-friendly.
Exceptional reliability
• Robust design.
• Continuous availability (24 hours a day, 7 days a week).
• Potential risk of production breakdown due to gas running out is eliminated.
Desired Purity
• NGP/NGP + : nitrogen concentrations from 95% to 99.999%.
• OGP: oxygen concentrations from 90% to 95%.
Cost savings
• Low operating expenses.
• No additional costs such as order processing, refills and delivery charges.
• Limited maintenance costs.
