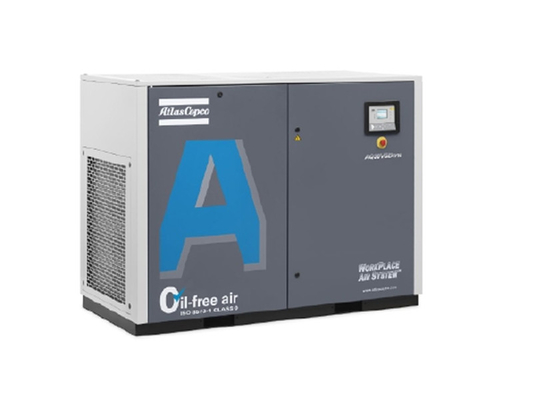

AQ 18 VSD Water Injected Atlas Screw Air Compressor 18kw 69dB Noise Level

I'm Online Chat Now

AQ 18 VSD Water Injected Atlas Screw Air Compressor 18kw 69dB Noise Level

AQ 18 VSD Water Injected Atlas Screw Air Compressor 18kw 69dB Noise Level
AQ 18 VSD Water Injected Atlas Screw Air Compressor 18kw 69dB Noise Level

Large Image :  AQ 18 VSD Water Injected Atlas Screw Air Compressor 18kw 69dB Noise Level

Product Details:
Place of Origin: China
Brand Name: Atlas
Certification: ISO 8573-1 CLASS 0
Model Number: AQ-18 VSD
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: be negotiated
Packaging Details: Atlas standard packing
Delivery Time: 7~30days
Payment Terms: L/C, T/T, D/A, Western Union, D/P
Supply Ability: 100pcs per month

AQ 18 VSD Water Injected Atlas Screw Air Compressor 18kw 69dB Noise Level

Description
Material: Aluminum Alloy Model: AQ Water Jet
Brand: Atlas Type: Oil-free
Noise Level: 69 DB(A) Application: Medical, Pharmaceutical Production, Food Production, Electronic Products, Etc
High Light:

18kw Water Injected Screw Compressor

,

69dB Water Injected Screw Compressor

,

AQ 18 VSD Screw Compressor Atlas

18KW AQ-18 VSD OIL-FREE WATER ATLAS INJECTED SCREW COMPRESSORS



POWERFUL OIL-FREE AIR
When it comes to clean, oil-free compressed air, you cannot afford to compromise on quality. Over the past decades, Atlas has pioneered
oil-free water-injected screw technology, resulting in a broad range of compressors delivering 100% oil-free, clean air. Setting the standard through
ISO 8573-1 CLASS 0 certification, the AQ meets your need for pure oil-free air while offering best in class energy efficiency.



Water-injected screw element
• Highly energy-efficient thanks to low temperatures.
• Water-lubricated, grease-free bearings.
• In-house design and manufacturing.
• Working pressure up to 13 bar.



Water filter
• Ensuring a constant supply of clean water.
• The filtration capability equals 10 micron throughout the filter’s lifetime.



Heavy-duty air filter
• Protects the compressor components by removing 99.9% of dirt particles down to 3 microns.
• Differential inlet pressure for proactive maintenance while minimizing pressure drop.



Reverse osmosis system
The built-in reverse osmosis system provides a reliable supply of high quality water, ensuring autonomy and continuous operation.

AQ 18 VSD Water Injected Atlas Screw Air Compressor 18kw 69dB Noise Level 0AQ 18 VSD Water Injected Atlas Screw Air Compressor 18kw 69dB Noise Level 1

Air-cooled fan and water-cooler
• Air and water-cooled variants are available throughout the range.
• Small footprint and installation thanks to built-in heat exchangers.
• Water-cooled units provide a continuous air temperature at the dryer inlet of less than 55°C (131°F).



Integrated highly efficient dryer
• Excellence in air quality.
• 50% reduction in energy consumption compared to traditional dryers.
• Zero ozone depletion.



PROVEN TECHNOLOGY
At the heart of the new AQ range is a unique water-injected screw element working highly efficient near isothermal compression. The polymer ceramic rotors with their optimized rotor profile are supported by water-lubricated bearings, ensuring that no oil whatsoever can contaminate the compression element, thereby producing pure oil-free air.


Rotors
A highly efficient compression process is achieved thanks to high quality polymer mould ceramic rotors with optimum profiling. The combination
of corrosion-free, high efficiency raw material and water lubrication results in a longer lifespan.


Element housing
Strength and durability are ensured as a result of the aluminium bronze element housing without risk of corrosion within the element.


Element bearings
The use of hydrodynamic bearings ensure long life as no physical contact is made within the bearing itself, it simply glides on a film of water removing the need for any oil or grease lubrication.



Specifications



COMPRESSOR
TYPE
Tyoe Max. working pressure
(bar(e)/psig)
WorkPlace
Capacity FAD* Installed motor power Noise
level**
Weight
WorkPlace
Weight WorkPlace
Full Feature
pack Full Feature l/s m³/min cfm kw dB(A) kg kg
AQ18 VSD air-cooled 13/188 12.75/185 22-54 1.3-3.2 47-114 18 69 650 / 1433 700 / 1543
water-cooled 13/188 12.75/185 22-54 1.3-3.2 47-114 18 69 650 / 1433 700 / 1543


(1) Unit performance measured according to ISO1217 Annex E, Edition 4, 2009.

(2) Mean sound pressure level according to ISO2151, uncertainty 3 dB(A).

AQ 18 VSD Water Injected Atlas Screw Air Compressor 18kw 69dB Noise Level 2
