Product Details:
|
Machine Type: | Oil Injected Screw Air Compressor | Model: | G15~26 |
---|---|---|---|
Motor: | IE3 Premium Motor | Frequency: | 50~60Hz |
Motor Power: | 15~26kw | Working Pressure: | 7.4~12.8 Bar |
Highlight: | 26kw Atlas G Series,G15 15kw Atlas G Series,12.8 bar G15 Atlas |

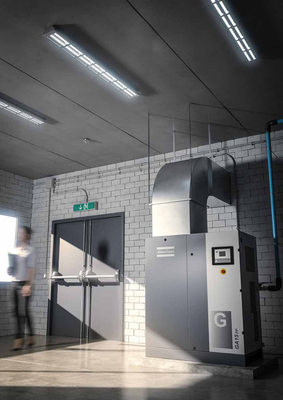

Compact Screw Compressor G Series 15~26kw Atlas Rotary Oil Injected 7.4-12.8bar Working Pressure
Click to open our catalog:G2-90 wuxi leaflet EN 2935081343.pdf
Compact Economical Compressors G15/G18/G22/G26
Premium GA quality and optimal serviceability at the lowest initial investment.
• Good-quality, dry air thanks to the integrated dryer.
• Total control and assured efficiency with the Elektronikon ® controller.
Set to tackle your daily challenges, Atlas ’s high-performance GA compressors beat any workshop solution. Ready to supply high-quality air, they keep your air network clean and your production up and running.
Robust element & motor
• The GA 15-26’s compression element, the most used in its size, is combined with an IE3/NEMA Class 1 efficiency motor.
• A 2-3% higher efficiency with the gear-driven drive train compared to belt-driven systems.
• Gear-driven drive train for best-in-class reliability and limited maintenance.
Advanced monitoring
• State-of-the-art monitoring using a simple Ethernet connection, thanks to the Elektronikon ® with a built-in server.
• Service and warning indications, error detection and compressor shut-down.
• Optional Elektronikon ® graphic controller for further enhanced remote monitoring features and service time indications.
High-tech oil vessel
• Protection from oil contamination: extremely low oil carry-over thanks to the vertical design of the oil vessel.
• Extremely low losses of compressed air during load/unload cycle thanks to minimized oil vessel size.
Integrated quality air solutions
• The integrated dryer avoids condensation and corrosion in the network. Optional filters for air quality up to ISO Class 1 level (<0.01 ppm).
• Standard included water separator.
• Additional energy savings with the dryer’s no-loss electronic drain.
Easy installation
• A true plug-and-play solution, ideal machine for installation companies and OEMs.
• Optional integrated dryer.
• Easy transportation by forklift.
• Remarkably compact footprint.
Specifications
COMPRESSOR TYPE |
Pressure variant (bar) |
Max. working pressure WorkPlace |
Capacity FAD* | Installed motor power | Noise level** |
Weight WorkPlace |
Weight WorkPlace Full Feature |
|||
bar(e) | psig | l/s | m³/min | cfm | kw | dB(A) | kg | kg | ||
G15 | 7.4 | 7.4 | 107 | 47.1 | 2.83 | 99.8 | 15 | 66 | 421 | 474 |
9.1 | 9.1 | 132 | 42.4 | 2.54 | 89.8 | 15 | 66 | 421 | 474 | |
10.8 | 10.8 | 157 | 39.2 | 2.35 | 83 | 15 | 66 | 421 | 474 | |
12.5 | 12.5 | 181 | 30.3 | 1.82 | 64.2 | 15 | 66 | 421 | 474 | |
G18 | 7.4 | 7.4 | 107 | 56.9 | 3.41 | 120.5 | 18 | 68 | 431 | 495 |
9.1 | 9.1 | 132 | 50.8 | 3.05 | 107.8 | 18 | 68 | 431 | 495 | |
10.8 | 10.8 | 157 | 48 | 2.88 | 101.7 | 18 | 68 | 431 | 495 | |
12.5 | 12.5 | 181 | 42.2 | 2.53 | 89.4 | 18 | 68 | 431 | 495 | |
G22 | 7.4 | 7.4 | 107 | 67.7 | 4.06 | 143.3 | 22 | 69 | 440 | 495 |
9.1 | 9.1 | 132 | 60.6 | 3.64 | 128.4 | 22 | 69 | 440 | 495 | |
10.8 | 10.8 | 157 | 54.4 | 3.26 | 115.2 | 22 | 69 | 440 | 495 | |
12.5 | 12.5 | 181 | 49 | 2.94 | 103.8 | 22 | 69 | 440 | 495 | |
G26 | 7.4 | 7.4 | 107 | 74.4 | 4.46 | 157.6 | 26 | 70 | 500 | 558 |
9.1 | 9.1 | 132 | 69.5 | 4.17 | 147.2 | 26 | 70 | 500 | 558 | |
10.8 | 10.8 | 157 | 62.8 | 3.77 | 133 | 26 | 70 | 500 | 558 | |
12.5 | 12.5 | 181 | 57.1 | 3.43 | 120.9 | 26 | 70 | 500 | 558 |
* Unit performance measured according to ISO 1217, Annex C, Edition 4:2009.
Reference conditions:
• Absolute inlet pressure 1 bar (14.5 psi)
• Intake air temperature 20°C, 68°F
FAD is measured at the following working pressures:
• 7.5 bar versions at 7 bar
• 8.5 bar versions at 8 bar
• 10 bar versions at 9.5 bar
• 10.5 bar serion at 10 bar
• 13 bar versions at 12.5 bar
Applications
• Auxiliary or main heating of warehouses, workshops…
• Industrial process heating
• Water heating for laundries, industrial cleaning and sanitary facilities
• Canteens and large kitchens
• Food industry
• Chemical and pharmaceutical industries
• Drying processes
