Product Details:
|
Machine Name: | Oil Injected Screw Air Compressor | Model: | GA+160~250 |
---|---|---|---|
Frequency: | 50Hz | Cooling Module: | IP55 Protection |
Motor Power: | 160~250kw | Working Pressure: | 5.5~14 Bar |
Highlight: | Rotary Screw Air Compressor Atlas,Oil Injected Air Compressor Atlas,Atlas 160kw Compressor |

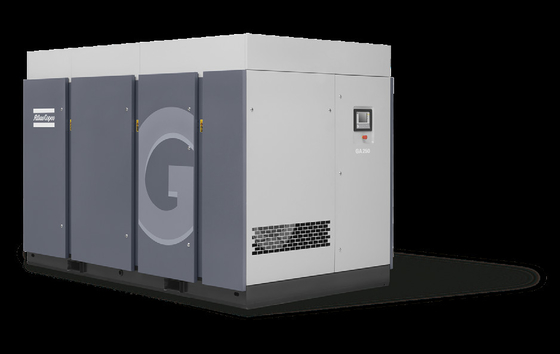

ATLAS OIL-INJECTED ROTARY SCREW COMPRESSORS GA160+~250 50HZ 160-250 KW
HIGHEST RELIABILITY, LOWEST OPERATING COSTS
The shortest route to maximize your profitability is to minimize your operational cost. As energy consumption is the major factor (up to 70%) of a compressor’s lifecycle cost, the Atlas GA 160 + -250 compressors are designed to help you achieve significant savings. The compressors provide high-quality compressed air to meet your requirements even in the most demanding applications.
Specifications
TECHNICAL SPECIFICATIONS GA 160 + -250 (50 Hz) |
||||||||||
COMPRESSOR TYPE |
Pressure variant(bar) |
Max. working pressure WorkPlace |
Capacity FAD* | Installed motor power | Noise level** |
Weight WorkPlace |
Weight WorkPlace Full Feature |
|||
bar(e) | psig | l/s | m³/min | cfm | kW | dB(A) | kg | kg | ||
GA 160+ 50Hz |
5.5 | 5.5 | 80 | 621 | 37.2 | 1316 | 160 | 78 | 4793 | 10567 |
7.5 | 7.5 | 109 | 538 | 32.2 | 1140 | 160 | 78 | 4648 | 10247 | |
8.5 | 8.5 | 123 | 498 | 29.8 | 1055 | 160 | 78 | 4648 | 10247 | |
10 | 10 | 145 | 448 | 26.9 | 949 | 160 | 78 | 4648 | 10247 | |
GA 200+ 50Hz |
5.5 | 5.5 | 80 | 748 | 44.8 | 1585 | 200 | 78 | 4913 | 10831 |
7.5 | 7.5 | 109 | 674 | 40.4 | 1428 | 200 | 78 | 4913 | 10831 | |
8.5 | 8.5 | 123 | 632 | 37.9 | 1339 | 200 | 78 | 4768 | 10512 | |
10 | 10 | 145 | 572 | 34.3 | 1212 | 200 | 78 | 4768 | 10512 | |
GA 220+ 50Hz |
5.5 | 5.5 | 80 | 837 | 50.2 | 1773 | 220 | 78 | 5099 | 11241 |
7.5 | 7.5 | 109 | 744 | 44.7 | 1576 | 220 | 78 | 5099 | 11241 | |
8.5 | 8.5 | 123 | 671 | 40.2 | 1421 | 220 | 78 | 5099 | 11241 | |
10 | 10 | 145 | 612 | 36.7 | 1926 | 220 | 78 | 4954 | 10922 | |
GA 250+ 50Hz |
5.5 | 5.5 | 80 | 923 | 55.4 | 1956 | 250 | 78 | 5099 | 11241 |
7.5 | 7.5 | 109 | 833 | 55 | 1765 | 250 | 78 | 5099 | 11241 | |
8.5 | 8.5 | 123 | 773 | 46.4 | 1638 | 250 | 78 | 5099 | 11241 | |
10 | 10 | 145 | 709 | 42.5 | 1503 | 250 | 78 | 4954 | 10922 |
Mining industry
• Years of experience with thousands of compressors running around the world.
• High product reliability with maximum uptime even in harsh conditions.
• Strong global support network to provide 24/7 assistance even in remote locations.
Energy industry
• Protect downstream equipment and increase component lifetime.
• Integrated water separator with electronic drain as standard.
Metal industry
• Easy and quick installation, with flexible ducting possibilities.
• A complete, ready-to-use solution including all components and options.
• Low service cost thanks to high accessibility of components and long service intervals.
General industry
• GA compressors are designed for ultimate efficiency in all your industrial applications.
• Ideal for machinery operation, plant maintenance, cleaning, pneumatic tools and controls, sand- and shot-blasting.
Reducing your operating costs
The GA 160 + -250 provide maximum output at the lowest energy consumption. They will reduce your energy bill and your CO 2 emissions. The right core technologies with our experience in design and manufacture combine to produce a solution to match your needs. Generous cooling capacity, low pressure drop and a highly efficient drive train ensure optimum operation over a long lifetime.
Ensuring your peace of mind
The GA 160 + -250 optimize uptime by keeping your production running, 24/7. The highly advanced controller ensures optimum operation by controlling all compressor inputs and outputs.
Easy installation and service
Easy to install, the ‘all-in-one’ package includes all necessary equipment. There are no hidden costs, nor any extra devices to install. Ducting is easy for increased flexibility. Service cost is reduced to a minimum: all parts are easily accessible via large opening doors, consumables are long-lasting, and service operations are easy and safe to perform.
THE GA 160 + -250 SETS A NEW STANDARD IN THE INDUSTRY
High-efficiency motor
• TEFC IP55 motor (Class F insulation B rise) protects against dust and chemicals.
• Continuous operation in ambient temperatures up to 46°C/115°F).
State-of-the-art screw element
• Patented asymmetric rotor profile and meticulous selection of bearings.
• Low wear and tear leads to increased reliability.
• Proven reliability with thousands of installations throughout the world.
Cooling module
• Separated oil and aftercoolers for highest efficiency.
• Axial cooling fans driven by separate TEFC electric motors (IP55 protection).
• Low noise level.
Gear-driven transmission
• Maintenance-free; totally enclosed and protected against dirt and dust.
• Optimal working range of the screw element.
• Bowex coupling to absorb the trust load and increase the reliability.
Optimized loading/unloading valve
• Ensures constant optimized pressure in the system, resulting in significant energy savings.
• Simple, maintenance-free set-up with few moving parts for highest reliability.
• Accurate control through solenoid valve.
Easy to install
• Oil-containing frame as standard.
• All-in-one package, no hidden costs.
• Flexible ducting possibilities.
Superior air quality
• Integrated water separator with electronic drain removes 100% of condensate.
Superior air intake filter
• Protects the compressor components by removing 99.9% of dirt particles > 3 μm.
• Reduces the dust load in the fine filter, doubling the filter element lifetime without reducing filter efficiency.
Elektronikon ® for advanced monitoring
• Integrated smart algorithms reduce system pressure and energy consumption.
• Monitoring features include warning indications, maintenance scheduling and online visualization of machine’s condition.
Full optimization - ES system controller
Improve product quality every minute that your facility is in operation. Atlas 's ES system controllers offer a convenient way to achieve optimized performance from your low pressure equipment through a single centralized point of monitoring and control. With the ES system controller watching over your compressors and compressed air network, you will have a highly dependable and energy efficient solution working with your facility to manage operating costs.
INCREASE YOUR SAVINGS WITH ENERGY RECOVERY
The Kyoto directives and the continuing depletion of traditional energy sources mean that businesses throughout the world are making commitments to significantly reduce overall energy consumption. Through innovative products and solutions, Atlas helps you achieve your goals in this area. When it comes to compressed air production – where energy costs can constitute 70% of total lifecycle costs – saving energy can also lead to substantial cost savings.
Integrated heat exchanger
Air compression creates heat that is normally wasted in the coolers. Energy recovery systems designed by Atlas enable the recovery of most of this heat. Recovery of energy from the shaft input of the compressor can be up to 94% of the compressor shaft power. The heat is directly usable as a source of energy in the form of hot water (85-90°C/185- 194°F). The main module of the recovery system is built into the compressor. The investment needed to link the hot oil circuit from the compressor to the existing water circuit is relatively modest and the time needed before seeing payback from your investment is generally very short.
Dual pressure set-point and Delayed Second Stop
Most production processes create fluctuating levels of demand which, in turn, can create energy waste in low use periods. Using the graphic Elektronikon ® unit controller, you can manually or automatically create two different system pressure bands to optimize energy use and reduce costs at low use times. In addition, the sophisticated Delayed Second Stop (DSS) runs the drive motor only when needed. As the desired system pressure is maintained while the drive motor’s run time is minimized, energy consumption is kept to a minimum.
SMARTLINK * : Data Monitoring Program
• A remote monitoring system that helps you optimize your compressed air system and save you energy and cost.
• It offers you a complete insight in your compressed air network and anticipates on potential problems by warning you up-front.
* Please contact your local sales representative for more information.
