Air Cooler Oil Injected Rotary Atlas Screw Air Compressor Atlas 160kw Ga160+ 60hz

I'm Online Chat Now

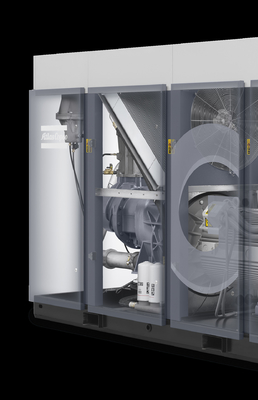

Air Cooler Oil Injected Rotary Atlas Screw Air Compressor Atlas 160kw Ga160+ 60hz

Air Cooler Oil Injected Rotary Atlas Screw Air Compressor Atlas 160kw Ga160+ 60hz
Air Cooler Oil Injected Rotary Atlas Screw Air Compressor Atlas 160kw Ga160+ 60hz

Large Image :  Air Cooler Oil Injected Rotary Atlas Screw Air Compressor Atlas 160kw Ga160+ 60hz

Product Details:
Place of Origin: China
Brand Name: Atlas
Certification: ISO 8573-1 CLASS 0
Model Number: GA+160
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: be negotiated
Packaging Details: Atlas standard packing
Delivery Time: 7~30days
Payment Terms: L/C, T/T, D/A, Western Union, D/P
Supply Ability: 100pcs per month

Air Cooler Oil Injected Rotary Atlas Screw Air Compressor Atlas 160kw Ga160+ 60hz

Machine Name: Oil Injected Screw Air Compressor Model: GA160+
Frequency: 60Hz Cooling: Air Cooler
Motor Power: 160kw Working Pressure: 5.5~10.9 Bar
High Light:

160kw 60hz Oil Injected Air Compressor


Ga160+ Oil Injected Air Compressor


160kw Air Compressor Atlas




The shortest route to maximize your profitability is to minimize your operational cost. As energy consumption is the major factor (up to 70%) of a compressor’s lifecycle cost, the Atlas GA 160 + -250 compressors are designed to help you achieve significant savings. The compressors provide high-quality compressed air to meet your requirements even in the most demanding applications.



Max. working pressure
Capacity FAD* Installed motor power Noise
Weight WorkPlace
Full Feature
bar(e) psig l/s m³/min cfm hp dB(A) kg kg
GA 160 +
75 5.5 80 621 38.1 1314 215 77 4793 10567
100 7.4 107 553 33.2 1171 215 77 4648 10247
125 9.1 132 474 28.4 1004 215 76 4648 10247
150 10.9 158 440 26.4 932 215 76 4648 10247


(1)  Unit performance measured according to ISO 1217, Annex C and E, Edition 4 (2009). Reference conditions:
-  Absolute inlet pressure 1 bar (14.5 psi).
-  Intake air temperature 20°C (68°F).
(2)  A-weighted emission sound pressure level at the work station, Lp WSA (re 20 μPa) dB (with uncertainty 3 dB). Values determined according to noise level test code
ISO 2151 and noise measurement standard ISO 9614. Pressure dew point of integrated refrigerant dryer at reference conditions: 2°C to 3°C (36°F to 37°F).


FAD (1) is measured at the following working pressures:
5.5 bar version at 5 bar
7.5 bar version at 7 bar
8.5 bar version at 8 bar
10 bar version at 9.5 bar
14 bar version at 13.5 bar

Air Cooler Oil Injected Rotary Atlas Screw Air Compressor Atlas 160kw Ga160+ 60hz 0

Air Cooler Oil Injected Rotary Atlas Screw Air Compressor Atlas 160kw Ga160+ 60hz 1

Reducing your operating costs
The GA 160 + -250 provide maximum output at the lowest energy consumption. They will reduce your energy bill and your CO 2 emissions. The right core technologies with our experience in design and manufacture combine to produce a solution to match your needs. Generous cooling capacity, low pressure drop and a highly efficient drive train ensure optimum operation over a long lifetime.

Ensuring your peace of mind
The GA 160 + -250 optimize uptime by keeping your production running, 24/7. The highly advanced controller ensures optimum operation by controlling all compressor inputs and outputs.

Easy installation and service
Easy to install, the ‘all-in-one’ package includes all necessary equipment. There are no hidden costs, nor any extra devices to install. Ducting is easy for increased flexibility. Service cost is reduced to a minimum: all parts are easily accessible via large opening doors, consumables are long-lasting, and service operations are easy and safe to perform.

Maximizing your profitability
As there is no “one size fits all” concept, we have developed a range of features and options to help you optimize the use of your compressor: from running the machine at high temperatures, to extra safety devices. Our highly skilled engineering team can help you develop a customized
compressor based on your specific needs.


Mining industry
• Years of experience with thousands of compressors running around the world.
• High product reliability with maximum uptime even in harsh conditions.
• Strong global support network to provide 24/7 assistance even in remote locations.

Energy industry
• Protect downstream equipment and increase component lifetime.
• Integrated water separator with electronic drain as standard.

Metal industry
• Easy and quick installation, with flexible ducting possibilities.
• A complete, ready-to-use solution including all components and options.
• Low service cost thanks to high accessibility of components and long service intervals.

General industry
• GA compressors are designed for ultimate efficiency in all your industrial applications.
• Ideal for machinery operation, plant maintenance, cleaning, pneumatic tools and controls, sand- and shot-blasting.


High-efficiency motor
• TEFC IP55 motor (Class F insulation B rise) protects against dust and chemicals.
• Continuous operation in ambient temperatures up to 46°C/115°F).


State-of-the-art screw element
• Patented asymmetric rotor profile and meticulous selection of bearings.
• Low wear and tear leads to increased reliability.
• Proven reliability with thousands of installations throughout the world.

Cooling module
• Separated oil and aftercoolers for highest efficiency.
• Axial cooling fans driven by separate TEFC electric motors (IP55 protection).
• Low noise level.

Gear-driven transmission
• Maintenance-free; totally enclosed and protected against dirt and dust.
• Optimal working range of the screw element.
• Bowex coupling to absorb the trust load and increase the reliability.

• Selection of long lifetime consumables.
• Easy and safe access to all service parts.
• Unique sliding system to access the oil coolers.


Optimized loading/unloading valve
• Ensures constant optimized pressure in the system, resulting in significant energy savings.
• Simple, maintenance-free set-up with few moving parts for highest reliability.
• Accurate control through solenoid valve.
Air Cooler Oil Injected Rotary Atlas Screw Air Compressor Atlas 160kw Ga160+ 60hz 2
Easy to install
• Oil-containing frame as standard.
• All-in-one package, no hidden costs.
• Flexible ducting possibilities.

Superior air quality
• Integrated water separator with electronic drain removes 100% of condensate.

Superior air intake filter
• Protects the compressor components by removing 99.9% of dirt particles > 3 μm.
• Reduces the dust load in the fine filter, doubling the filter element lifetime without reducing filter efficiency.

Elektronikon ® for advanced monitoring
• Integrated smart algorithms reduce system pressure and energy consumption.
• Monitoring features include warning indications, maintenance scheduling and online visualization of machine’s condition.

Air Cooler Oil Injected Rotary Atlas Screw Air Compressor Atlas 160kw Ga160+ 60hz 3

Full optimization - ES system controller
Improve product quality every minute that your facility is in operation. Atlas 's ES system controllers offer a convenient way to achieve optimized performance from your low pressure equipment through a single centralized point of monitoring and control. With the ES system controller watching over your compressors and compressed air network, you will have a highly dependable and energy efficient solution working with your facility to manage operating costs.


Dual pressure set-point and Delayed Second Stop
Most production processes create fluctuating levels of demand which, in turn, can create energy waste in low use periods. Using the graphic Elektronikon ® unit controller, you can manually or automatically create two different system pressure bands to optimize energy use and reduce costs at low use times. In addition, the sophisticated Delayed Second Stop (DSS) runs the drive motor only when needed. As the desired system pressure is maintained while the drive motor’s run time is minimized, energy consumption is kept to a minimum.
