Product Details:
|
| Machine Name: | Oil Injected Screw Air Compressor | Model: | GA22+ |
|---|---|---|---|
| Lubrication Style: | Lubricated | Cooling: | Air Cooler |
| Motor Power: | 22kw | Working Pressure: | 7.5~13 Bar |
| High Light: | 22kw Atlas Ga22+,Ga22+ Atlas Rotary Screw Compressor,Ga+ Atlas Rotary Screw Compressor |
||
ROTARY SCREW GA+ SERIES ATLAS AIR COMPRESSOR 22KW GA22+
Industry-leading performers High Reliability And Smart Energy 22KW GA22+
Re-engineered to break records, the industrial GA 11 + -30 compressors have the best air delivery capacity in the industry. These all-in-one solutions provide high-quality air at the lowest possible operating costs and offer extended monitoring possibilities.
Specifications
| COMPRESSOR TYPE |
Pressure variant |
Max. working pressure WorkPlace |
Capacity FAD* | Installed motor power | Noise level** |
Weight WorkPlace |
Weight WorkPlace Full Feature |
|||
| bar(e) | psig | l/s | m³/min | cfm | kW | dB(A) | kg | kg | ||
| GA22 + | 7.5 | 7.5 | 109 | 68.2 | 245.5 | 144.6 | 22 | 66 | 455 | 515 |
| 8.5 | 8.5 | 116 | 64.5 | 232.2 | 136.7 | 22 | 66 | 455 | 515 | |
| 10 | 10 | 145 | 58.1 | 209.2 | 123.2 | 22 | 66 | 455 | 515 | |
| 13 | 10 | 189 | 50.7 | 182.5 | 107.5 | 22 | 66 | 455 | 515 | |
Reliable motor & drive train
• The gearbox’s maintenance-free transmission maximizes durability.
• The motor and drive train are greased for life to avoid improper re-lubrication.
• Free Air Delivery is increased by 6-17% and power consumption is reduced by 3-12% thanks to packaging and new compressor element.
Electrical cubicle
• Reduced cubicle temperature doubles the lifetime of the electrical components.
• Avoid damage with the electrical cubicle’s standard phase sequence relay.
Advanced control

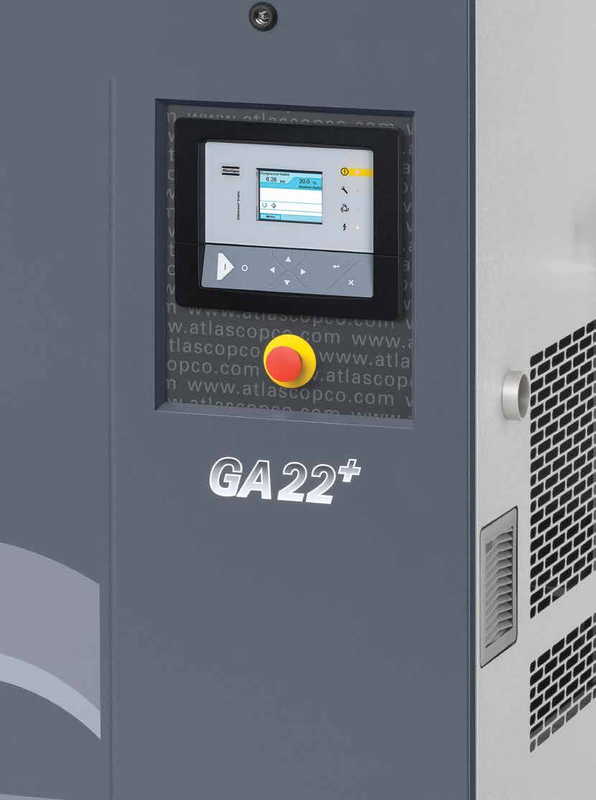

• High-tech Elektronikon ® graphic controller with warning indications, compressor shut-down and maintenance scheduling.
• Optional centralized control over up to 6 compressors via Elektronikon ®.
Energy-saving features
• Optional energy recovery system.
• Optional fan Saver Cycle, reducing energy consumption.
Excellence in quality air
Untreated compressed air contains moisture, aerosols and dirt particles that can damage your air system and contaminate your end product. The resulting maintenance costs can far exceed air treatment costs. GA compressors provide the clean, dry air that improves your system’s reliability, avoiding costly downtime and production delays, and safeguarding the quality of your products.
Integrated purity
Many Atlas compressors (Full Feature option) come with an integrated dryer that efficiently removes moisture, aerosols and dirt particles to protect your investment. This quality air expands the life of equipment, increasing efficiency and ensuring quality in your final product.
