Product Details:
|
| Machine Name: | Oil Injected Screw Air Compressor | Model: | GA30+ |
|---|---|---|---|
| Lubrication Style: | Lubricated | Cooling: | Air Cooler |
| Motor Power: | 30kw | Working Pressure: | 7.5~13 Bar |
| High Light: | High Reliability Atlas Ga30+,30kw Atlas Ga30+,Ga30+ Oil Injected Screw Air Compressor |
||

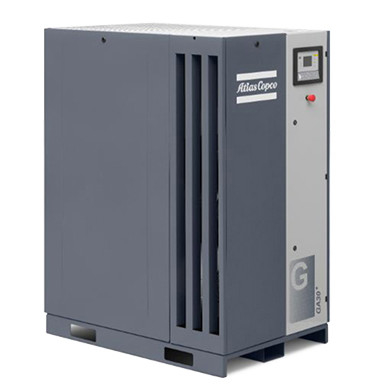

HIGH RELIABILITY ATLAS OIL-INJECTED SCREW AIR COMPRESSOR 30KW GA30+
Atlas market-leading GA+ oil-injected rotary screw compressor delivers outstanding performance, high productivity and low cost of ownership - even in the harshest environments.
High Reliability And Smart Energy 30KW GA30+
Specifications
| COMPRESSOR TYPE |
Pressure variant |
Max. working pressure WorkPlace |
Capacity FAD* | Installed motor power | Noise level** |
Weight WorkPlace |
Weight WorkPlace Full Feature |
|||
| bar(e) | psig | l/s | m³/min | cfm | kW | dB(A) | kg | kg | ||
| GA 37 + | 7.5 | 7.5 | 109 | 102 | 6.1 | 213 | 30 | 66 | 626 | 796 |
| 8.5 | 8.5 | 123 | 97 | 5.8 | 203 | 30 | 66 | 626 | 796 | |
| 10 | 10 | 152 | 83 | 5.0 | 173 | 30 | 66 | 626 | 796 | |
| 13 | 10 | 189 | 76 | 4.6 | 159 | 30 | 66 | 626 | 796 | |
Maintenance-free drive system
• 100% maintenance-free; totally enclosed and protected against dirt and dust.
• Suitable for harsh environments.
• High-efficiency drive arrangement; no coupling or slippage losses.
• Standard up to 46°C/115°F and for high ambient version 55°C/131°F.
IE3 Premium Efficiency electrical motors
• IP55, insulation Class F, B rise.
• Non-drive side bearing greased for life.
• Oil lubricated drive side bearings.
Robust spin-on oil filter
• High-efficiency, removing 300% smaller particles than a conventional filter.
• Integrated bypass valve with the oil filter.
Separate oversized oil cooler and aftercooler
• Low element outlet temperatures, ensuring long oil lifetime.
• Removal of nearly 100% condensate by integrated mechanical separator.
• No consumables.
• Eliminates possibility of thermal shocks in coolers.
Optimize your system
Some applications may need or may benefit from additional options and more refined control/air treatment systems. To meet these needs, Atlas has developed options and easily integrated compatible equipment.
Energy Recovery applications
• Auxiliary or main heating of warehouses, workshops etc.
• Industrial process heating.
• Water heating for laundries, industrial cleaning and sanitary facilities.
• Canteens and large kitchens.
• Food industry.
• Chemical and pharmaceutical industries.
• Drying processes.
