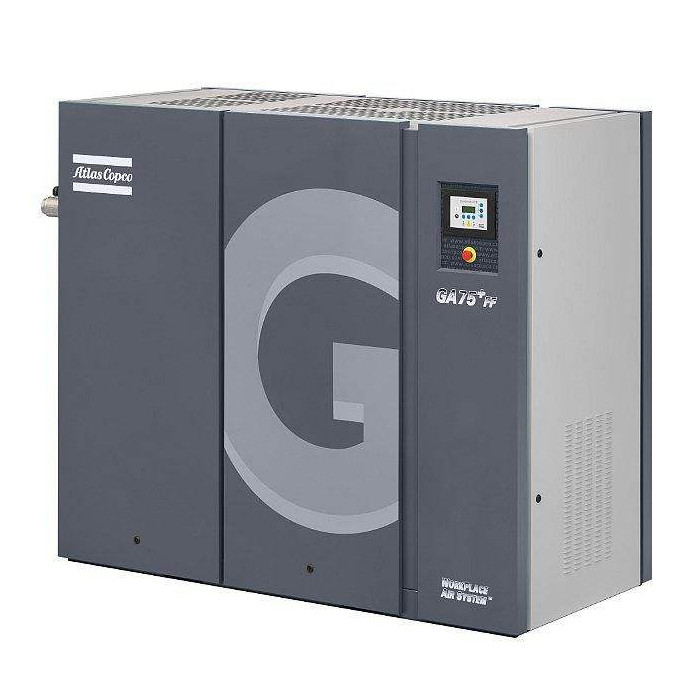

75kW Power GA 75+ 100 Hp Rotary Screw Air Compressor Atlas

75kW Power GA 75+ 100 Hp Rotary Screw Air Compressor Atlas
75kW Power GA 75+ 100 Hp Rotary Screw Air Compressor Atlas

Large Image :  75kW Power GA 75+ 100 Hp Rotary Screw Air Compressor Atlas

Product Details:
Place of Origin: China
Brand Name: Atlas
Certification: ISO 8573-1 CLASS 0
Model Number: GA 75+
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: be negotiated
Packaging Details: Atlas standard packing
Delivery Time: 7~30days
Payment Terms: L/C, T/T, D/A, Western Union, D/P
Supply Ability: 100pcs per month

75kW Power GA 75+ 100 Hp Rotary Screw Air Compressor Atlas

Material: Aluminum Alloy Model: GA 75+
Power: 220kw Brand: Atlas
Type: Oil-injected System: SIL Smart Inlet Lock System
High Light:

75kW 100 Hp Screw Air Compressor


GA 75+ 100 Hp Screw Air Compressor


100 Hp GA 75+ Atlas


GA 75+ 60Hz Air Compressor


Why Atlas Variable Speed Drive technology?
• On average 35% energy savings during fluctuations in production demand with an extensive turndown range.
• Integrated Elektronikon Touch controller controls the motor speed and high efficiency frequency inverter.
• No wasted idling times or blow-off losses in normal operation.
• Compressor can start/stop under full system pressure without the need to unload with special VSD motor.
• Eliminates peak current penalty during start-up.
• Minimizes system leakage due to a lower system pressure.
• EMC Compliance to directives (2004/108/EG).


75kW Power GA 75+ 100 Hp Rotary Screw Air Compressor Atlas  0



Lowest lifecycle costs and peace of mind
• No extra installation costs.
• Saving floor space.
• Use of energy-efficient, environmentally friendly refrigerant R410A reduces operating costs and stands for zero ozone depletion.

• Heat exchanger cross-flow technology with low pressure drop,saving energy and costs.
• Zero waste of compressed air thanks to no-loss condensate drain.
• Advanced control functions ensure dry air under all circumstances and prevent freezing at low load.
• Pressure dew point of 3°C (100% relative humidity at 20°C).

75kW Power GA 75+ 100 Hp Rotary Screw Air Compressor Atlas  1


1. Maintenance-free drive system
• 100% maintenance-free; totally enclosed and protected against dirt and dust.
• Suitable for harsh environments.
• High-efficiency drive arrangement; no coupling or slippage losses.
• Standard up to 46°C/115°F and for high ambient version 55°C/131°F.



2. IE3 Premium Efficiency electrical motors
• IP55, insulation Class F, B rise.
• Non-drive side bearing greased for life.

• Oil lubricated drive side bearings.



3. Robust spin-on oil filter
• High-efficiency, removing 300% smaller particles than a conventional filter.
• Integrated bypass valve with the oil filter.

4. Separate oversized oil cooler and aftercooler
• Low element outlet temperatures, ensuring long oil lifetime:• Removal of nearly 100% condensate by mechanical separator.
• No consumables.
• Eliminates possibility of thermal shocks in coolers.




5. Advanced control & monitoring via Elektronikon®
• Integrated smart algorithms reduce system pressure and energy consumption.
• Monitoring features include warning indications,maintenance scheduling and online visualization of machine’s condition.



6. Heavy-duty air intake filter
• Protects the compressor components by removing99.9% of dirt particles down to 3 microns.
• Differential inlet pressure for proactive maintenance while minimizing pressure drop.




7. Electronic no-loss water drain(optional)
• Ensures constant removal of condensate.
• Manual integrated bypass for effective condensate removal in case of power failure.
• Integrated with compressor’s Elektronikon® with warning/alarm features.


8. Radial fan
• Low noise level.

• High flows.

• Compact design.


9. Integrated highly efficient R410A dryer
• Excellence in air quality.
• 50% reduction in energy consumption compared to traditional dryers.
• Zero ozone depletion.
• Incorporates optional UD+ filter according to Class 1.4.2.







Pressure variant Max. working pressure
Capacity FAD* Installed motor power Noise level** Weight WorkPlace Weight WorkPlace
Full Feature
bar(e) psig l/s m³/min cfm kW hp dB(A) kg lbs kg lbs
GA 75+ 100 7.4 100 247 14.8 523 75 100 69 1525 3355 1645 3619
125 9.1 125 227 13.4 475 75 100 69 1525 3355 1645 3619
150 10.8 150 192 11.5 407 75 100 69 1525 3355 1645 3619
175 12.5 175 177 10.6 375 75 100 69 1525 3355 1645 3619
