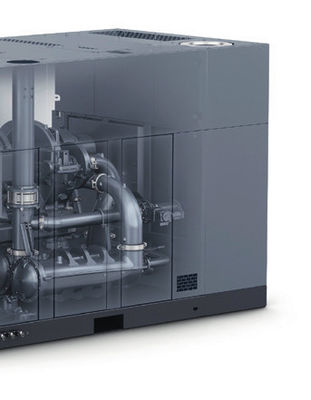

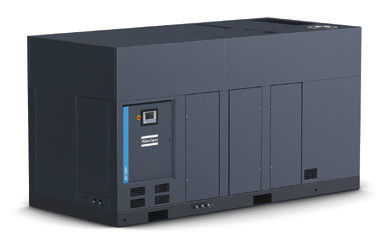

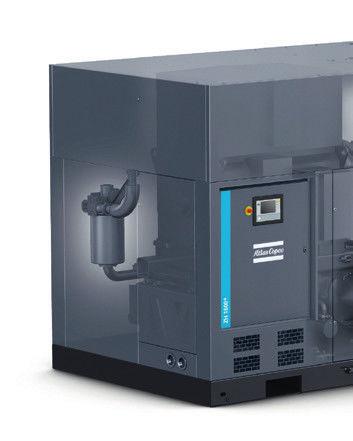

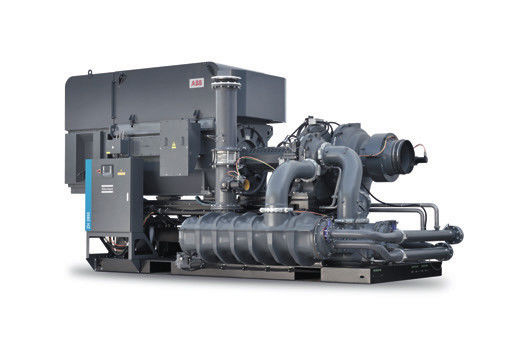

ZH+&ZH630-1600 Centrifugal Oil Free Atlas Screw Air Compressor For Textiles Mat Food Electronics

ZH+&ZH630-1600 Centrifugal Oil Free Atlas Screw Air Compressor For Textiles Mat Food Electronics
ZH+&ZH630-1600 Centrifugal Oil Free Atlas Screw Air Compressor For Textiles Mat Food Electronics
ZH+&ZH630-1600 Centrifugal Oil Free Atlas Screw Air Compressor For Textiles Mat Food Electronics ZH+&ZH630-1600 Centrifugal Oil Free Atlas Screw Air Compressor For Textiles Mat Food Electronics ZH+&ZH630-1600 Centrifugal Oil Free Atlas Screw Air Compressor For Textiles Mat Food Electronics ZH+&ZH630-1600 Centrifugal Oil Free Atlas Screw Air Compressor For Textiles Mat Food Electronics ZH+&ZH630-1600 Centrifugal Oil Free Atlas Screw Air Compressor For Textiles Mat Food Electronics

Large Image :  ZH+&ZH630-1600 Centrifugal Oil Free Atlas Screw Air Compressor For Textiles Mat Food Electronics

Product Details:
Place of Origin: China
Brand Name: Atlas
Certification: ISO 8573-1 CLASS 0
Model Number: ZH+&ZH630-1600
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: be negotiated
Packaging Details: Atlas standard packing
Delivery Time: 7~30days
Payment Terms: L/C, T/T, D/A, Western Union, D/P
Supply Ability: 100pcs per month

ZH+&ZH630-1600 Centrifugal Oil Free Atlas Screw Air Compressor For Textiles Mat Food Electronics

Description
Material: Aluminum Alloy Model: ZH+&ZH630-1600
Type: Oil-free, Centrifugal Capacity FAD: 122~325m3/min
Frequency: 50Hz/60Hz Cooling Method: Air Cooled Or Water Cooled
Varient: 2 Stage, 3 Stage
High Light:

122m3/min Centrifugal Oil Free Air Compressor

,

Centrifugal Oil Free Air Compressor

Oil Free Centrifugal Compressor Atlas  ZH+&ZH630-1600 50~60Hz Application for Textiles, Mat, Food, Electronics

ZH355-900 ( ) ZH630-1600 ( ) ZH1000-3150 EN.pdf

ZH + & ZH range:
high efficiency & reliability
Engineered using innovative in-house technology, the ZH + and ZH range captures years of experience in advanced compressed air solutions to save energy and guarantee reliability of oil-free air supply in multiple environments.



ZH + & ZH compressors are built using strict codes of Quality
Control, and are designed, manufactured and tested in ISO 9001 accredited production facilities. They use Atlas ’s proven, superior turbo technology and over-sized cooling for the highest efficiency and reliability, AGMA class A4/ISO 1328 class 4 gears for low noise and vibrations, high-grade stainless steel coolers for very long lifetime, and an integrated lubrication system. The result is the highest reliability you need.



Proven turbo power
Your application deserves a reliable supply of oil-free compressed air at the lowest energy cost. Atlas has been building oil-free centrifugal compressors for process and plant air applications for decades.



Driving down energy costs
Superior oil-free turbo air ends provide the optimum combination of a high flow with low energy consumption. Ample sized cooling, low pressure drops and an efficient drive train result in high compressor package efficiency. Further energy savings are possible with Atlas ’s
heat of compression MD, ND and XD dryers. Assuring your peace of mind From the factory to the field, Atlas has the expertise and products, service and support to meet customer demands. Through interaction and dedicated service during all stages of the process, Atlas has accomplished a broad customer base around the world. Hundreds of thousands of unfailing running hours give proof of our long-term local and global service and support commitment to engineering companies and contractors as well as end customers.

Keeping your production up and running.

ZH+&ZH630-1600 Centrifugal Oil Free Atlas Screw Air Compressor For Textiles Mat Food Electronics 0

Application:



Electronics
• Clean, dry, high-quality air (Class 0) is essential, produced with optimal energy efficiency.
• Applications include the removal of microscopic debris from the surfaces of computer chips and computer boards.



Textiles
• Class 0 certified air quality for the highly sensitive production processes in the textile industry.
• Applications include spinning, weaving, dyeing, texturizing, winding and coning.



Metal manufacturing
• Reliable compressors are essential for your demanding metal manufacturing applications.
• Atlas provides a complete, ready-to-use solution including all components and options with low service cost.

ZH+&ZH630-1600 Centrifugal Oil Free Atlas Screw Air Compressor For Textiles Mat Food Electronics 1
Food & beverage
• Your reputation is at stake so you can’t afford to compromise on product quality.
• Applications: Instrument air, cleaning air, food storage, cooling and spraying, filling and capping.



Class 0: the industry standard
Oil-free air is used in all kinds of industries where air quality is paramount for the end product and production process. These applications include food and beverage processing, pharmaceutical manufacturing and packaging, chemical and petrochemical processing, semiconductor and electronics manufacturing, the medical sector, automotive paint spraying, textile manufacturing and many more. In these critical environments, contamination by even the smallest quantities of oil can result in costly production downtime and product spoilage.

ZH+&ZH630-1600 Centrifugal Oil Free Atlas Screw Air Compressor For Textiles Mat Food Electronics 2
First in oil-free air technology
Over the past sixty years Atlas has pioneered the development of oil-free air technology, resulting in a range of air compressors and blowers that provide 100% pure, clean air. Through continuous research and development, Atlas achieved a new milestone, setting the standard for air purity as the first manufacturer to be awarded ISO 8573-1 CLASS 0 certification.

ZH+&ZH630-1600 Centrifugal Oil Free Atlas Screw Air Compressor For Textiles Mat Food Electronics 3 ZH+&ZH630-1600 Centrifugal Oil Free Atlas Screw Air Compressor For Textiles Mat Food Electronics 4



ZH+&ZH630-1600 Centrifugal Oil Free Atlas Screw Air Compressor For Textiles Mat Food Electronics 5

ZH + & ZH 630-1600

1, Plug-and-play packaged solution

• All-in-one solution: fault-free installation, easy commissioning and quick start-up.
• Includes core compressor and integrated air inlet system, coolers, blow-off valve and silencer, drive motor, complete lub oil system and control system.

2, Efficient inlet filter and silencer

• Protects the compression stages and reduces the noise level.
• Pressure drop indication on the control panel to monitor best performance.

3, On skid blow-off valve and silencer

• No additional piping or mounting, no external air required.
• Auto-dual and Constant Pressure Control modes for cost-efficient variable compressed air demands.

4, Easy to connect cooling water manifold

• One connection serves intercoolers, aftercooler, oil cooler and main motor.
• Individual flow adjustment for intercoolers and aftercooler.

5, Small footprint
• Lowest footprint on the market in their range.
• Saves valuable and often expensive floor space in a facility.

6, Sound attenuating enclosure
Ensures optimal working conditions for everyone
in the immediate environment

7, Intelligent Inlet Guide Vanes controls

• Accurate servo-motor-driven positioning ensures stable behavior even under agile compressed air demands and large turndowns.
• Reliable, smart and efficient capacity control saving up to 9% energy at reduced compressed air demand.

8, Easy preventive maintenance access

• Horizontally-split gearbox, with quick access to major rotating components.
• Short inspection and maintenance times.

9, Compact state-of-the-art coolers

• Separately mounted for increased reliability and easier maintenance.
• Epoxy coated air path for increased corrosion resistance.
• Stainless steel tubing for straightforward cleaning.
• Compact and efficient design with low approach temperature and pressure drop.

10, On board full oil lubrication system

• Includes oil reservoir with heater, temperature monitoring and level sight glass.
• Main shaft driven oil pump, supported by auxiliary oil pump during start-up and coast-down.
• Breather system preventing oil fumes.
• Flexible leak free connections.

11, Silent care-free high efficiency main motor• Air and water-cooled (IP55) variant.
• Simplifies on-site installation (no need for cooling air ducts).
• Low noise emission.



ZH+&ZH630-1600 Centrifugal Oil Free Atlas Screw Air Compressor For Textiles Mat Food Electronics 6

ZH+&ZH630-1600 Centrifugal Oil Free Atlas Screw Air Compressor For Textiles Mat Food Electronics 7
