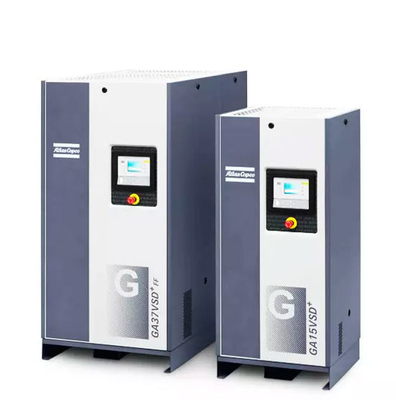

70kw VSD Plus Atlas Screw Air Compressor GA37-110VSD+ Frequency Conversion

I'm Online Chat Now

70kw VSD Plus Atlas Screw Air Compressor GA37-110VSD+ Frequency Conversion

70kw VSD Plus Atlas Screw Air Compressor GA37-110VSD+ Frequency Conversion
70kw VSD Plus Atlas Screw Air Compressor GA37-110VSD+ Frequency Conversion

Large Image :  70kw VSD Plus Atlas Screw Air Compressor GA37-110VSD+ Frequency Conversion

Product Details:
Place of Origin: China
Brand Name: Atlas
Certification: ISO 8573-1 CLASS 0
Model Number: VSD+GA37~75L
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: be negotiated
Packaging Details: Atlas standard packing
Delivery Time: 7~30days
Payment Terms: L/C, T/T, D/A, Western Union, D/P
Supply Ability: 100pcs per month

70kw VSD Plus Atlas Screw Air Compressor GA37-110VSD+ Frequency Conversion

Description
Material: Aluminum Alloy Model: VSD+GA37~75L
Type: Frequency Conversion Brand: Atlas
Power: 70kw Motor: Interior Permanent Magnet (iPM)
High Light:

70kw Atlas Vsd Air Compressor

,

GA37L Atlas VSD Air Compressor

,

GA75L Atlas Vsd Compressor

ATLAS VSD PLUS GA37-110 VSD+ ROTARY SCREW FREQUENCY CONVERSION AIR COMPRESSOR



Innovative
Atlas has revolutionized compressor build and performance. Instead of the normalspace-taking horizontal design, the new
GA 37-110 VSD + has an upright, compact layout. This saves valuable floor and work space, eases maintenance access, and reduces the total cost of ownership for all customers.

70kw VSD Plus Atlas Screw Air Compressor GA37-110VSD+ Frequency Conversion 0

Reliable
• Our Neos inverter, developed in-house to maximize compressor reliability, is built to provide extra protection against dust and other particles.
• Completely enclosed frequency drive and drive train ensure performance even in the harshest environments.
• Based on the unique combination of proven technologies and existing components, optimally brought together by Atlas ’s experience and know-how.





specifications

Type Presure Air capacity Motor power Noise Weight Weight WorkPlace Full Feature Outlet
bar(e) psig l/s m²/min cfm kw hp dB(A) kg kg
GA37VSD+ 4 58 14.8-116.4 0.89-6.99 31.4-246.8 37 50 67 376 500 G1"F
7 102 14.8-114.8 0.89-6.89 31.4-243.1 37 50 67 376 500
9.5 138 17.1-102.1 1.03-6.13 36.2-216.3 37 50 67 376 500
12.5 181 16.4-86.6 0.98-5.20 34.6-183.4 37 50 67 376 500
GA45VSD+ 4 58 26-157 1.55-9.42 55-333 45 60 67 860 1060 G2"F
7 102 25-155 1.49-9.28 55-328 45 60 67 860 1060
9.5 138 25-136 1.48-8.13 53-287 45 60 67 860 1060
12.5 181 38-113 2.28-6.80 81-240 45 60 67 860 1060
GA55VSD+ 4 58 26-189 1.53-11.33 54-400 55 75 67 900 1100 G2"F
7 102 26-188 1.53-11.28 54-399 55 75 67 900 1100
9.5 138 26-166 1.55-9.97 55-352 55 75 67 900 1100
12.5 181 40-140 2.42-8.40 85-297 55 75 67 900 1100
GA75VSD+ 4 58 26-226 1.53-13.58 54-480 75 100 70 900 1100 G2"F
7 102 26-224 1.60-13.45 52-465 75 100 70 900 1100
9.5 138 24-193 1.45-11.60 51-410 75 100 70 900 1100
12.5 181 39-162 2.35-9.73 83-343 75 100 70 900 1100
GA75VSD++ 4 58 47-269 2.83-16.12 100-569 75 100 73 1207 1496 G2 1/2"F
7 102 48-269 2.87-16.02 101-565 75 100 73 1207 1496
9.5 138 58-235 3.50-14.12 124-498 75 100 73 1207 1496
12.5 181 70-194 4.20-11.65 149-411 75 100 73 1207 1496
GA90VSD+ 4 58 48-311 2.83-18.68 102-660 90 125 74 1213 1503 G2 1/2"F
7 102 49-306 2.93-18.35 104-648 90 125 74 1213 1503
9.5 138 60-269 3.58-16.15 127-570 90 125 74 1213 1503
12.5 181 71-218 4.25-13.07 150-461 90 125 74 1213 1503
GA110VSD+ 4 58 47-348 2.83-20.85 100-736 110 150 76 1222 1537 G2 1/2"F
7 102 49-345 2.92-20.68 103-731 110 150 76 1222 1537
9.5 138 59-309 3.52-18.52 124-654 110 150 76 1222 1537
12.5 181 71-268 4.23-16.08 150-568 110 150 76 1222 1537





Smart
• Easy monitoring and maintenance thanks to the Elektronikon ® Touch controller.
• Maintenance notifications and machine status are available via SMARTLINK e-mail or text messages.
• Customized reports on the energy performance of your machine, in compliance with ISO 50001.

70kw VSD Plus Atlas Screw Air Compressor GA37-110VSD+ Frequency Conversion 170kw VSD Plus Atlas Screw Air Compressor GA37-110VSD+ Frequency Conversion 2







VSD + for 50% average energy savings

70kw VSD Plus Atlas Screw Air Compressor GA37-110VSD+ Frequency Conversion 3

Atlas ’s GA Variable Speed Drive + (VSD + ) technology closely matches the air demand by automatically adjusting the motor speed. Combined with the innovative design of the iPM (Permanent Magnet) motor, this results in average energy savings of 50% and an average reduction of 37% in the lifecycle cost of a compressor.






Why Atlas Variable Speed Drive + technology?
• On average 50% energy savings with an extensive flow range (20-100%).
• Integrated Elektronikon ® Touch controller controls the motor speed and high-efficiency frequency inverter.
• No wasted idling times or blow-off losses during operation.
• Compressor can start/stop under full system pressure without the need to unload.
• Eliminates peak current penalty during start-up.
• Minimizes system leakage due to a lower system pressure.
• EMC compliance to directives (2004/108/EG).
* Compared to fixed speed compressors, based on measurement performed by an independent energy audit agency.
