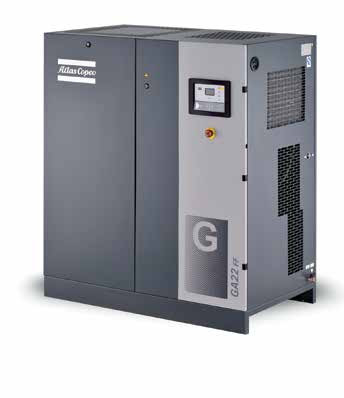

Ga30+-90 Oil-Injected Rotary Atlas Screw Air Compressor Atlas GA Series

Ga30+-90 Oil-Injected Rotary Atlas Screw Air Compressor Atlas  GA Series
Ga30+-90 Oil-Injected Rotary Atlas Screw Air Compressor Atlas  GA Series
Ga30+-90 Oil-Injected Rotary Atlas Screw Air Compressor Atlas  GA Series Ga30+-90 Oil-Injected Rotary Atlas Screw Air Compressor Atlas  GA Series

Large Image :  Ga30+-90 Oil-Injected Rotary Atlas Screw Air Compressor Atlas GA Series

Product Details:
Place of Origin: China
Brand Name: Atlas
Certification: ISO 8573-1 CLASS 0
Model Number: GA30+-90
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: be negotiated
Packaging Details: Atlas standard packing
Delivery Time: 7~30days
Payment Terms: L/C, T/T, D/A, Western Union, D/P
Supply Ability: 100pcs per month

Ga30+-90 Oil-Injected Rotary Atlas Screw Air Compressor Atlas GA Series

Description
Material: Aluminum Alloy Model: GA30+
Power: 30kw Brand: Atlas
Type: Oil-injected System: SIL Smart Inlet Lock System
Highlight:

Ga90 Oil-Injected Rotary Screw Air Compressor

,

Ga90 Oil-Injected Rotary Screw Air Compressor

,

Ga90 Atlas GA Series

GA 30+-90 Premium Compressor

GA30-90_Wuxi.pdf

• High performance Free Air Delivery.
• Premium quality at the lowest initial investment.
• Integrated refrigerant dryer.
• Standard Elektronikon ® controller (optional Touch controller).

Ga30+-90 Oil-Injected Rotary Atlas Screw Air Compressor Atlas  GA Series 0

(A)

Integrated highly efficient R410A dryer
• Excellence in air quality.
• 50% reduction in energy consumption compared to traditional dryers.
• Zero ozone depletion.
• Incorporates optional UD + filter according to Class 1.4.2.

(B)

NEOS drive
• Atlas ’s in-house designed inverter for GA VSD compressors.
• IP5X protection degree.
• A robust, aluminum enclosure for trouble-free operation in the harshest conditions.
• Fewer components: compact, simple and user-friendly.

(C)

Cubicle cooling booster
• Cubicle in overpressure minimizes ingress of conductive dust.
• Electrical components remain cool, enhancing lifetime of components.

(D)

Elektronikon ® for remote monitoring
• Integrated smart algorithms reduce system pressure and energy consumption.
• Monitoring features include warning indications, maintenance scheduling and online visualization of machine’s condition.

(E)

Heavy-duty air intake filter
• Protects the compressor components by removing 99.9% of dirt particles down to 3 microns.
• Differential inlet pressure for proactive maintenance while minimizing pressure drop.



Advanced Elektronikon ® Touch controller
• Improved user-friendliness: 4.3-inch high-definition color display with clear pictograms and service indicator.
• Internet-based compressor visualization using a simple Ethernet connection.
• Increased reliability: new, user-friendly, multilingual user interface.


Key features:
• Automatic restart after voltage failure.
• Built-in SMARTLINK online monitoring.
• Dual pressure set point.
• More flexibility: four different week schedules that can be programmed for a period of 10 consecutive weeks.
• On-screen Delayed Second Stop function and VSD savings indication.
• Graphical service plan indication.
• Remote control and connectivity functions.
• Software upgrade available to control up to 6 compressors by installing the optional integrated compressor controller.

Ga30+-90 Oil-Injected Rotary Atlas Screw Air Compressor Atlas  GA Series 1



Flow charts
Variable Speed Drive: GA VSD

Ga30+-90 Oil-Injected Rotary Atlas Screw Air Compressor Atlas  GA Series 2

Fixed speed: GA+ & GA

Ga30+-90 Oil-Injected Rotary Atlas Screw Air Compressor Atlas  GA Series 3



The ultimate smart solution, driven by efficiency
Atlas ’s GA 30+-90 compressors bring you outstanding sustainability, reliability and performance, while minimizing the total cost of ownership. A choice of three premium compressor types (GA VSD, GA+ and GA) provides you with the compressed air solution that perfectly matches your requirements with clear value propositions. Built to perform even in the harshest environments, these compressors keep your productionrunning efficiently.

Ga30+-90 Oil-Injected Rotary Atlas Screw Air Compressor Atlas  GA Series 4







Ga30+-90 Oil-Injected Rotary Atlas Screw Air Compressor Atlas  GA Series 5


1,Maintenance-free drive system
• 100% maintenance-free; totally enclosed and protected against dirt and dust.
• Suitable for harsh environments.
• High-efficiency drive arrangement; no coupling or slippage losses.
• Standard up to 46°C/115°F and for high ambient version 55°C/131°F.





2,IE3 Premium Efficiency electrical motors
• IP55, insulation Class F, B rise.
• Non-drive side bearing greased for life.
• Oil lubricated drive side bearings.





3,Robust spin-on oil filter
• High-efficiency, removing 300% smaller
particles than a conventional filter.
• Integrated bypass valve with the oil filter.





4,Separate oversized oil cooler and aftercooler
• Low element outlet temperatures, ensuring long oil lifetime:• Removal of nearly 100% condensate by mechanical separator.
• No consumables.
• Eliminates possibility of thermal shocks in coolers.





5,Advanced control & monitoring via Elektronikon®
• Integrated smart algorithms reduce system pressure and energy consumption.
• Monitoring features include warning indications,maintenance scheduling and online visualization of machine’s condition.





6,Heavy-duty air intake filter
• Protects the compressor components by removing 99.9% of dirt particles down to 3 microns.
• Differential inlet pressure for proactive maintenance while minimizing pressure drop.





7,Electronic no-loss water drain(optional)
• Ensures constant removal of condensate.
• Manual integrated bypass for effective condensate removal in case of power failure.
• Integrated with compressor’s Elektronikon® with warning/alarm features.





8,Radial fan
• Low noise level. • High flows.
• Compact design.





9,Integrated highly efficient R410A dryer
• Excellence in air quality.
• 50% reduction in energy consumption compared to traditional dryers.
• Zero ozone depletion.
• Incorporates optional UD+ filter according to Class 1.4.2.

Ga30+-90 Oil-Injected Rotary Atlas Screw Air Compressor Atlas  GA Series 6
